GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard

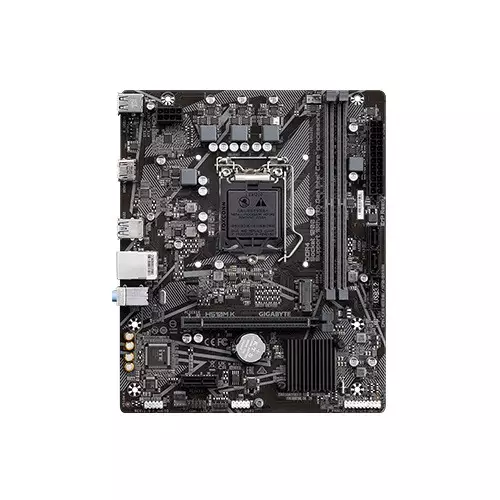

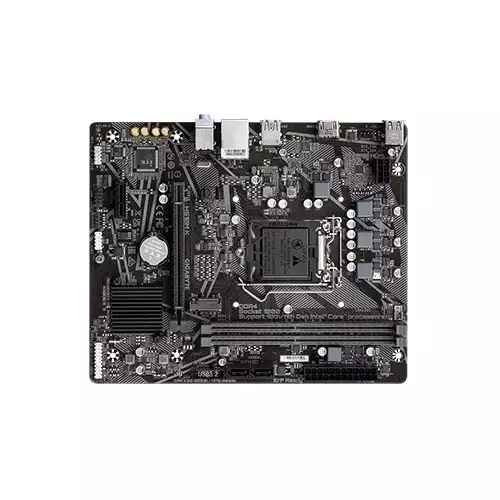

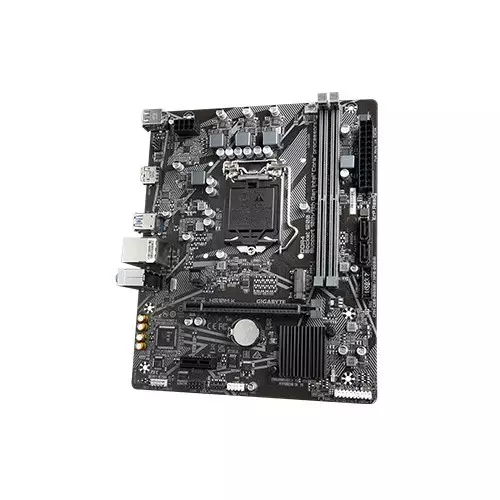

GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard - 1 GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard - 2 GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard - 3
Discount Tag

GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506399
Brand : Gigabyte
Model : H510M K
Warranty : 3 years
  • Type: DDR4
  • Slots: 2 x DDR4 DIMM
  • Chipset: Intel H510
  • Form Factor: mATX

    • Product Pricing

    Discount Price

    ৳10,200 ৳10,500
    + Available Payment Method

    EMI Start From*

    ৳359

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU LGA1200 package:

    11th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors

    10th Generation Intel® Core i9 processors/Intel Core i7 processors/Intel Core i5 processors/Intel® Core i3
    processors/Intel Pentium processors/Intel Celeron processors

    L3 cache varies with CPU

    Mainboard

    BIOS 1 x 128 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory 11th Generation Intel Core i9/i7/i5 processors:

    Support for DDR4 3200/3000/2933/2666/2400/2133 MT/s memory modules

    10th Generation Intel Core i9/i7 processors:

    Support for DDR4 2933/2666/2400/2133 MT/s memory modules

    10th Generation Intel Core i5/i3/Pentium/Celeron processors:

    Support for DDR4 2666/2400/2133 MT/s memory modules

    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Storage

    Storage 1 x M.2 connector:

    Socket 3, M key, type 2280 PCIe 3.0 x4/x2 SSD

    2 x SATA 6Gb/s connectors

    Graphics

    Graphics Integrated Graphics Processor-Intel® HD Graphics support:

    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

    * Support for HDMI 1.4 version and HDCP 2.3.

    Networking & Connectivity

    LAN Realtek GbE LAN chip (1 Gbps/100 Mbps)

    Audio & Microphone

    Audio Realtek Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel
    audio, access the audio software for audio settings.

    Ports

    I/O Port 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    1 x system fan header

    1 x RGB LED strip header

    1 x M.2 Socket 3 connector

    2 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB 3.2 Gen 1 header

    1 x USB 2.0/1.1 header

    1 x serial port header

    1 x Clear CMOS jumper

    Back Panel Connectors

    1 x HDMI port

    2 x USB 3.2 Gen 1 ports

    4 x USB 2.0/1.1 ports

    1 x RJ-45 port

    3 x audio jacks
    USB 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)

    6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

    Special Features

    Speacial Features Support for APP Center

    * Available applications in APP Center may vary by motherboard model. Supported functions of each
    application may also vary depending on motherboard specifications.

    @BIOS

    Ambient LED

    EasyTune

    ON/OFF Charge

    Smart Backup

    System Information Viewer

    Support for Q-Flash

    Support for Xpress Install
    Software Norton Internet Security (OEM version)

    LAN bandwidth management software

    Physical Specification

    Expansion Slots 1 x PCI Express x16 slot:

    Supporting PCIe 4.0 and running at x16

    (PCIe 4.0 is only supported by 11th Generation processors.)

    Chipset:

    1 x PCI Express x1 slot, supporting PCIe 3.0 and running at x1
    Form Factor Micro ATX Form Factor; 22.6cm x 18.5cm
    Form Factor ATX

    Technical Info

    OS Support for Windows 11 64-bit

    Support for Windows 10 64-bit

    Warranty Information

    Warranty 3 Years

    PRODUCT DESCRIPTION

    GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard in Bangladesh


    Technical Details

    The GIGABYTE H510M K Micro ATX Motherboard is designed to support 11th and 10th Generation Intel® Core™ processors, including i9, i7, i5, i3, Pentium, and Celeron processors with an LGA1200 socket. It incorporates the Intel® H510 Express Chipset and supports up to 64 GB of DDR4 memory across two DIMM slots. For onboard graphics, it offers an HDMI port with a maximum resolution of 4096x2160@30 Hz, depending on CPU support. The motherboard features Realtek® Audio CODEC for high-definition audio and Realtek® GbE LAN for network connectivity. Expansion slots include one PCIe 4.0 x16 slot (for 11th Gen processors) and one PCIe 3.0 x1 slot. Storage options include one M.2 connector and two SATA 6Gb/s connectors. USB connectivity is provided through four USB 3.2 Gen 1 ports and six USB 2.0/1.1 ports. Additional features include support for RGB LED strips, multiple internal I/O connectors, and comprehensive BIOS support.


    Availability and Usability

    The GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard is available at Tech Land BD. This motherboard is perfect for building a powerful and versatile PC that meets modern computing needs. It supports the latest Intel processors and offers robust connectivity options, making it suitable for both gaming and professional use. With its advanced features and reliable performance, the GIGABYTE H510M K ensures a seamless and efficient computing experience. Check the "GIGABYTE H510M K Price in BD" at Tech Land BD to get this high-performance motherboard at a competitive price.


    Highlights

    • Supports 11th and 10th Gen Intel Core processors
    • Dual-channel DDR4 memory support
    • PCIe 4.0 and PCIe 3.0 expansion slots
    • Realtek High Definition Audio
    • Comprehensive connectivity with multiple USB ports


    Don't Miss Out on the GIGABYTE H510M K at Tech Land BD!

    Upgrade your PC with the powerful and reliable GIGABYTE H510M K 11th Gen DDR4 Micro ATX Motherboard, available now at Tech Land BD. This motherboard is perfect for those looking to build a high-performance system, offering excellent support for the latest Intel processors and a range of connectivity options. With features like dual-channel memory support, PCIe 4.0 expansion, and high-definition audio, it is designed to meet all your computing needs. Don't wait—secure your GIGABYTE H510M K today and enjoy top-notch performance and reliability. Check the GIGABYTE H510M K Price in Bangladesh at Tech Land BD and make your purchase now!
