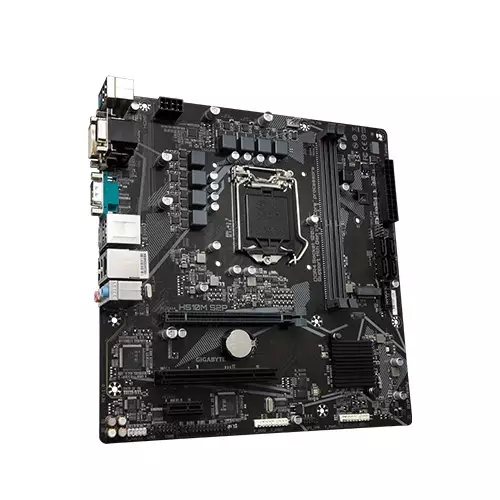

Gigabyte H510M S2P 11th Gen Micro ATX Motherboard
Gigabyte H510M S2P 11th Gen Micro ATX Motherboard Gigabyte H510M S2P 11th Gen Micro ATX Motherboard - 1 Gigabyte H510M S2P 11th Gen Micro ATX Motherboard - 2
Discount Tag

Gigabyte H510M S2P 11th Gen Micro ATX Motherboard

0 Reviews
Stock : Up Coming
PID : P0392506129
Brand : Gigabyte
Model : H510M S2P
Warranty : 3 years
  • Supports 11th and 10th Gen Processors
  • Dual-Channel DDR4, 2 DIMMs
  • Ultra-Fast M.2 with PCIe Gen3 x4 & SATA
  • GIGABYTE Exclusive 8118 Gaming LAN

    • PRODUCT SPECIFICATIONS

    Processor

    Supported CPU
    LGA1200 package:
    11th Generation Intel Core i9 processors / Intel Core™ i7 processors / Intel® Core™ i5 processors
    10th Generation Intel® Core™ i9 processors / Intel® Core™ i7 processors / Intel® Core™ i5 processors / Intel® Core™ i3 processors/ Intel® Pentium® processors / Intel® Celeron® processors*
    L3 cache varies with CPU

    Mainboard

    Chipset Intel H510 Express Chipset
    BIOS 2 x 256 Mbit flash
    Use of licensed AMI UEFI BIOS
    Support for DualBIOS
    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory 11th Generation Intel® Core™ i9/i7/i5 processors:
    Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules
    10th Generation Intel® Core™ i9/i7 processors:
    Support for DDR4 2933/2666/2400/2133 MHz memory modules
    10th Generation Intel® Core™ i5/i3/Pentium®/Celeron® processors:
    Support for DDR4 2666/2400/2133 MHz memory modules
    2 x DDR4 DIMM sockets supporting up to 64 GB (32 GB single DIMM capacity) of system memory
    Dual-channel memory architecture
    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    Support for Extreme Memory Profile (XMP) memory modules

    Storage

    Supported Storage Chipset:
    1 x M.2 connector (Socket 3, M key, type 2260/2280 SATA and PCIe 3.0 x2 SSD support)
    4 x SATA 6Gb/s connectors

    Graphics

    Graphics Integrated Graphics Processor-Intel® HD Graphics support:
    1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    1 x HDMI port, supporting a maximum resolution of 4096x2160@30 Hz

    Networking & Connectivity

    LAN Realtek GbE LAN chip (1 Gbit/100 Mbit)

    Audio & Microphone

    Audio Realtek audio codec
    High Definition Audio
    2/4/5.1/7.1-channel

    Ports

    Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)
    1 x PCI Express x1 slot (PCIEX1)
    (The PCIEX1 slot conforms to PCI Express 3.0 standard.)
    1 x PCI slot
    Internal I/O Ports 1 x 24-pin ATX main power connector
    1 x 8-pin ATX 12V power connector
    1 x CPU fan header
    1 x system fan header
    1 x M.2 Socket 3 connector
    4 x SATA 6Gb/s connectors
    1 x front panel header
    1 x front panel audio header
    1 x USB 3.2 Gen 1 header
    2 x USB 2.0/1.1 headers
    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
    1 x serial port header
    1 x parallel port header
    1 x speaker header
    1 x Clear CMOS jumper
    External I/O Ports 1 x PS/2 keyboard/mouse port
    1 x D-Sub port
    1 x DVI-D port
    1 x serial port
    1 x HDMI port
    2 x USB 3.2 Gen 1 ports
    4 x USB 2.0/1.1 ports
    1 x RJ-45 port
    3 x audio jacks
    USB
    Chipset:
    4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header)
    5 x USB 2.0/1.1 ports (8 ports on the back panel, 1 port available through the internal USB header)
    Chipset+USB 2.0 Hub:
    3 x USB 2.0/1.1 ports available through the internal USB headers

    Physical Specification

    Form Factor Micro ATX Form Factor
    Dimension 24.4cm x 21.0cm

    Warranty Information

    Warranty 03 Years

    PRODUCT DESCRIPTION

    Gigabyte H510M S2P Micro ATX Motherboard in Bangladesh

    Get gaming-level performance and DisplayPort connectivity with the H510M S2P Micro-ATX Motherboard from Gigabyte. Utilizing the Intel H510 Express Chipset chipset, this motherboard is meant to be used with CPUs that support the intel socket. Install up to 64GB of dual-channel DDR4 RAM across four slots. Storage drives are often installed using four SATA III connectors or an M.2 slot.

    A rear I/O panel sports four USB 3.2 Gen 1 and two USB 2.0 ports, also as a PS/2 combo port for connecting legacy mice or keyboards. DisplayPort, HDMI, and DVI-D outputs accommodate displays, while an RJ45 port supports Gigabit Ethernet. Three 3.5mm audio ports also are present on the rear panel. The Gigabyte H510M S2P  Micro-ATX Motherboard utilizes the Realtek audio codec and supports Windows 10 64-bit operating systems.

    BIOS

    The BIOS is essential for users during initial setup to allow for the most optimal settings. Gigabyte H510M S2P  With a new GUI and easier-to-use functionalities, Gigabyte H510M S2P has been able to reinvent the BIOS to give users a better experience while setting up their new system.
