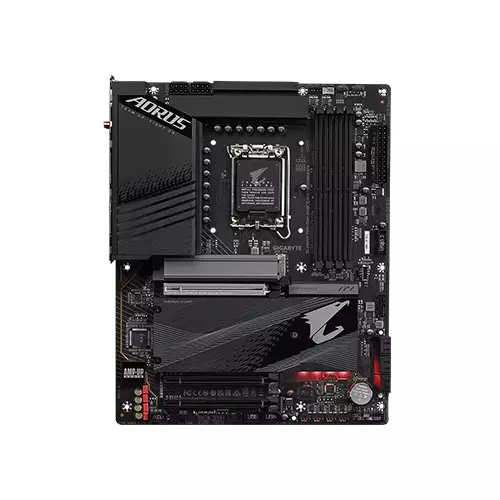

GIGABYTE Z790 AORUS ELITE AX DDR5 13TH GEN MOTHERBOARD
GIGABYTE Z790 AORUS ELITE AX DDR5 13TH GEN MOTHERBOARD GIGABYTE Z790 AORUS ELITE AX DDR5 13TH GEN MOTHERBOARD - 1 GIGABYTE Z790 AORUS ELITE AX DDR5 13TH GEN MOTHERBOARD - 2 GIGABYTE Z790 AORUS ELITE AX DDR5 13TH GEN MOTHERBOARD - 3

GIGABYTE Z790 AORUS ELITE AX DDR5 13TH GEN MOTHERBOARD

1 Reviews
Stock : In Stock
PID : P0392506252
Brand : Gigabyte
Model : Z790 AORUS ELITE AX
Warranty : 3 Years
  • Z790 AORUS ELITE AX
  • Form Factor ATX
  • CPU Socket 1700
  • Chipset Intel Z790

    • ⌨️ PC BUILD + FREE KL-139 KEYBOARD

    Product Pricing

    Discount Price

    ৳40,000 ৳41,000
    + Available Payment Method

    EMI Start From*

    ৳1,408

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors

    L3 cache varies with CPU

    Mainboard

    Chipset Intel® Z790 Express Chipset
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) /
    5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

    4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Storage

    Supported Storage 2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

    1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

    6 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

    Graphics

    Graphics Integrated Graphics Processor-Intel HD Graphics support:

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.0 version and HDCP 2.3.

    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60

    * Support for DisplayPort 1.2 version and HDCP 2.3

    Networking & Connectivity

    LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    WiFi Intel Wi-Fi 6E AX211
    Bluetooth BLUETOOTH 5.3

    Audio & Microphone

    Audio Realtek® Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out

    Ports

    Slots 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    2 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1, PCIEX4_2)

    1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
    Internal I/O Ports 1 x 24-pin ATX main power connector

    2 x 8-pin ATX 12V power connectors

    1 x CPU fan header

    1 x water cooling CPU fan header

    3 x system fan headers

    1 x system fan/water cooling pump header

    2 x addressable LED strip headers

    2 x RGB LED strip headers

    4 x M.2 Socket 3 connectors

    6 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C® header, with USB 3.2 Gen 2 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    2 x Thunderbolt™ add-in card connectors

    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    1 x reset button

    1 x Q-Flash Plus button

    1 x Clear CMOS button

    1 x reset jumper

    1 x Clear CMOS jumper
    External I/O Ports 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

    2 x USB 3.2 Gen 2 Type-A ports (red)

    3 x USB 3.2 Gen 1 ports

    4 x USB 2.0/1.1 ports

    2 x SMA antenna connectors (2T2R)

    1 x HDMI 2.0 port

    1 x DisplayPort

    1 x RJ-45 port

    1 x optical S/PDIF Out connector

    2 x audio jacks
    USB 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

    1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header

    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
    HDMI 1 x HDMI 2.0 port

    Physical Specification

    Form Factor ATX Form Factor
    Dimension 30.5cm x 24.4cm

    Warranty Information

    Warranty 3 years

    PRODUCT DESCRIPTION

    GIGABYTE Z790 AORUS ELITE AX 13TH GEN MOTHERBOARD

    With the fast-moving technology changes, GIGABYTE always follows the latest trends and provides customers with advanced features and latest technologies. GIGABYTE motherboards are equipped with upgraded power solution, latest storage standards and outstanding connectivity to enable optimised performance for gaming.To ensure maximum Turbo Boost and overclocking performance of Intel's new generation CPU, GIGABYTE AORUS series motherboard equip the best VRM design ever built with the highest quality components.PCIe 5.0 Design supports double the bandwidth of PCIe 4.0 and ensures that compatible with cutting-edge SSDs and GPUs released in the next few years to their full capability.AORUS is offering a tested and proven platform that has memory overclocking capability up to 7600 and beyond. For DDR5 XMP Memory, all users need to do to attain high memory performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their AORUS motherboard.The exclusive 3 PCIe 4.0 M.2 from CPU and 2nd Generation 7000 MB/s SSD provides unparalleled Read/ Write performance up to 21053 and 15499 MB/s.GIGABYTE Motherboards unparalleled performance is guaranteed by innovative and optimised thermal design to ensure the best CPU, Chipset, SSD stability and low temperatures under full load application and gaming performance
