GIGABYTE Z790 D AX DDR5 ATX Motherboard

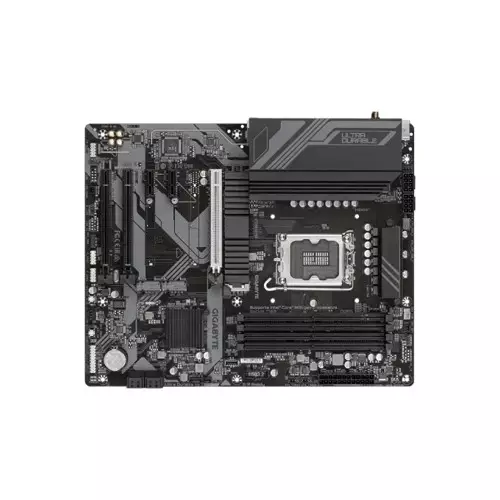

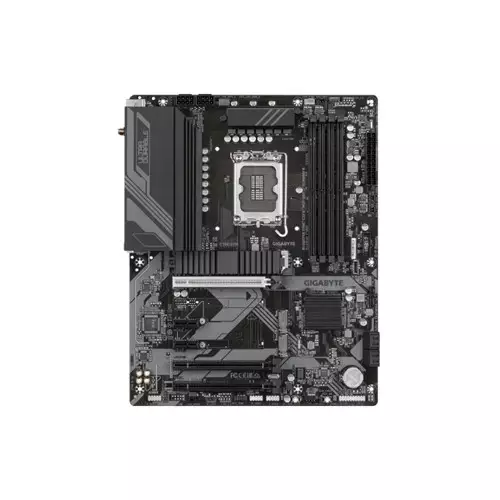

GIGABYTE Z790 D AX DDR5 ATX Motherboard GIGABYTE Z790 D AX DDR5 ATX Motherboard - 1 GIGABYTE Z790 D AX DDR5 ATX Motherboard - 2 GIGABYTE Z790 D AX DDR5 ATX Motherboard - 3 GIGABYTE Z790 D AX DDR5 ATX Motherboard - 4

GIGABYTE Z790 D AX DDR5 ATX Motherboard

2 Reviews
Stock : In Stock
PID : P0392506523
Brand : Gigabyte
Model : Z790 D AX
Warranty : 3 years
  • CPU Socket: LGA1700 socket: Support for the 14th, 13th and 12th Generation Intel Core, Pentium Gold an...
  • Chipset: Intel Z790 Express Chipset
  • BIOS: 1 x 256 Mbit flash Use of licensed AMI UEFI BIOS PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7,...
  • Memory Type: DDR5

⌨️ PC BUILD + FREE KL-139 KEYBOARD

Product Pricing

Discount Price

৳30,300 ৳35,000
+ Available Payment Method

EMI Start From*

৳1,067

PRODUCT SPECIFICATIONS

Processor

CPU Socket LGA1700 socket: Support for the 14th, 13th and 12th
Generation Intel Core, Pentium Gold
and Celeron Processors

L3 cache varies with CPU

Mainboard

Chipset Intel Z790 Express Chipset
BIOS 1 x 256 Mbit flash

Use of licensed AMI UEFI BIOS

PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

Memory

Memory Type DDR5
Expansion RAM Slot 4 x DIMM sockets
Memory 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.)
/6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) /
5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /
4800 / 4000 memory modules

Dual channel memory architecture

Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory
modules (operate in non-ECC mode)

Support for non-ECC Un-buffered DIMM
1Rx8/2Rx8/1Rx16 memory modules

Support for Extreme Memory
Profile (XMP) memory module

Storage

Supported Storage CPU:

1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

Chipset:

2 x M.2 connectors (Socket 3, M key, type 2280
PCIe 4.0 x4/x2 SSD support) (M2Q_SB, M2P_SB)

6 x SATA 6Gb/s connectors

Graphics

Graphics Integrated Graphics Processor-Intel HD Graphics support:

1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

* Support for HDMI 2.0 version and HDCP 2.3.

1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

* Support for DisplayPort 1.2 version and HDCP 2.3

Networking & Connectivity

Connectivity 1 x HDMI

1 x DisplayPort

Chipset:

1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support

1 x USB Type-C port with USB 3.2 Gen 1 support,
available through the internal USB header

1 x USB 3.2 Gen 2 Type-A port (red) on the back panel

6 x USB 3.2 Gen 1 ports (4 ports on the back panel
, 2 ports available through the internal USB header)

Chipset+2 USB 2.0 Hubs:

8 x USB 2.0/1.1 ports (4 ports on the back panel,
4 ports available through the internal USB headers)
LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless AMD Wi-Fi 6E RZ616 (MT7922A22M)

WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

BLUETOOTH 5.2

Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

Audio & Microphone

Audio 3 x audio jacks

Ports

PCI Card Slot CPU:

1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

* For optimum performance, if only one PCI
Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

Chipset:

1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

1 x PCI Express x16 slot, supporting PCIe 3.0 and running at x1 (PCIEX1_4)

2 x PCI Express x1 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_2, PCIEX1_3)

Support for AMD CrossFire technology (PCIEX16 and PCIEX4)
Internal I/O Ports 1 x 24-pin ATX main power connector

2 x 8-pin ATX 12V power connectors

1 x CPU fan header

1 x water cooling CPU fan header

3 x system fan headers

1 x system fan/water cooling pump header

2 x addressable LED strip headers

2 x RGB LED strip headers

3 x M.2 Socket 3 connectors

6 x SATA 6Gb/s connectors

1 x front panel header

1 x front panel audio header

1 x S/PDIF Out header

1 x USB Type-C header, with USB 3.2 Gen 1 support

1 x USB 3.2 Gen 1 header

2 x USB 2.0/1.1 headers

1 x serial port header

2 x Thunderbolt add-in card connectors

1 x reset button

1 x Q-Flash Plus button

1 x reset jumper

1 x Clear CMOS jumper

Software

Bundled Software Norton Internet Security (OEM version)

LAN bandwidth management software

Others

Other Features Support for GIGABYTE Control Center (GCC)

* Available applications in GCC may vary by motherboard
model. Supported functions of each application may
also vary depending on motherboard specifications.

Support for Q-Flash

Support for Q-Flash Plus

Support for Smart Backup

1 x Trusted Platform Module header
(For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

Physical Specification

Form Factor ATX Form Factor; 30.5cm x 24.4cm

Warranty Information

Warranty 03 years

PRODUCT DESCRIPTION

GIGABYTE Z790 D AX DDR5 ATX Motherboard at Tech Land BD

Tech Land BD is proud to offer the GIGABYTE Z790 D AX DDR5, a high-performance ATX motherboard designed for Intel's 12th to 14th Generation processors. This feature-packed board is built for gamers, content creators, and PC enthusiasts who demand top-tier performance and future-proof connectivity. Supporting the latest LGA1700 socket CPUs, this motherboard delivers exceptional power with its robust 16+1+2 phase VRM design, ensuring stable overclocking and efficient power delivery even under heavy workloads. The Z790 chipset provides cutting-edge features including PCIe 5.0 support for next-gen graphics cards, DDR5 memory compatibility up to 7600MHz (OC), and triple M.2 NVMe slots (PCIe 4.0 x4) for ultra-fast storage.

At Tech Land BD, we recognize the importance of seamless connectivity, which is why this motherboard comes equipped with 2.5GbE LAN, Wi-Fi 6E (6GHz), and Bluetooth 5.2 for lag-free networking. The board also includes USB 3.2 Gen 2x2 Type-C (20Gbps), multiple USB 3.2 Gen1 ports, and Realtek HD Audio with 7.1-channel support for an immersive gaming and multimedia experience. Advanced cooling solutions, including multiple fan headers and RGB Fusion 2.0 lighting control, ensure optimal thermal performance and customizable aesthetics.Whether you're building a high-end gaming rig, a content creation workstation, or a powerful overclocking setup, the GIGABYTE Z790 D AX DDR5 is an excellent choice. Available now at Tech Land BD, this motherboard comes with a 3-year warranty and expert support to help you maximize its potential.


Why Buy from Tech Land BD?

  • Competitive pricing on the latest hardware
  • Genuine products with full manufacturer warranty
  • Expert advice on component compatibility
  • Fast shipping & reliable after-sales service


Upgrade your PC with confidence – visit Tech Land BD today to check the GIGABYTE Z790 D AX DDR5 Price in Bangladesh and explore exclusive bundle deals!
