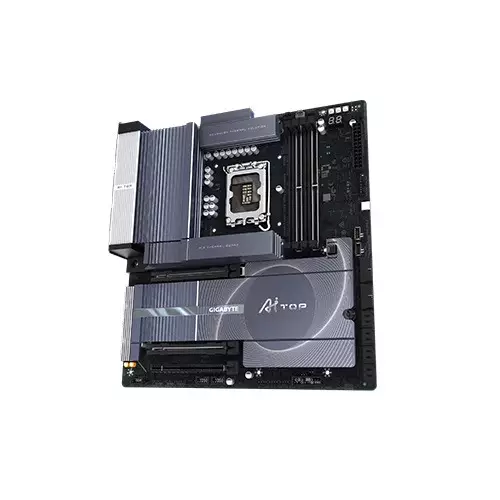

Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard
Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard - 1 Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard - 2 Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard - 3 Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard - 4 Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard - 5

Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard

2 Reviews
Stock : In Stock
PID : P0392506490
Brand : Gigabyte
Model : Z890 AI TOP
Warranty : 3-Years
  • Chipset: Intel Z890 Express Chipset
  • I/O Controller: iTE I/O Controller Chip
  • E-ATX Form Factor; 30.5cm x 28.5cm
  • WIFI7

    • 🎧 FREE HS35 V2 HEADSET WITH PC BUILD

    Product Pricing

    Discount Price

    ৳85,000 ৳89,000
    + Available Payment Method

    EMI Start From*

    ৳2,993

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU LGA1851 socket: Support for Intel Core Ultra Processors

    L3 cache varies with the CPU

    * Please refer to "CPU Support List" for more information.

    Mainboard

    Chipset Intel Z890 Express Chipset
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR5 9500(O.C)/ 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C)

    /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) /

    7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /

    6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system

    memory Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Support the CUDIMM memory module

    (The CPU and memory configuration may affect the supported memory types, and data rate

    (speed), and the number of DRAM modules, please refer to "Memory Support List" for more information.)

    Storage

    Supported Storage CPU:

    - 1 x M.2 connector (Socket 3, M key,

    type 25110/22110/2580/2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)

    - 1 x M.2 connector (Socket 3, M key,

    type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSD support) (M2B_CPU)


    Chipset:

    - 2 x M.2 connectors (Socket 3, M key,

    type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2L_SB)

    - 4 x SATA 6Gb/s connectors (SATA3 4~7)


    Chipset+ASMedia ASM1164 chip:

    - 4 x SATA 6Gb/s connectors (SATA3 0~3)

    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

    Graphics

    Graphics Integrated Graphics Processor+Intel Thunderbolt 5 Controller:

    - 2 x Intel Thunderbolt 5 connectors (USB4 USB Type-C ports),

    supporting DisplayPort and Thunderbolt video outputs and a maximum

    resolution of 7680x4320@60 Hz (single display output)

    * Because of the limited I/O resources of the PC architecture,

    the number of Thunderbolt devices that can be

    used is dependent on the number of PCI Express devices being

    installed. (Refer to Chapter 2-6, "Back Panel Connectors," for more information.)

    * Support for DisplayPort 2.1 version and HDCP 2.3




    Integrated Graphics Processor-Intel HD Graphics support:

    - 1 x Front Intel Thunderbolt 4 connector (USB4 USB Type-C port), supporting

    DisplayPort and Thunderbolt video outputs

    When a Thunderbolt monitor is installed, the maximum resolution supported is

    5120x2880@60 Hz with 24 bpp (single display output).

    When a USB4 USB Type-C monitor is installed, the maximum resolution supported is

    3840x2160@240 Hz (single display output).

    * Support for DisplayPort 2.1 version and HDCP 2.3




    - 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.



    (Graphics specifications may vary depending on CPU or graphics card support.)

    Support for up to triple-display at the same time

    Networking & Connectivity

    Wireless Connectivity Intel Wi-Fi 7 BE200

    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

    - BLUETOOTH 5.4

    - Support for 11be 320MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)

    * Wi-Fi 7 features require Windows 11 SV3 to function properly.

    (There is no support driver for Windows 10.)

    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations.
    LAN 2 x Marvell AQtion AQC113C 10GbE LAN chips

    (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)

    Audio & Microphone

    Audio ESS ES9260 CODEC (rear panel audio)

    - High Definition Audio

    - 2-channel

    Realtek ALC897 CODEC (front panel audio)

    Ports

    I/O Port I/O Controller: iTE I/O Controller Chip


    Internal I/O Connectors

    1 x 24-pin ATX main power connector

    2 x 8-pin ATX 12V power connectors

    1 x CPU fan header

    1 x CPU fan/water cooling pump header

    4 x system fan headers

    2 x system fan/water cooling pump headers

    3 x addressable RGB Gen2 LED strip headers

    1 x RGB LED strip header

    4 x M.2 Socket 3 connectors

    8 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x Intel Thunderbolt 4 connector (USB4 USB Type-C port)

    2 x USB Type-C headers, with USB 3.2 Gen 2x2 support

    2 x USB 3.2 Gen 1 headers

    2 x USB 2.0/1.1 headers

    1 x Trusted Platform Module header

    (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    1 x power button

    1 x reset button

    1 x Q-Flash Plus button

    1 x reset jumper

    1 x Clear CMOS jumper

    2 x temperature sensor headers

    1 x noise detection header
    Connector 1 x DisplayPort In port

    1 x HDMI port (Note)

    2 x audio jacks

    2 x Intel Thunderbolt 5 connectors (USB Type-C ports)

    2 x USB 3.2 Gen 1 ports

    6 x USB 3.2 Gen 2 Type-A ports (red)

    2 x antenna connectors (2T2R)

    2 x RJ-45 ports
    USB Chipset+Intel Thunderbolt 5 Controller:

    - 2 x Intel Thunderbolt 5 (USB Type-C) ports on the back panel

    *Support up to 80Gbps with Thunderbolt devices

    *Support up to 40Gbps with USB4 devices

    *Support up to 20Gbps with USB 3.2 devices



    CPU:

    - 1 x USB4 USB Type-C port onboard

    - 1 x USB Type-C port with USB 3.2 Gen 2x2 support,

    available through the internal USB header



    Chipset:

    - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB header

    - 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    - 2 x USB 3.2 Gen 1 port on the back panel



    Chipset+USB 3.2 Gen 2 Hub:

    - 4 x USB 3.2 Gen 2 Type-A ports (red) on the back panel



    Chipset+USB 3.2 Gen 1 Hub:

    - 4 x USB 3.2 Gen 1 ports available through the internal USB headers



    Chipset+USB 2.0 Hub:

    - 4 x USB 2.0/1.1 ports available through the internal USB headers

    Software

    Operating System Support for Windows 11 64-bit

    (Go to GIGABYTE's website for operating system support information.)

    Physical Specification

    Color Black
    Expansion Slots CPU:

    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x8 (PCIEX8)


    * The PCIEX8 slot shares bandwidth with the PCIEX16 slot.

    When the PCIEX8 slot is populated,

    the PCIEX16 slot operates at up to x8 mode. * The PCIEX16 and PCIEX8
    slots can only support a graphics card or an NVMe SSD.

    If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot.




    Chipset:

    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

    * The PCIEX4 slot shares bandwidth with the M2L_SB connector.

    The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector.


    Chipset:

    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

    * The PCIEX4 slot shares bandwidth with the M2L_SB connector.

    The PCIEX4 slot becomes unavailable when a device is installed in the M2L_SB connector.
    Form Factor E-ATX Form Factor; 30.5cm x 28.5cm

    Technical Info

    Brand Gigabyte
    Model Z890 AI TOP

    Warranty Information

    Warranty 3-Year

    PRODUCT DESCRIPTION

    Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard in Bangladesh

    GIGABYTE Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard is a premium, high-performance motherboard designed for enthusiasts, gamers, and professionals in Bangladesh who demand cutting-edge technology and unparalleled connectivity. Available at Tech Land BD, this motherboard is built on the Intel Z890 Express Chipset and supports the latest Intel Core Ultra Processors, ensuring exceptional processing power for gaming, content creation, and multitasking. With support for DDR5 memory speeds up to 9500 MT/s (OC) and four DDR5 DIMM sockets capable of handling up to 256GB of system memory, this motherboard delivers blazing-fast performance and future-proof scalability. The GIGABYTE Z890 AI TOP features advanced connectivity options, including Intel Thunderbolt 5 ports with up to 80Gbps bandwidth, USB4 support, and multiple USB 3.2 Gen 2x2 ports for ultra-fast data transfer. Gamers and creators will appreciate the PCIe 5.0 x16 slots for high-performance graphics cards and NVMe SSDs, as well as four M.2 connectors for PCIe 5.0 and PCIe 4.0 SSDs, ensuring lightning-fast storage and reduced load times. The motherboard also boasts Intel Wi-Fi 7 BE200 for next-gen wireless connectivity, supporting 2.4/5/6 GHz bands and Bluetooth 5.4 for seamless wireless communication. For audiophiles, the ESS ES9260 CODEC delivers high-definition 2-channel audio, while the Realtek ALC897 CODEC ensures crisp front-panel audio. With its E-ATX form factor, robust cooling options, and customizable RGB lighting, the GIGABYTE Z890 AI TOP is the ultimate choice for building a high-end gaming rig or a professional workstation. Whether you're pushing the limits of gaming, streaming, or content creation, this motherboard provides the power, speed, and connectivity you need to stay ahead.


    Does the GIGABYTE Z890 AI TOP support Wi-Fi 7?

    Yes, the motherboard features Intel Wi-Fi 7 BE200, supporting 2.4/5/6 GHz bands and offering ultra-fast wireless connectivity with Bluetooth 5.4.


    What processors are compatible with this motherboard?

    The GIGABYTE Z890 AI TOP supports Intel Core Ultra Processors with the LGA1851 socket, ensuring compatibility with the latest Intel CPUs.


    Can I use this motherboard for dual-GPU setups?

    Yes, the motherboard features PCIe 5.0 x16 slots, but note that the second slot operates at x8 mode when both are populated, making it ideal for dual-GPU configurations or NVMe SSDs.

    CUSTOMER REVIEWS

    Overall Rating

    5 out of 5 stars
    2
    Total Reviews

    Login to write a review.

    5 star
    1
    4 star
    1
    3 star
    0
    2 star
    0
    1 star
    0
    hozaifa Islam

    আমি কিছুদিন ধরে Gigabyte Z890 AI TOP ব্যবহার করছি, পারফরম্যান্স সত্যিই দারুণ। বিল্ড কোয়ালিটি, স্ট্যাবিলিটি আর Wi-Fi 7 সবকিছুই প্রত্যাশার চেয়েও ভালো লেগেছে।

    18 July, 2026

    masud rahman

    Premium feel, heavy heatsinks, and a gorgeous design. BIOS has every tweak you could want. Zero issues with thermal throttling during long sessions. Expensive, but you can tell where the money went.

    21 May, 2026

    What is the Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard Price in Bangladesh 2026 ?

    The Gigabyte Z890 AI TOP Price in BD is 85,000৳ . This Gigabyte Z890 AI TOP Intel Wi-Fi7 E-ATX Motherboard Manufacturing by Gigabyte Comes With 3-Years Warranty & Based on 2 reviews. Tech Land BD Offers you Gigabyte Z890 AI TOP by 85,000৳ and its regular price is 89,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
