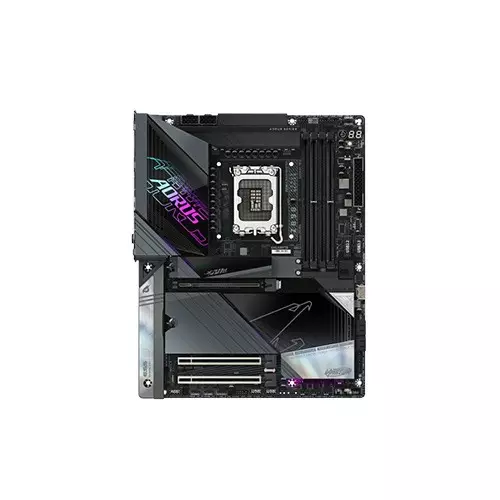

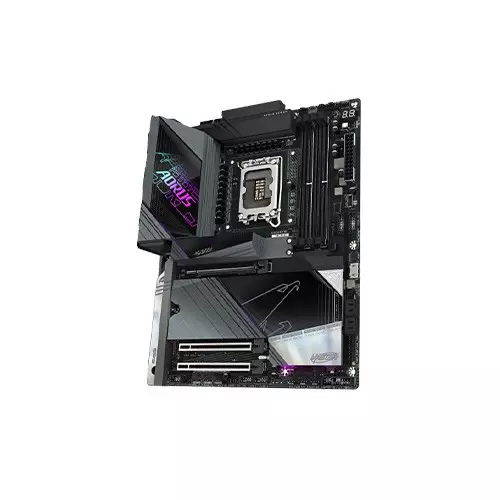

Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard
Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard - 1 Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard - 2 Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard - 3 Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard - 4 Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard - 5 Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard - 6

Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0392506430
Brand : Gigabyte
Model : Z890 AORUS Master
Warranty : 3-Years
  • Operating System - Support for Windows 11 64-bit
  • Form Factor - ATX Form Factor; 30.5cm x 24.4cm
  • Chipset - Intel Z890 Express Chipset
  • Memory - DDR5  256 GB

    • 🎧 FREE HS35 V2 HEADSET WITH PC BUILD

    Product Pricing

    Discount Price

    ৳79,000 ৳84,000
    + Available Payment Method

    EMI Start From*

    ৳2,782

    PRODUCT SPECIFICATIONS

    Processor

    CPU LGA1851 socket: Support for Intel Core Ultra Processors

    L3 cache varies with CPU

    * Please refer to "CPU Support List" for more information.

    Mainboard

    Chipset Intel Z890 Express Chipset
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR5 9500(O.C) / 9466(O.C) / 9333(O.C) / 9200(O.C)/ 9066(O.C) / 8933(O.C)
    /8800(O.C) /8600(O.C) / 8400(O.C) /8266(O.C) / 8200(O.C) / 8000(O.C) / 7950(O.C) / 7900(O.C) /
    7800(O.C) / 7600(O.C.) / 7400(O.C.) / 7200(O.C.) / 7000(O.C.) / 6800(O.C.) / 6600(O.C.) /
    6400 / 6200 / 6000 / 5800 / 5600MT/s memory modules.

    4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system
    memory

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Support CUDIMM memory module

    (The CPU and memory configuration may affect the supported memory types, data rate
    (speed), and number of DRAM modules, please refer to "Memory Support List" for more information.)

    Graphics

    Graphics Integrated Graphics Processor-Intel HD Graphics support:

    - 2 x Intel Thunderbolt 4 connectors (USB4 USB Type-C ports), supporting
    DisplayPort and Thunderbolt video outputs

    When a Thunderbolt monitor is installed, the maximum resolution supported is
    5120x2880@60 Hz with 24 bpp (single display output).

    When a USB4 USB Type-C monitor is installed, the maximum resolution
    supported is 3840x2160@240 Hz (single display output).

    * Because of the limited I/O resources of the PC architecture, the number of
    Thunderbolt devices that can be used is dependent on the number of the
    PCI Express devices being installed. (Refer to Chapter 2-6, "Back Panel
    Connectors," for more information.)

    * Support for DisplayPort 2.1 version and HDCP 2.3





    - 1 x front HDMI port, supporting a maximum resolution of 1920x1080@30 Hz

    * Support for HDMI 1.4 version.

    (Graphics specifications may vary depending on CPU support.)

    Support for up to triple-display at the same time

    Networking & Connectivity

    LAN Marvell AQtion AQC113C 10GbE LAN chip

    (10 Gbps/5 Gbps/2.5 Gbps/1 Gbps/100 Mbps)
    Wireless Intel Wi-Fi 7 BE200NGW

    - 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

    - BLUETOOTH 5.4

    - Support for 11be 320MHz wireless standard

    (Actual data rate may vary depending on environment and equipment.)

    * Wi-Fi 7 features require Windows 11 SV3 to function properly. (There is no support driver for
    Windows 10.)



    ** Wi-Fi 7 channels on 6 GHz band availability depends on individual country's regulations

    Audio & Microphone

    Audio Realtek ALC1220 CODEC

    * The front panel line out jack supports DSD audio.





    ESS ES9118 DAC chip

    Support for DTS:X Ultra

    High Definition Audio

    2/4/5.1-channel

    * You can change the functionality of an audio jack using the audio software.
    To configure 5.1-channel audio, access the audio software for audio settings.





    Support for S/PDIF Out

    Ports

    Connector 1 x Q-Flash Plus button

    1 x Clear CMOS button

    2 x Intel Thunderbolt 4 connectors (USB Type-C ports)

    6 x USB 3.2 Gen 2 Type-A ports (red)

    4 x USB 3.2 Gen 1 ports

    2 x USB 2.0/1.1 ports

    1 x RJ-45 port

    2 x antenna connectors (2T2R)

    2 x audio jacks

    1 x optical S/PDIF Out connector
    Interface Storage

    CPU:

    - 1 x M.2 connector (Socket 3, M key, type 25110/22110/2580/2280 PCIe 5.0 x4/x2
    SSD support) (M2A_CPU)

    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support)
    (M2B_CPU)

    - 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 5.0 x4/x2 SSD support)
    (M2D_CPU)

    Chipset:

    - 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support)
    (M2P_SB)

    - 1 x M.2 connector (Socket 3, M key, type 2280 SATA and PCIe 4.0 x4/x2 SSD
    support) (M2M_SB)

    - 4 x SATA 6Gb/s connectors

    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices

    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
    Internal I/O Ports 1 x 24-pin ATX main power connector

    2 x 8-pin ATX 12V power connectors

    1 x CPU fan header

    1 x CPU fan/water cooling pump header

    4 x system fan headers

    4 x system fan/water cooling pump headers

    4 x addressable RGB Gen2 LED strip headers

    1 x RGB LED strip header

    5 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C header, with USB 3.2 Gen 2x2 support

    2 x USB 3.2 Gen 1 headers

    2 x USB 2.0/1.1 headers

    1 x noise detection header

    1 x Trusted Platform Module header
    (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0/GC-TPM2.0 SPI V2 module only)

    1 x HDMI port (Note)

    1 x power button

    1 x reset button

    1 x reset jumper

    1 x Clear CMOS jumper

    2 x temperature sensor headers

    Voltage Measurement Points



    (Note) Actual support may vary by CPU
    USB CPU:

    - 2 x Intel Thunderbolt 4 (USB Type-C ports on the back panel

    *Support up to 40Gbps with Thunderbolt devices

    *Support up to 20Gbps with USB4 devices

    *Support up to 10Gbps with USB 3.2 devices



    Chipset:

    - 6 x USB 3.2 Gen 2 Type-A ports (red) on the back panel



    Chipset+USB 3.2 Gen 2x2 Hub:

    - 1 x USB Type-C port with USB 3.2 Gen 2x2 support, available through the internal USB
    header



    Chipset+2 USB 3.2 Gen 1 Hubs:

    - 8 x USB 3.2 Gen 1 ports (4 ports on the back panel, 4 ports available through the
    internal USB headers)



    Chipset+2 USB 2.0 Hubs:

    - 6 x USB 2.0/1.1 ports (2 ports on the back panel, 4 ports available through the internal
    USB headers)

    Software

    Bundled Software Norton Internet Security (OEM version)

    LAN bandwidth management software
    Operating System Support for Windows 11 64-bit

    Special Features

    Features Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model.
    Supported functions of each application may also vary depending on
    motherboard specifications.

    Support for Q-Flash

    Support for Q-Flash Plus

    Support for Smart Backup

    Others

    Controller iTE I/O Controller Chip
    Other Features Voltage detection

    Temperature detection

    Fan speed detection

    Water cooling flow rate detection

    Fan fail warning

    Fan speed control

    * Whether the fan (pump) speed control function is

    supported will depend on the fan (pump) you install.





    Noise detection

    Physical Specification

    Color Black
    Expansion Slots CPU:

    - 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one
    graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    * The PCIEX16 slot shares bandwidth with the M2D_CPU connector. The PCIEX16
    slot operates at up to x8 mode when a device is installed in the M2D_CPU
    connector.





    Chipset:

    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)

    - 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x1 (PCIEX1)
    Form Factor ATX Form Factor; 30.5cm x 24.4cm

    Technical Info

    Model Z890 AORUS Master

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION

    Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard in Bangladesh

    The Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard is a cutting-edge motherboard designed for gamers and performance enthusiasts. Built with Intel's Z890 Express Chipset, it supports Intel Core Ultra Processors, DDR5 memory modules up to 9500MT/s, and advanced connectivity options like Thunderbolt 4 and PCIe 5.0. This high-end motherboard is packed with features that ensure optimal gaming, multimedia, and professional performance, making it a popular choice among users in Bangladesh.


    Technical Details

    This motherboard is equipped with an LGA1851 socket, compatible with Intel Core Ultra Processors. It supports up to 256GB of DDR5 RAM with speeds reaching up to 9500MT/s through its four DIMM slots, perfect for demanding applications and games. The Z890 chipset also offers a range of PCIe 5.0 slots and M.2 connectors for ultra-fast SSD storage. Integrated Intel Wi-Fi 7 and Bluetooth 5.4 provide fast, reliable wireless connectivity, while the Marvell AQC113C 10GbE LAN chip ensures lightning-fast wired connections. For audio, it features Realtek ALC1220 CODEC with DTS

    Ultra support and ESS ES9118 DAC chip, delivering high-fidelity sound. With an extensive array of ports, including Thunderbolt 4 and USB 3.2, this motherboard is engineered to support the latest peripherals and future technologies seamlessly.


    Availability and Usability

    The Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard is available at Tech Land BD, a renowned electronics retailer in Bangladesh. Its advanced features make it suitable for high-end gaming, video editing, and other intensive tasks. By supporting the latest DDR5 memory, PCIe 5.0, and Wi-Fi 7, this motherboard ensures exceptional performance for gamers, content creators, and power users. Whether building a new system or upgrading an existing one, the Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard Price in BD offers great value for top-notch performance.


    Highlights

    • Supports Intel Core Ultra Processors with LGA1851 socket
    • DDR5 memory support up to 9500MT/s for lightning-fast data transfer
    • PCIe 5.0 slots for next-gen GPUs and ultra-fast NVMe SSDs
    • Integrated Intel Wi-Fi 7 and Bluetooth 5.4 for high-speed wireless connections
    • Thunderbolt 4, 10GbE LAN, and DTS
    • Ultra audio support


    Get the Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard from Tech Land BD Today!

    Looking for the ultimate performance motherboard? The Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard is the ideal choice for gamers, creators, and power users seeking unparalleled performance. Tech Land BD offers this motherboard at competitive pricing, ensuring you get the best deal on top-tier technology. With support for Intel’s latest processors, DDR5 memory, and PCIe 5.0, your system will be future-proofed for years to come. Don’t miss out on the Gigabyte Z890 AORUS Master Wi-Fi DDR5 AM5 ATX Motherboard Price in Bangladesh at Tech Land BD. Grab yours now and elevate your computing experience!
