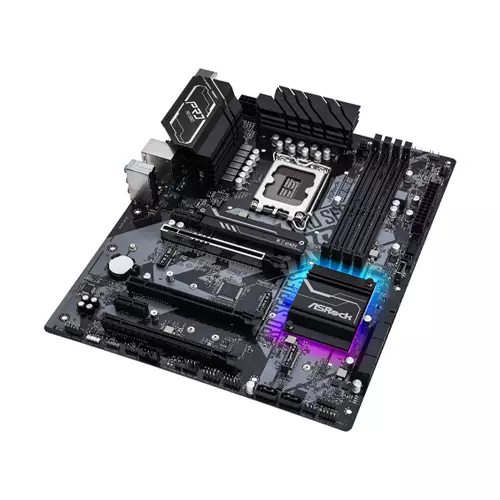

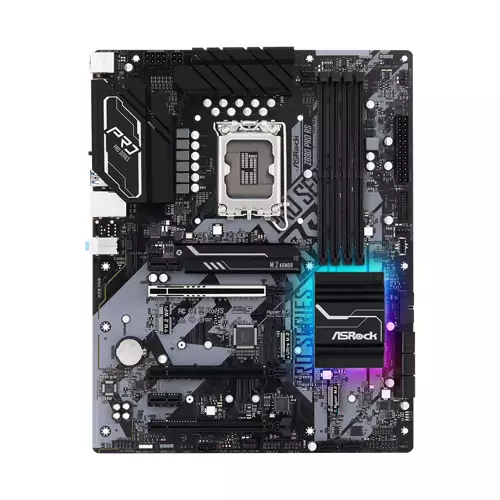

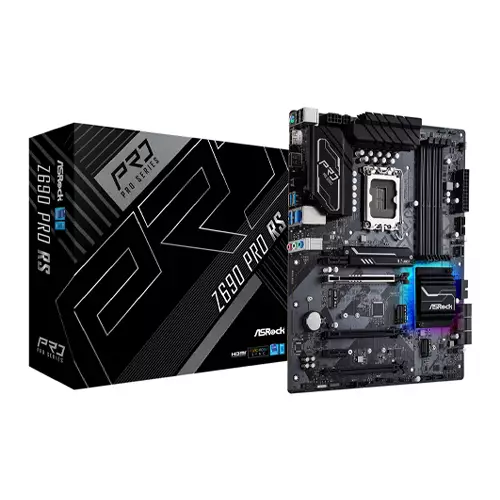

ASROCK Z690 PRO RS ATX 12TH GEN INTEL MOTHERBOARD

ASRock Z690 Pro RS Intel Motherboard in Bangladesh

The ASRock Z690 Pro RS is here to herald the arrival of the new 12th generation Intel core processors; with a new generation comes new performance thresholds and ASrock aren't shy when it comes to implementing new technologies. The Z690 RS Pro boasts a 13 phase DR. MOS power design, supports DDR4 5000 MHz (OC) memory, PCIe 5.0, incredible storage support with 2x Gen4x4 m.2 + 1x Gen3x4 m.2, Dragon 2.5G LAN, Type-C connectivity, HD audio and even includes the ASRock graphics card holder to reduce sag and protects both your GPU and slot. Plus with Polychrome RGB support you can control the built-in RGB illumination as well as syncing compatible LED illuminated devices together to create your own beautiful lighting ecosystem using the onboard RGB and ARGB headers. Perfect for daily users and enthusiasts alike Welcome the Z690 Pro RS.

DR. MOS

Dr.MOS is the integrated power stage solution which is optimised for synchronous buck-set down voltage applications! Compared to traditional discrete MOSFETs, it intelligently delivers higher current for each phase, thus providing improved thermal result and superior performance.

13 POWER PHASE DESIGN

Featuring sturdy components and completely smooth power delivery to the CPU. Plus, it offers unmatched overclocking capabilities and enhanced performance with the lowest temperature for advanced gamers as well.

SIX LAYER PCB

The 6 Layer PCB provides stable signal traces and power shapes delivering lower temperature and higher energy efficiency for memory overclocking! Thus, it's able to support the latest memory modules with most extreme memory performance!

2OZ COPPER PCB

2 ounce copper inner layers that provide stable signal traces and power shapes! Delivering lower temperature and higher energy efficiency for overclocking.

PCIE 5.0 + SURFACE-MOUNT TECH

Compared to the conventional DIP style PCIe slot, the SMT type PCIe slot improves signal flow and maximises stability under high speed, a key breakthrough to fully support the lighting speed of the latest PCIe 5.0 standard. The latest PCI Express 5.0 is capable to perform a breathtaking bandwidth of 128GBps, ready to unleash the full potential of future high end graphic cards.

PCIE GEN4 X4 FOR SSD

This motherboard is capable of accommodating multiple M.2 storage devices, two of which can support PCI Express 4.0 M.2 SSD, capable of performing at twice the speed compared to previous 3rd generation, giving a lightning fast data transferring experience.

DRAGON 2.5 GB/S LAN

The intelligent 2.5Gb/s LAN platform is built for maximum networking performance for the demanding requirements of home networking, content creators, online gamers and high-quality streaming media. Boost networking performance up to 2.5X the bandwidth compared to the standard gigabit Ethernet, you’ll enjoy the faster and uncompromised connectivity experience for gaming, file transfers and backups.

NAHIMIC AUDIO

Whether you are using headphones, a headset, external or internal speakers, via USB, Wi-Fi, analog output or even HDMI, Nahimic Audio offers you the most engaging listening experience, vibrant and rich with details. The Sound Tracker is a visual indicator that points out the directions from which predominant sounds are coming. Each sound is properly positioned in 360° on a radar for a full immersion during the game.

POLYCHROME RGB SYNC SUPPORT

In addition to the built-in RGB illumination, it also features onboard RGB headers and an addressable RGB header that allows the motherboard to be connected to compatible LED devices such as strips, CPU fans, coolers, chassis and so on. Users may also synchronise RGB LED devices across the Polychrome RGB Sync-certified accessories to create their own unique lighting effects.

Features :

• Supports 12th Gen Intel Core Processors (LGA1700)
• 13 Phase Dr.MOS Power Design
• Supports DDR4 5000MHz (OC)
• 1 PCIe 5.0 x16, 1 PCIe 4.0 x16, 1 PCIe 3.0 x16, 2 PCIe 3.0 x1
• 1 M.2 Key-E for WiFi
• Graphics Output Options: HDMI, DisplayPort
• Realtek ALC897 7.1 CH HD Audio Codec, Nahimic Audio
• 8 SATA3
• 2 Hyper M.2 (PCIe Gen4 x4)
• 1 Ultra M.2 (PCIe Gen3 x4 & SATA3)
• 1 USB 3.2 Gen2x2 Front Type-C
• 2 USB 3.2 Gen2 (Rear)
• 6 USB 3.2 Gen1 (2 Rear, 4 Front)
• Dragon 2.5G LAN
• ASRock Graphics Card Holder
