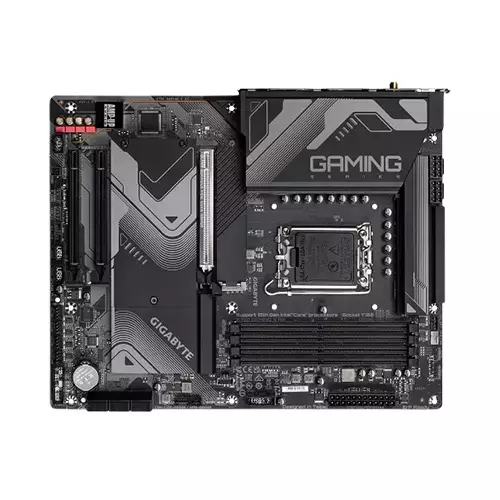

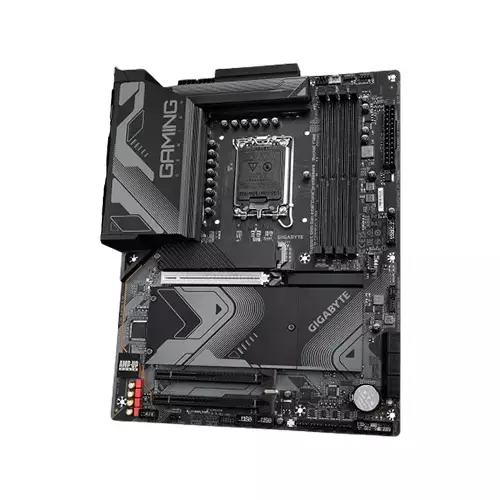

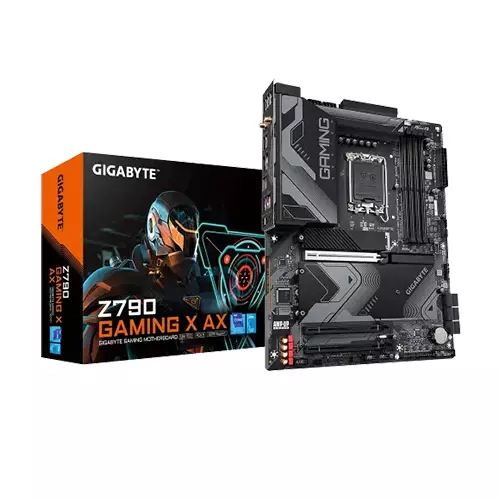

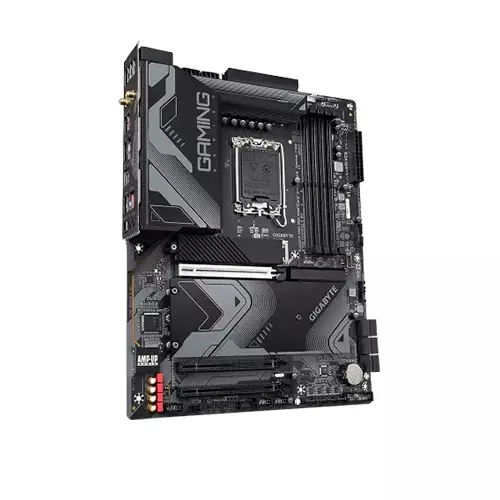

GIGABYTE Z790 GAMING X AX 13TH & 12TH GEN ATX MOTHERBOARD
GIGABYTE Z790 GAMING X AX 13TH & 12TH GEN ATX MOTHERBOARD GIGABYTE Z790 GAMING X AX 13TH & 12TH GEN ATX MOTHERBOARD - 1 GIGABYTE Z790 GAMING X AX 13TH & 12TH GEN ATX MOTHERBOARD - 2 GIGABYTE Z790 GAMING X AX 13TH & 12TH GEN ATX MOTHERBOARD - 3

GIGABYTE Z790 GAMING X AX 13TH & 12TH GEN ATX MOTHERBOARD

1 Reviews
Stock : In Stock
PID : P0392506271
Brand : Gigabyte
Model : Z790 GAMING X AX
Warranty : 3 years
  • Supported CPU: 13th Gen & 12th Gen Processors (LGA1700)
  • Supported RAM: 4 x DDR5 DIMMs, up to 7600(O.C.)
  • Graphics Output: 1 x HDMI, 1 x DisplayPort
  • Features: 2.5GbE LAN & Wi-Fi 6E 802.11ax

    • ⌨️ PC BUILD + FREE KL-139 KEYBOARD

    Product Pricing

    Discount Price

    ৳33,000 ৳38,600
    + Available Payment Method

    EMI Start From*

    ৳1,162

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU LGA1700 socket: Support for the 13th and 12th Generation Intel Core, Pentium Gold and Celeron Processors

    L3 cache varies with CPU

    Mainboard

    Chipset Intel Z790 Express Chipset
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Type: DDR5

    Slots: 4 x DIMM sockets

    Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Storage

    Supported Storage CPU:

    1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    2 x M.2 connectors (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB, M2Q_SB)

    1 x M.2 connector (Socket 3, M key, type 22110/2280 SATA and PCIe 4.0 x4 SSD support) (M2M_SB)

    6 x SATA 6Gb/s connectors

    Graphics

    Multi-GPU Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Graphics Integrated Graphics Processor-Intel HD Graphics support:

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.0 version and HDCP 2.3.

    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60

    * Support for DisplayPort 1.2 version and HDCP 2.3

    Networking & Connectivity

    LAN Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    WiFi Intel Wi-Fi 6E AX211

    WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands

    BLUETOOTH 5.3

    Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate

    Audio & Microphone

    Audio Realtek® Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    * You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings.

    Support for S/PDIF Out

    Ports

    Slots CPU:


    1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)

    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.


    Chipset:


    1 x PCI Express x16 slots, supporting PCIe 4.0 and running at x4 (PCIEX4_1)

    1 x PCI Express x16 slots, supporting PCIe 3.0 and running at x4 (PCIEX4_2)
    Internal I/O Ports 1 x 24-pin ATX main power connector

    2 x 8-pin ATX 12V power connectors

    1 x CPU fan header

    1 x water cooling CPU fan header

    3 x system fan headers

    1 x system fan/water cooling pump header

    2 x addressable LED strip headers

    2 x RGB LED strip headers

    4 x M.2 Socket 3 connectors

    6 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C header, with USB 3.2 Gen 2 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    2 x Thunderbolt add-in card connectors

    1 x reset button

    1 x Q-Flash Plus button

    1 x Clear CMOS button

    1 x reset jumper

    1 x Clear CMOS jumper
    External I/O Ports 4 x USB 2.0/1.1 ports

    2 x SMA antenna connectors (2T2R)

    2 x USB 3.2 Gen 2 Type-A ports (red)

    1 x DisplayPort

    1 x HDMI 2.0 port

    3 x USB 3.2 Gen 1 ports

    1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

    1 x RJ-45 port

    1 x optical S/PDIF Out connector

    2 x audio jacks
    USB Chipset:

    1 x USB Type-C port on the back panel, with USB 3.2 Gen 2x2 support

    1 x USB Type-C port with USB 3.2 Gen 2 support, available through the internal USB header

    2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+2 USB 2.0 Hubs:

    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

    Special Features

    Special Features Support for GIGABYTE Control Center (GCC)

    * Available applications in GCC may vary by motherboard model.

    Supported functions of each application may also vary depending on motherboard specifications.

    Support for Q-Flash

    Support for Q-Flash Plus

    Support for Smart Backup

    Others

    Other Features RAID:


    RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
    RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices

    Physical Specification

    Form Factor ATX Form Factor; 30.5cm x 24.4cm

    Warranty Information

    Warranty 3 years

    PRODUCT DESCRIPTION

    BEST GIGABYTE Z790 GAMING X AX ATX MOTHERBOARD BD

    The GIGABYTE Z790 GAMING X Hatchet ATX Motherboard accompanies Intel Attachment LGA 1700 that upholds thirteenth and twelfth Gen Series Processors. It conveys unmatched execution with twin 16+1+2 Stages Advanced VRM Arrangement. The motherboard accompanies 4x DIMMs with XMP 3.0 Memory Module Backing. The attachments support up to 128 GB (32 GB single DIMM limit) of framework memory. The motherboard is furnished with the PCIe 5.0 x16 opening and M.2 attachment intended to upgrade performing multiple tasks and enormous jobs, which is likewise prepared for another PCIe 5.0 designs card or capacity gadget. It upholds new PCIe 5.0 SSD with up to type 25110 M.2 space intended to give high power M.2 PCIe 5.0 SSD arrangements. The GIGABYTE Z790 GAMING X Hatchet is outfitted with Intel 2.5Gb Ethernet gives a quick lift to in general organize execution, smooth video altering, and quick information moves. Wi-Fi 6E carries the capacity to direct AR/VR encounters, get imaginative with less dropped associations, and download enormous documents at quicker speeds without slack. The high level cooling arrangement additionally gives the ideal stylish heatsink plan to keep your PC at an ideal temperature, keeping you from unforeseen framework crashes during the inventive approach.
