Product Information

Save: ৳2,300

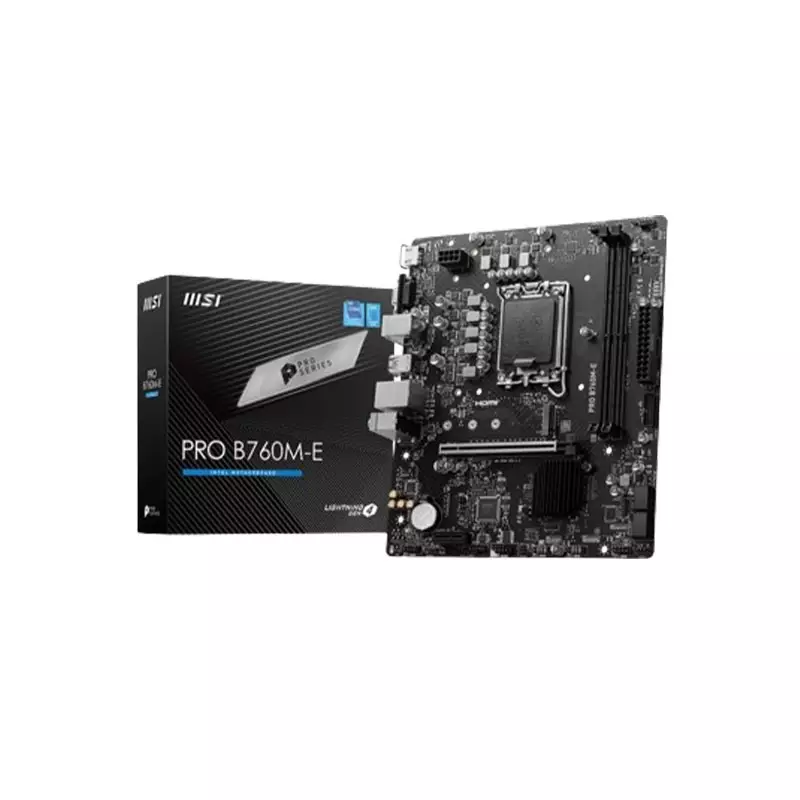

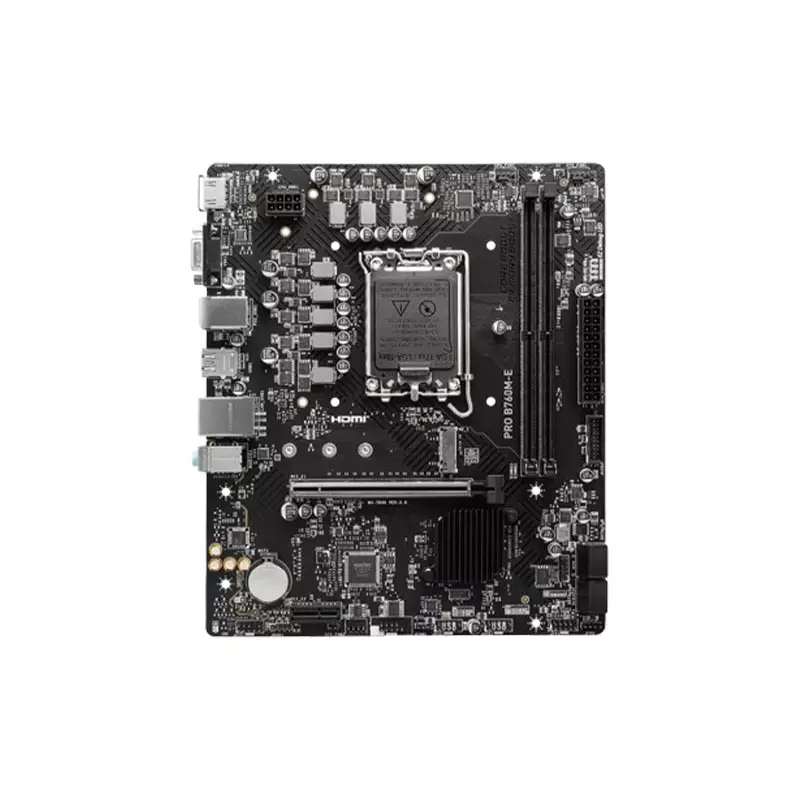

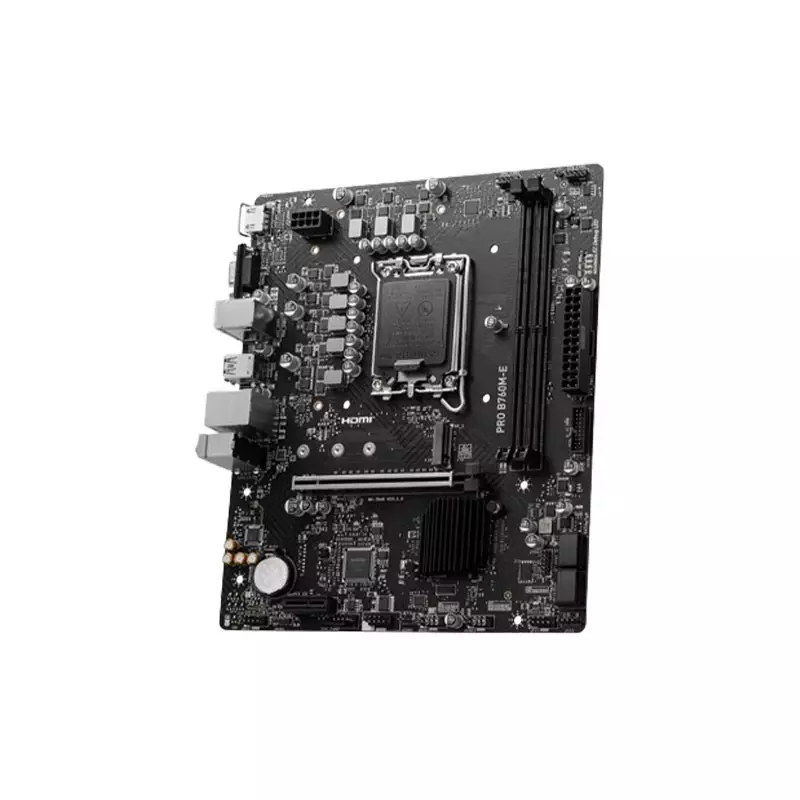

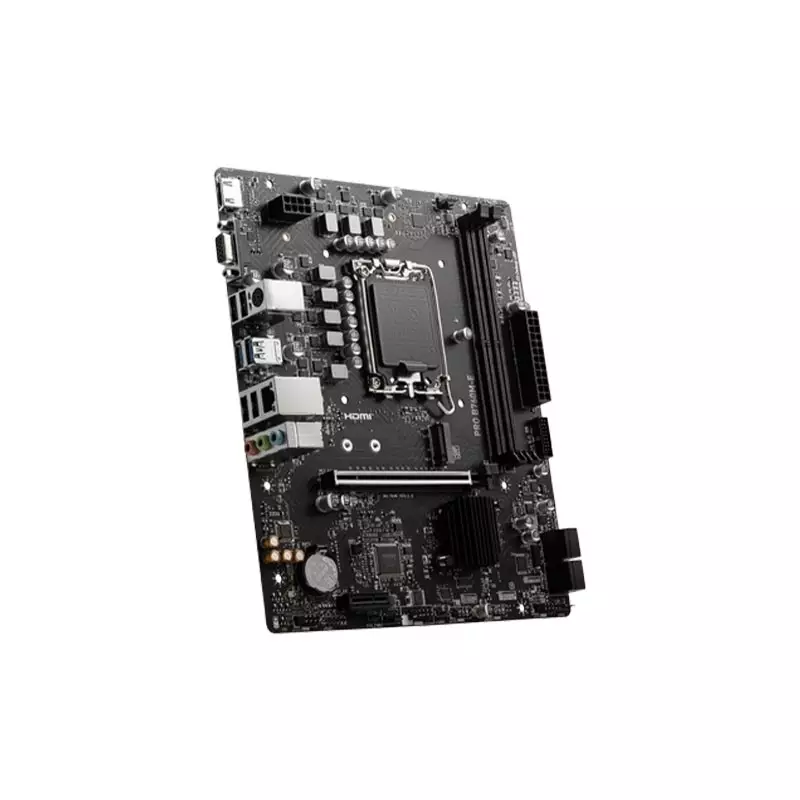

MSI PRO B760M-E DDR5 14TH GEN Motherboard
MSI PRO B760M-E DDR5 14TH GEN Motherboard MSI PRO B760M-E DDR5 14TH GEN Motherboard - 1 MSI PRO B760M-E DDR5 14TH GEN Motherboard - 2 MSI PRO B760M-E DDR5 14TH GEN Motherboard - 3 MSI PRO B760M-E DDR5 14TH GEN Motherboard - 4

MSI PRO B760M-E DDR5 14TH GEN Motherboard

0 Reviews
Stock : In Stock
PID : P0402506304
Brand : MSI
Model : PRO B760M-E
Warranty : 3 years
  • CHIPSET: INTEL B760
  • Support Intel Core: 14th/ 13th/ 12th Gen
  • MEMORY: 2x DDR5
  • LED FEATURE: 4x EZ Debug LED

    • Product Pricing

    Night Offer Price 00:00:00

    ৳12,700 ৳15,000
    + Available Payment Method

    EMI Start From*

    ৳447

    PRODUCT SPECIFICATIONS

    Processor

    CPU Support Intel® Core™ 14th/ 13th/ 12th Gen Processors,

    Intel® Pentium® Gold and Celeron® Processors

    LGA 1700

    Mainboard

    Chipset INTEL B760

    Memory

    Memory 2x DDR5, Maximum Memory Capacity 96GB

    Memory Support DDR5 6400+(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
    5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC)

    Max. overclocking frequency:

    • 1DPC 1R Max speed up to 6400+ MHz

    • 1DPC 2R Max speed up to 5600+ MHz



    Supports Intel® XMP 3.0 OC

    Supports Dual-Controller Dual-Channel mode

    Supports non-ECC, un-buffered memory

    Storage

    Storage 1x M.2

    M.2_1 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242
    devices

    4x SATA 6G

    * SATA5 will be unavailable when installing M.2 SATA SSD in the M2_1 slot.

    Graphics

    Graphics 1x HDMI™

    Support HDMI™ 1.4 with HDR, maximum resolution of 4K 30Hz*

    1x VGA

    Support VGA, maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz

    *Available only on processors featuring integrated graphics. Graphics specifications may vary
    depending on the CPU installed.

    Networking & Connectivity

    LAN Realtek® RTL8111H Gigabit LAN

    Audio & Microphone

    Audio Realtek® ALC897 Codec

    7.1-Channel High Definition Audio

    Ports

    Slots 1x PCI-E x16 slot

    1x PCI-E x1 slot

    PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)

    PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
    Internal I/O Ports 1x Power Connector(ATX_PWR)

    1x Power Connector(CPU_PWR)

    1x CPU Fan

    2x System Fan

    2x Front Panel (JFP)

    1x Chassis Intrusion (JCI)

    1x Front Audio (JAUD)

    1x Com Port (JCOM)

    1x RGB LED connector(JRGB)

    1x TPM pin header(Support TPM 2.0)

    4x USB 2.0 ports

    2x USB 3.2 Gen1 Type A ports
    USB 4x USB 2.0 (Rear)

    4x USB 2.0 (Front)

    2x USB 3.2 Gen1 Type A (Rear)

    2x USB 3.2 Gen1 Type A (Front)

    Software

    Operating System Support for Windows® 11 64-bit, Windows® 10 64-bit

    Technical Info

    LED Indicators 4x EZ Debug LED

    PRODUCT DESCRIPTION

    MSI PRO B760M-E DDR5 14TH GEN Motherboard In BD

    The MSI PRO B760M-E DDR5 14TH GEN Motherboard, now available at TechLand BD. Engineered to support Intel Core 14th/13th/12th Gen Processors, Intel Pentium Gold, and Celeron Processors, this motherboard boasts a robust LGA 1700 socket, offering powerful performance for your computing needs. With 2x DDR5 memory slots and a maximum memory capacity of 96GB, experience enhanced multitasking capabilities. The DDR5 memory support, with overclocking frequencies up to 6400+ MHz, ensures speedy data processing, and the board supports Intel XMP 3.0 OC and Dual-Controller Dual-Channel mode. The onboard graphics, including HDMI 1.4 with HDR and VGA, deliver stunning visuals, supporting resolutions up to 4K 30Hz. Storage options include M.2 and SATA, with RAID support for enhanced data protection. The motherboard features a range of USB ports, Realtek RTL8111H Gigabit LAN, and Realtek ALC897 Codec for 7.1-Channel High Definition Audio. Its internal IO includes multiple connectors for power, fans, audio, and USB, providing versatility for your setup. With a compact mATX form factor of 200mmx236.16mm, this motherboard fits seamlessly into various PC configurations. The EZ Debug LED feature simplifies troubleshooting, making it user-friendly. The back panel boasts HDMI, VGA, USB ports, LAN, and audio connectors for convenient accessibility. Compatible with Windows 11 64-bit and Windows 10 64-bit, this motherboard offers modern compatibility. Upgrade your system with the MSI PRO B760M-E for a powerful and efficient computing experience. TechLand BD brings you cutting-edge technology; don't miss the chance to enhance your setup with this top-tier motherboard.

    CUSTOMER REVIEWS

    Overall Rating

    0 out of 5 stars
    0
    Total Reviews

    Login to write a review.

    5 star
    0
    4 star
    0
    3 star
    0
    2 star
    0
    1 star
    0

    No reviews yet

    Be the first to share your thoughts about this product.

    What is the MSI PRO B760M-E DDR5 14TH GEN Motherboard Price in Bangladesh 2026 ?

    The MSI PRO B760M-E Price in BD is 13,200৳ . This MSI PRO B760M-E DDR5 14TH GEN Motherboard Manufacturing by MSI Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you MSI PRO B760M-E by 13,200৳ and its regular price is 15,000৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
