Product Information

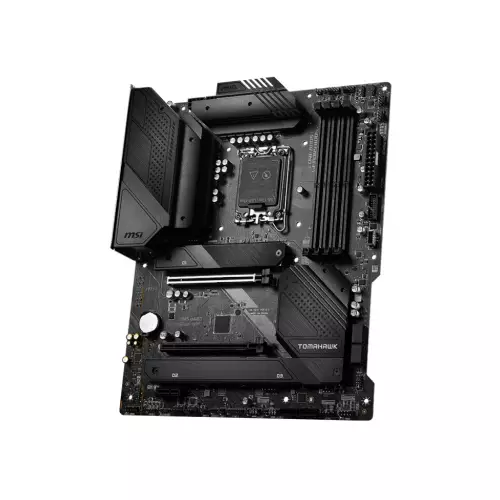

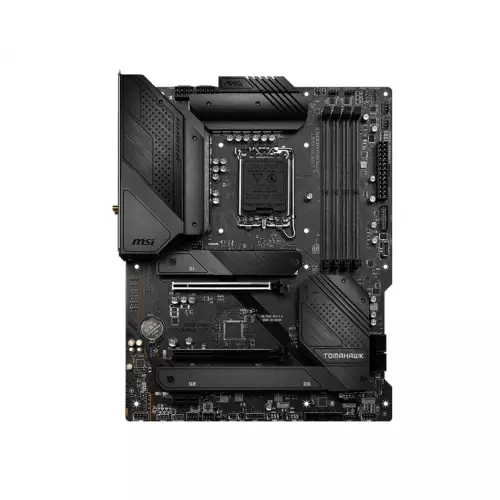

MSI MAG B660 TOMAHAWK WIFI DDR5 ATX INTEL 12TH GEN MOTHERBOARD
- Supported CPU: Supports 12th Gen Intel® Core™, Pentium® Gold and Celeron® processors
- Chipset: Intel B660 Chipset
- Memory: DDR5- Supports 6200(OC)/ 6133(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5333(OC)/ 5200(...
- Supported Storage: 6x SATA 6Gb/s ports SATA5~8 (From B660 chipset) SATAA~B (From ASM1061) 3x M.2 slots (Key M...
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Mainboard
Memory
Dual Channel, 4-DIMM Slots, Max Memory-128GB
Storage
SATA5~8 (From B660 chipset)
SATAA~B (From ASM1061)
3x M.2 slots (Key M)
M2_1 slot (From CPU)
Supports up to PCIe 4.0 x4
Supports 2242/ 2260/ 2280/ 22110 storage devices
M2_2 & M2_3 slots (From B660 chipset)
M2_2 supports up to PCIe 4.0 x4
M2_3 supports up to PCIe 4.0 x2 1
Supports SATA up to 6Gb/s
Supports 2242/ 2260/ 2280 storage devices
Intel® Optane Memory
Supports Intel® Smart Response Technology for Intel Core™ processors
Graphics
1x DisplayPort 1.4 port with HBR3, supports a maximum resolution of 4K 60Hz
Networking & Connectivity
Supports MU-MIMO TX/RX, 2.4GHz/ 5GHz/ 6GHz 1 (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Supports Bluetooth 5.2 2, FIPS, FISMA
Audio & Microphone
8 Channel (7.1) High Definition Audio
Supports optical S/PDIF output
Ports
PCI_E1 (From CPU)
Support up to PCIe 4.0
PCI_E2 (From B660 chipset)
Support up to PCIe 3.0 x4
1x PCIe 3.0 x1 slot (From B660 chipset)
2x 8-pin ATX 12V power connectors
6x SATA 6Gb/s connectors
3x M.2 slots (M-Key)
1x USB 3.2 Gen 2 10Gbps Type-C port
1x USB 3.2 Gen 1 5Gbps connector (supports additional 2 USB 3.2 Gen 1 5Gbps ports)
2x USB 2.0 connectors (supports additional 4 USB 2.0 ports)
1x 4-pin CPU fan connector
1x 4-pin water-pump fan connector
5x 4-pin system fan connectors
1x Front panel audio connector
2x System panel connectors
1x Chassis Intrusion connector
1x Clear CMOS jumper
1x TPM module connector
1x TBT connector (supports RTD3)
1x Tuning Controller connector
DisplayPort 1.4
2.5G LAN Por
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
HDMI 2.1 Port
USB 3.2 Gen 2 10Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
Optical S/PDIF OUT
5x USB 3.2 Gen 2 10Gbps ports (4 Type-A ports on the back panel, 1 Type-C available through the internal connector)
2x USB 3.2 Gen 1 5Gbps Type-A ports available through the internal connector
8x USB 2.0 ports (4 Type-A ports on the back panel, 4 Type-A ports available through the
internal connectors)
Physical Specification
Warranty Information
PRODUCT DESCRIPTION
MSI MAG B660 Tomahawk Wifi Motherboard In Bangladesh
Take a step into the future. MSI has returned with the MAG B660 series motherboards here to support the very latest 12th Generation Intel processors; boasting the brand new Intel 1700 LGA. The MAG B660 TOMAHAWK WIFI DDR5 is a gaming-oriented ATX motherboard constructed around the latest Intel B660 chipset that balances value with cutting-edge hardware. The B660 TOMAHAWK WIFI DDR5 features PCIe 4.0 technology, Dual Gen4 M.2 support, Core & DDR5 Memory boosts, a thorough cooling solution with extended heatsinks with thermal pads, onboard M.2 Shield Frozr, Wifi 6 support, Lightning 20G connectivity, and a fully comprehensive rear I/O. The B660M TOMAHAWK WIFI DDR5 combines all of these features with incredible durability and stunning aesthetics to squeeze every ounce of performance from your new CPU. Heed the call of the next generation with MSI.
SUPPORTS INTEL CORE 12TH GEN PROCESSORS
The MAG B660 TOMAHAWK WIFI DDR5 motherboard supports 12th Gen Intel Core, Pentium Gold, and Celeron processors.
12+1+1 DUET RAIL POWER SYSTEM
With its dual 8 pin power connectors and exclusive Core Boost Technology, the MAG B660 TOMAHAWK WIFI DDR5 is able to sustain heavy CPU power loads to support system-demanding game settings.
FASTER AND UNDISTORTED CURRENT DELIVERY
Core Boost technology combines MSI’s premium layout and digital power design which allows for faster and undistorted current delivery to the CPU.
VRM COOLING
Features an extended heatsink and 7W/mK thermal pads.
PCB COOLING
Premium 6-layer printed circuit design with 2oz thickened copper improves heat dissipation & reliability.
SSD COOLING
M.2 Shield Frozr prevents thermal throttling.
SYSTEM COOLING
Connect and synchronize cooling with strategically placed pin-headers - including a dedicated pump-fan header.
FORTIFIED PCI-E 4.0 X16
MSI lightning Gen 4 PCI-E is the latest and the fastest PCI-E data transfer solution with 64GB/s of transfer bandwidth that has doubled compared to its previous generation. PCIe 4.0 maintains both backward and forward compatibility with older and newer specifications. Optimized by steel armor design and server-grade PCB, you can enjoy next-gen devices without any compromise.
GEN4 M.2 CONNECTORS
MSI B660 motherboards support all the latest storage standards, which allows users to connect any ultra-fast storage device. Higher efficiency makes your work easier.
4 X DDR5 DUAL-CHANNEL MEMORY
A fully-isolated DDR circuit delivers pure data signals for optimal gaming and overclocking performance. XMP profiles in MSI BIOS are MSI OC LAB tested and can be easily enabled with auto power settings for optimized memory speed and stability.
2.5G LAN
A 2.5 Gbps LAN controller delivers a premium network gaming experience.
USB 3.2 GEN 2X2 TYPE-C
Connect to devices and transfer files at high bandwidth rates: 20 Gb/s.
WIFI 6
Connect to devices and transfer files at high bandwidth rates: 20 Gb/s.
HD AUDIO
7.1-Channel High Definition Audio with Audio Boost & S/PDIF output.
