Product Information

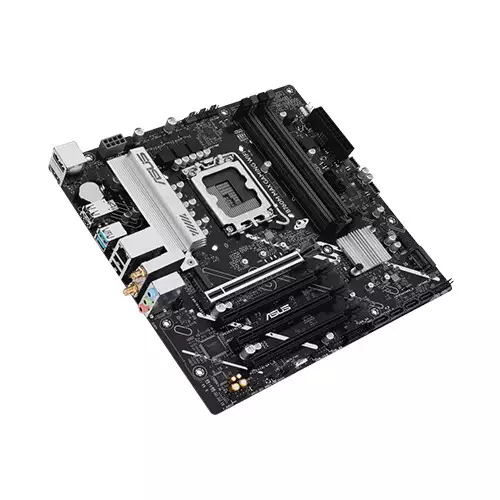

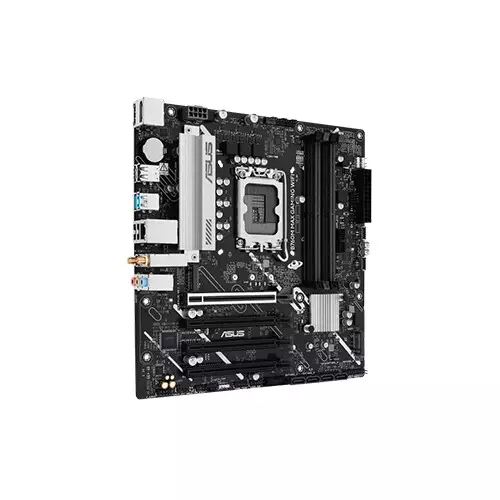

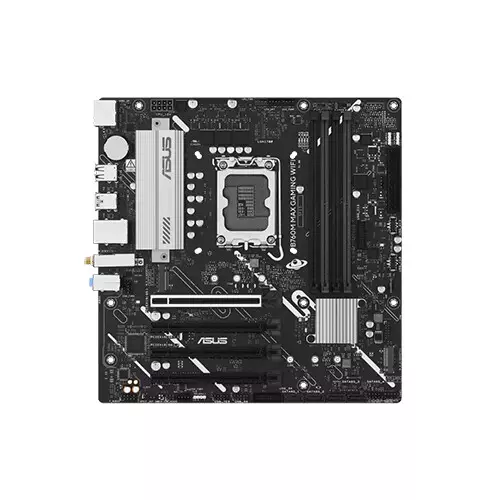

ASUS B760M MAX GAMING WIFI Intel LGA1700 DDR5 mATX Motherboard
Chipset: Intel B760
Socket: Intel Socket LGA1700
Memory: 4 x DIMM DDR5
Form Factor: mATX
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Intel B760 Chipset
Mainboard
128 Mb Flash ROM, UEFI AMI BIOS
Memory
4 x DIMM, Max. 192GB, DDR5
7200+(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/ 5400/5200/5000/4800MHz
Non-ECC, Un-buffered Memory*
Dual Channel Memory Architecture
Supports Intel Extreme Memory Profile (XMP)
OptiMem II
* Supported memory types, data rate(Speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information refer to www.asus.com for memory support list.
Storage
Total supports 3 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x2 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics
1 x DisplayPort
1 x HDMI port
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
Networking & Connectivity
1 x Realtek 1Gb Ethernet
Wi-Fi 6v Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
Supports 2.4/5GHz frequency band
Bluetooth v5.3
Audio & Microphone
Realtek 7.1 Surround Sound High Definition Audio CODEC*
Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
Supports up to 24-Bit/192 kHz playback
Audio Features
Audio Shielding
Premium audio capacitors
Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Ports
Intel Core Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
2 x PCIe 4.0 x16 slot (support x1 mode)
Note: To ensure the device is compatible, please refer to https://www.asus.com/support/ for the list of supported peripherals.
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 5Gbps port (support USB Type-C)
2 x USB 2.0 header support 4 additional USB 2.0 ports
Miscellaneous
3 x Aura Addressable Gen 2 headers
1 x Clear CMOS header
1 x Front Panel Audio header (AAFP)
1 x S/PDIF Out header
1 x SPI TPM header (14-1pin)
1 x 20-3 pin System Panel header with Chassis intrude function
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 1Gb Ethernet
3 x Audio jacks
Rear USB (Total 6 ports)
2 x USB 10Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 10 ports)
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 5Gbps port (support USB Type-C)
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Software
Windows 11, Windows 10 64-bit
ASUS Exclusive Software Armoury Crate
Aura Creator
Aura Sync
Fan Xpert 2+
Two-Way AI Noise Cancellation
AI Suite 3
Digi+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial) UEFI BIOS
ASUS EZ DIY
ASUS CrashFree BIOS 3
ASUS EZ Flash 3
ASUS UEFI BIOS EZ Mode
Special Features
ASUS 5X PROTECTION III
DIGI+ VRM
LANGuard
Overvoltage Protection
SafeSlot
Stainless-Steel Back I/O
ASUS Q-Design
Q-DIMM
Q-LED Core
Q-Slot
ASUS EZ DIY
ProCool
AURA Sync
Addressable Gen 2 headers
Others
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O Shield
2 x Screw packages for M.2 SSD
Manageability: WOL by PME, PXE
Physical Specification
mATX Form Factor
9.6 inch x 9.6 inch
Warranty Information
3-Year Brand Warranty
PRODUCT DESCRIPTION
ASUS B760M MAX GAMING WIFI Motherboard in Bangladesh
ASUS B760M MAX GAMING WIFI Intel LGA1700 DDR5 mATX. The motherboard is a powerful and compact solution designed for gamers, creators, and PC enthusiasts in Bangladesh. Built on the Intel B760 chipset, it supports Intel’s latest 14th, 13th, and 12th Gen Core processors, as well as Pentium Gold and Celeron CPUs, ensuring broad compatibility and future-ready performance. With four DIMM slots supporting up to 192GB DDR5 memory and speeds beyond 7200+MHz (OC), this motherboard delivers exceptional multitasking and gaming responsiveness. Graphics output is supported via HDMI 2.1 and DisplayPort 1.4, both capable of 4K@60Hz, making it ideal for high-resolution displays.
Storage flexibility includes three M.2 slots (PCIe 4.0 and PCIe 3.0) and four SATA 6Gb/s ports, with RAID support for enhanced data protection. Expansion options feature PCIe 5.0 x16 for next-gen GPUs and additional PCIe 4.0 slots for peripherals. Connectivity is robust with Wi-Fi 6, Bluetooth 5.3, and Realtek 1Gb Ethernet, ensuring stable networking for gaming and productivity. The motherboard also offers multiple USB options, including USB 10Gbps, USB 5Gbps Type-C, and USB 2.0 ports, providing versatile device compatibility. Audio is powered by Realtek 7.1 surround sound with premium capacitors and shielding for immersive sound quality.
ASUS Q-Design features like Q-DIMM, Q-Slot, and Q-LED Core simplify installation and troubleshooting, while Aura Sync RGB headers allow complete customization of your gaming rig. Enhanced durability is ensured with ASUS 5X Protection III, including DIGI+ VRM, LANGuard, and stainless-steel back I/O. With Armoury Crate, Fan Xpert 2+, AI Suite 3, and exclusive ASUS software, users can fine-tune performance and cooling with ease. Compact yet powerful, the ASUS B760M MAX GAMING WIFI is the perfect choice for building a high-performance mATX gaming PC in Bangladesh.
Buy the Best ASUS B760M MAX GAMING WIFI Motherboard in Bangladesh from Tech Land BD
For customers in Bangladesh, Tech Land BD is the most trusted destination to purchase the ASUS B760M MAX GAMING WIFI Intel LGA1700 DDR5 mATX motherboard. As a leading retailer of gaming and IT hardware, Tech Land BD ensures genuine ASUS products with warranty support and competitive pricing. The B760M MAX GAMING WIFI is ideal for gamers and professionals who want compact builds without compromising performance, offering PCIe 5.0 support, DDR5 memory, Wi-Fi 6, and advanced cooling features. Tech Land BD provides a hassle-free shopping experience with secure payment options, detailed product information, and fast nationwide delivery. By choosing Tech Land BD, customers can be confident they are investing in an authentic ASUS motherboard backed by excellent after-sales service, making it the best shop for gaming motherboards in Bangladesh.
Does the ASUS B760M MAX GAMING WIFI support PCIe 5.0 graphics cards?
Yes, it includes a PCIe 5.0 x16 slot, ensuring compatibility with next-generation GPUs.
How many M.2 slots are available on the ASUS B760M MAX GAMING WIFI?
The motherboard offers 3 M.2 slots along with 4 SATA 6Gb/s ports for flexible storage options.
Where can I buy the ASUS B760M MAX GAMING WIFI in Bangladesh?
You can purchase it from Tech Land BD, a trusted retailer for authentic ASUS gaming motherboards in Bangladesh.
