Product Information

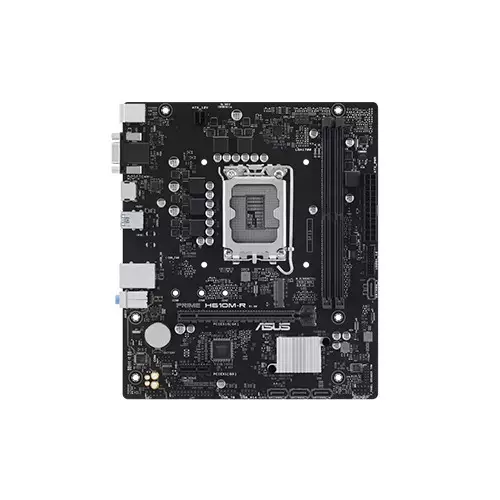

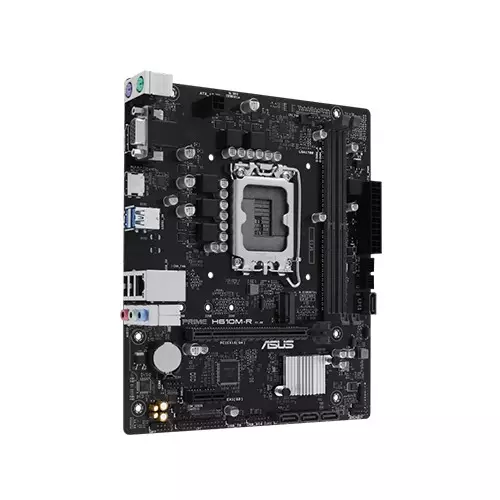

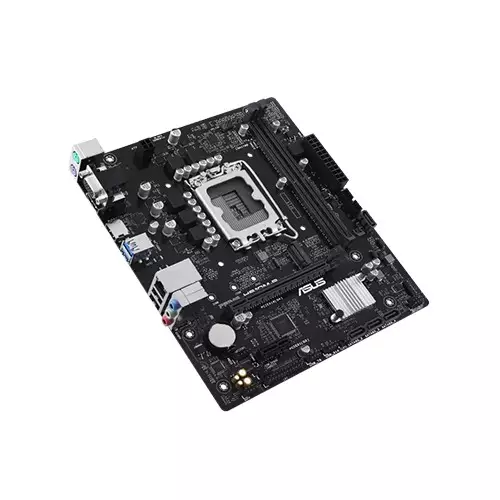

Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard
- Intel LGA 1700 Socket
- Comprehensive Cooling
- Ultrafast Connectivity
- 5X Protection III
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Gen Processors, Intel Core 12th Gen, Pentium
Gold and Celeron Processors
Supports up to Intel 65W CPU
Supports Intel® Turbo Boost Technology 2.0 and
Intel Turbo Boost Max Technology 3.0**
Mainboard
Memory
5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
Non-ECC, un-buffered
DDR5 memory supports On-Die ECC function.
Graphics
1 x VGA port
1 x HDMITM port***
* Graphics specifications may vary between CPU
types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in
DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMITM 2.1.
Networking & Connectivity
Ports
1 x PCIe 4.0 x16 slot
Intel H610 Chipset
1 x PCIe 3.0 x1 slot
1 x 4-pin CPU Fan header
1 x 4-pin Chassis Fan header
Power related
1 x 24-pin Main Power connector
1 x 4-pin +12V Power connector
Storage related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 3.2 Gen 1(5G) header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support additional 4 USB 2.0
ports
Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x VGA port
1 x HDMITM port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard (purple) port
1 x PS/2 Mouse (green) port
2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 6 ports)
1 x USB 3.2 Gen 1(5G)
header supports additional 2 USB 3.2 Gen 1 ports
2 x USB 2.0 headers support
additional 4 USB 2.0 ports
Software
Armoury Crate
AI Suite 3
EPU
DIGI+ VRM
PC Cleaner
ASUS CPU-Z
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-Slot
- Q-LED Core
ASUS Thermal Solution
- Aluminum heatsink design
Physical Specification
8.9 inch x 7.7 inch (22.6 cm x 19.5 cm )
Warranty Information
PRODUCT DESCRIPTION
Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard in Bangladesh
Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard is a powerful yet compact solution designed for mainstream PC builders looking to harness the performance of Intel's latest 14th, 13th, and 12th Gen processors. Tailored for reliability and efficient operation, this motherboard is perfect for daily computing, office tasks, and entry-level gaming builds. With support for DDR5 memory and robust connectivity options, it brings next-gen performance to budget-conscious users in Bangladesh.
Technical Details
Powered by the Intel H610 chipset, the Asus PRIME H610M-R supports LGA1700 socket CPUs, including Intel's 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors. It features dual DIMM slots that accommodate up to 96GB of DDR5 RAM at speeds of up to 5600 MHz. Graphics output options include HDMI 2.1, DisplayPort 1.4, and VGA, with support for 4K@60Hz displays. The expansion options consist of a PCIe 4.0 x16 slot and a PCIe 3.0 x1 slot, offering flexibility for adding dedicated GPUs or other PCIe devices. For storage, it provides a PCIe 3.0 x4 M.2 slot and four SATA 6Gb/s ports. Networking is handled by Realtek 1Gb Ethernet, and the board is equipped with rich connectivity, including USB 3.2 Gen 1 and USB 2.0 ports on both the front and rear. The integrated Realtek 7.1-channel audio codec delivers clear sound with premium capacitors and dedicated audio layers. The motherboard also includes multiple internal headers, fan connectors, and ASUS’s renowned 5X Protection III for enhanced durability and longevity.
Availability and Usability
The Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard is readily available at Tech Land BD, one of the most trusted tech retailers in Bangladesh. Ideal for users building an efficient desktop for work, education, or light gaming, this motherboard stands out with its support for DDR5 memory, Intel XMP profiles, and ASUS exclusive utilities like Armoury Crate and AI Suite 3. Its Micro-ATX form factor makes it a perfect fit for compact cases without compromising performance or connectivity. If you are looking for an affordable yet capable foundation for your Intel-based PC, the Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard Price in BD at Tech Land BD is the right choice for you.
Features
- Supports 14th, 13th, and 12th Gen Intel processors
- DDR5 memory support up to 96GB
- HDMI, VGA, and DisplayPort for triple display support
- PCIe 4.0 slot for modern GPUs
- Comprehensive ASUS 5X Protection III technology
Build Smart Get the Asus PRIME H610M-R from Tech Land BD Today!
Ready to upgrade your system with the latest Intel technology without breaking the bank? The Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard is the smart choice for efficient, next-gen computing. Its support for high-speed DDR5 memory, robust power delivery, and multiple display outputs makes it a highly versatile option for all types of builds. Don’t miss your chance to own this reliable and future-ready motherboard—available now at the best Asus PRIME H610M-R Micro-ATX DDR5 14th GEN Intel Motherboard Price in Bangladesh at Tech Land BD. Upgrade with confidence and experience the performance, quality, and service that only Tech Land BD can deliver.
