Product Information

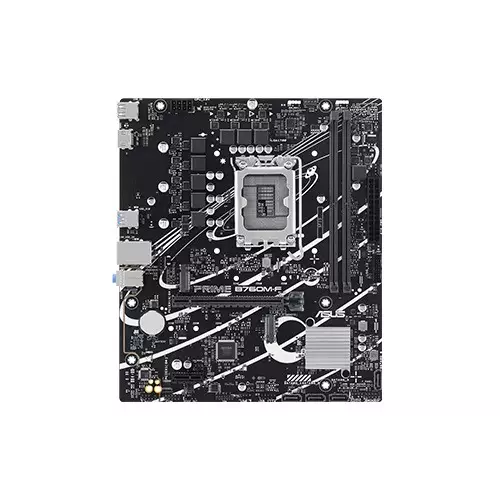

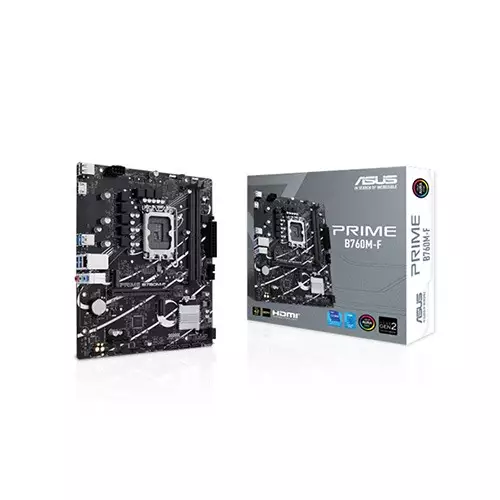

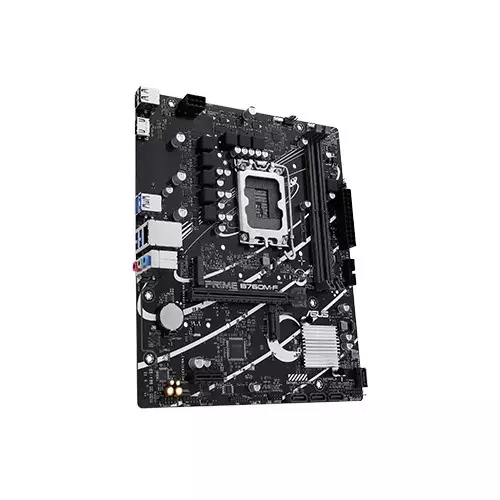

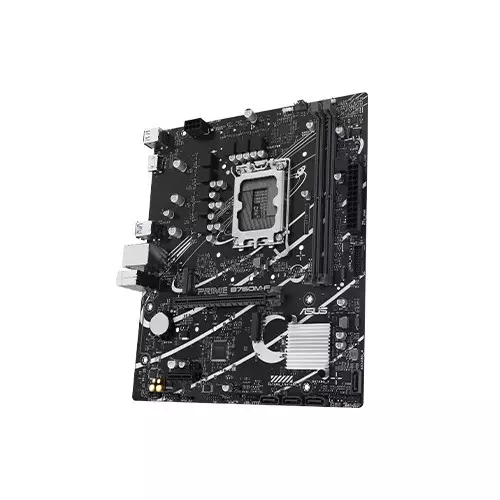

Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Intel Core 12th Gen, Pentium Gold and Celeron Processors
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0
Mainboard
Memory
8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/
7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/
6000(OC)/5800(OC)/5600/5400/5200/5000/4800
Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
Storage
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics
Graphics specifications may vary between CPU types.
Please refer to www.intel.com for any updates.
Supports 4K@30Hz as specified in HDMI 1.4.
Networking & Connectivity
Audio & Microphone
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in
the front panel is required to support 7.1 Surround Sound audio output.
Ports
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front panel audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin System Panel header
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)*
Front USB (Total 5 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 3 additional USB 2.0 ports
Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core
- Stainless-steel back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Addressable Gen 2 headers
Others
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
2 x M.2 anchors
Documentation
1 x Quick Start guide
Physical Specification
1 x PCIe 4.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x1 slot
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Technical Info
Warranty Information
PRODUCT DESCRIPTION
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard in Bangladesh
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard is a highly capable, compact motherboard tailored for modern computing needs. Designed to support Intel’s 14th, 13th, and 12th Gen processors, this motherboard offers a solid balance of performance and efficiency, making it an ideal choice for those seeking dependable power at a reasonable price.
Technical Details
Built with the Intel B760 chipset, the Asus PRIME B760M-F motherboard is compatible with LGA1700 socket processors, supporting up to 96GB of DDR5 memory in two DIMM slots with speeds reaching an impressive 8000MHz. This allows for smooth multitasking and enhanced performance for demanding applications. For expansion, it offers a PCIe 4.0 x16 slot for dedicated GPUs and an additional PCIe 4.0 x1 slot. Its storage options include two M.2 slots and four SATA ports, allowing for versatile storage solutions and fast data access. Networking is handled by Realtek 1Gb Ethernet, while the Realtek 7.1 Surround Sound codec provides high-quality audio. With additional USB 5Gbps and 2.0 ports, along with Aura Sync RGB headers, this motherboard offers robust connectivity and customization options.
Availability and Usability
Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard is available at Tech Land BD, making it accessible for users in Bangladesh looking to build a reliable, feature-packed PC. With support for high-speed DDR5 memory, PCIe 4.0 compatibility, and robust storage solutions, this motherboard is suitable for a wide range of applications, from gaming to productivity tasks. The Asus PRIME B760M-F price in BD offers a competitive option for users wanting a powerful, future-proof motherboard without overspending.
Highlights
- Supports Intel 14th, 13th, and 12th Gen processors
- High-speed DDR5 memory up to 96GB with speeds up to 8000MHz
- Dual M.2 slots for fast, expansive storage options
- Realtek 1Gb Ethernet for stable, reliable networking
- Aura Sync RGB support for customizable lighting
Upgrade Now with the Asus PRIME B760M-F at Tech Land BD!
Take your PC experience to the next level with the Asus PRIME B760M-F DDR5 LGA1700 mATX Motherboard, available now at Tech Land BD. This motherboard combines cutting-edge support for Intel processors and ultra-fast DDR5 memory, making it perfect for users who demand excellent performance and efficiency. Don’t miss out on the Asus PRIME B760M-F price in Bangladesh and secure a powerful, dependable motherboard that can handle both current and future computing needs. Visit Tech Land BD and enhance your PC setup with this exceptional motherboard today!
