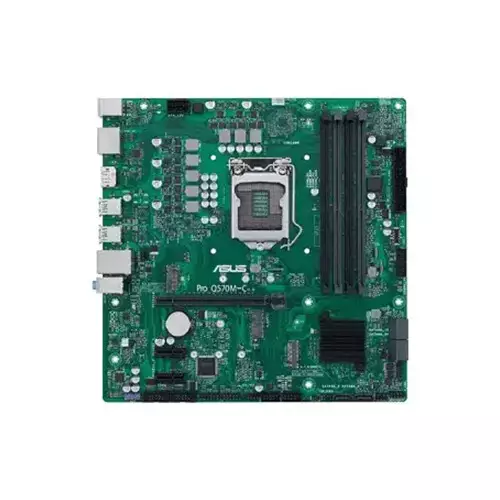

ASUS Pro Q570M-C/CSM Intel LGA1200 Micro ATX Motherboard

Intel Socket LGA1200 for 11th Gen Intel Core Processors & 10th Gen Intel Core,

Pentium Gold and Celeron Processors

Supports Intel 14 nm CPU

Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

128+64 Mb Flash ROM

4 x DIMM, Max. 128GB, DDR4 3200(OC)/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

Optimem

* 10th Gen Intel Core i7/i9 processors support 2933/2800/2666/2400/2133 natively,

others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel processors support 2933/2800/2666/2400/2133 natively.

* Refer to www.asus.com for the Memory QVL (Qualified Vendors Lists).

Intel 11th & 10th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel 11th Core processors support PCIe 4.0 x4 mode; this slot will be disabled for other CPUs

Intel Q570 Chipset

M.2_2 slot (Key M), type 2242/2260/2280(supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

* When a device in SATA mode is installed on the M.2_2 socket, SATA6G_2 port cannot be used.

RAID function for PCIe mode SSD in Intel Rapid Storage Technology is available with either 1. Intel SSDs installed

in both CPU-attached and PCH-attached slots, or 2. Any other 3rd-party SSDs installed in PCH-attached slots.

To enable Intel Optane Memory (Hybrid Storage device), it must be installed in PCH-attached slots with Intel Rapid Storage Technology.

* Graphics specifications may vary between CPU types.

** Intel 11th & 10th processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz.

Please refer to www.intel.com for any updates.

*** Only Intel 11th processors support HDMI 2.0 with max. resolution of 4K@60Hz,

others will only support HDMI 1.4 with max. resolution of 4K@30Hz. Please refer to www.intel.com for any updates.

Realtek ALC897 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

Fan and cooling-related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 Front Panel connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

2 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x DIS ME jumper

1 x LPT header

1 x Mono-out header(with Amp IC)

1 x M.2 slot (Key E)

1 x SMBUS header

1 x Speaker header

1 x 10-1 System Panel header

4 x USB 3.2 Gen 2 ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x USB 3.2 Gen 1 front panel connector (supports USB Type-C)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support additional 4 USB 2.0 ports

ASUS Exclusive Software

IT Management software supported

- ASUS Control Center Express(ACCE)

ASUS EZ DIY

- Box Headers

Bespoke Motherboard Design & Business-Focused Features

- ASUS Self-Recovering BIOS

- ASUS Event Log

- ASUS Commercial BIOS kit

- Anti-Moisture

- 24/7 Reliability

- Overcurrent Protection

TPM 2.0 IC onboard

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 SSD screw package

1 x M.2 Key E screw package

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User manual

Micro-ATX

Windows 10 64-bit

3 Years Replacement Warranty
