Product Information

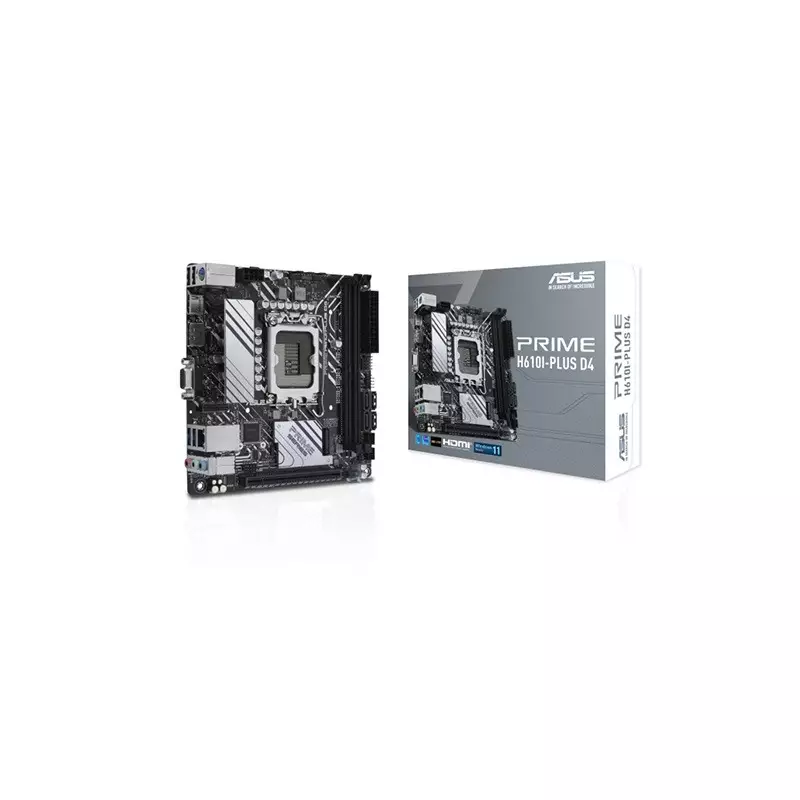

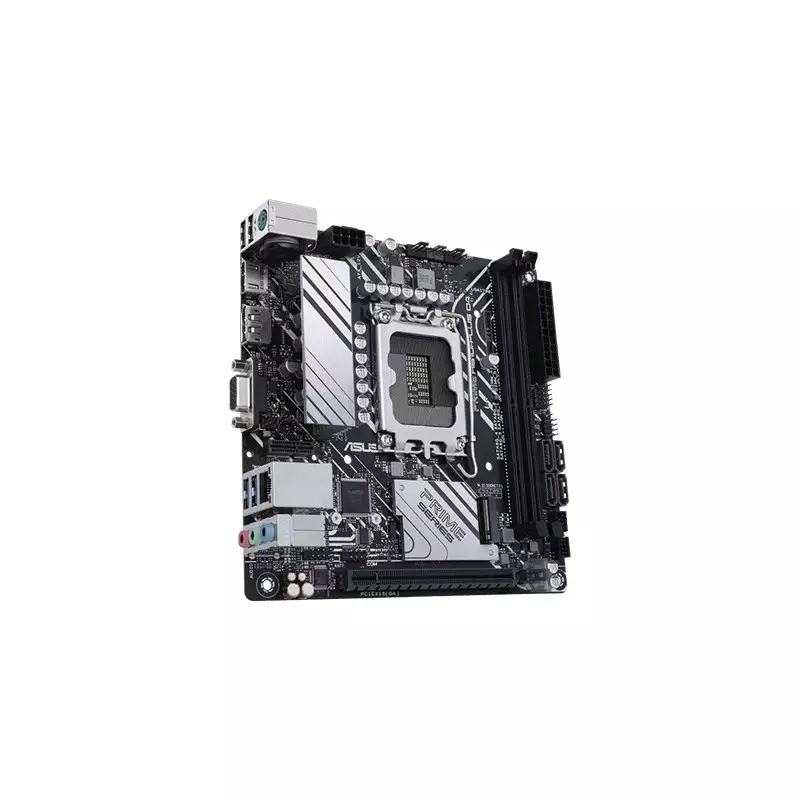

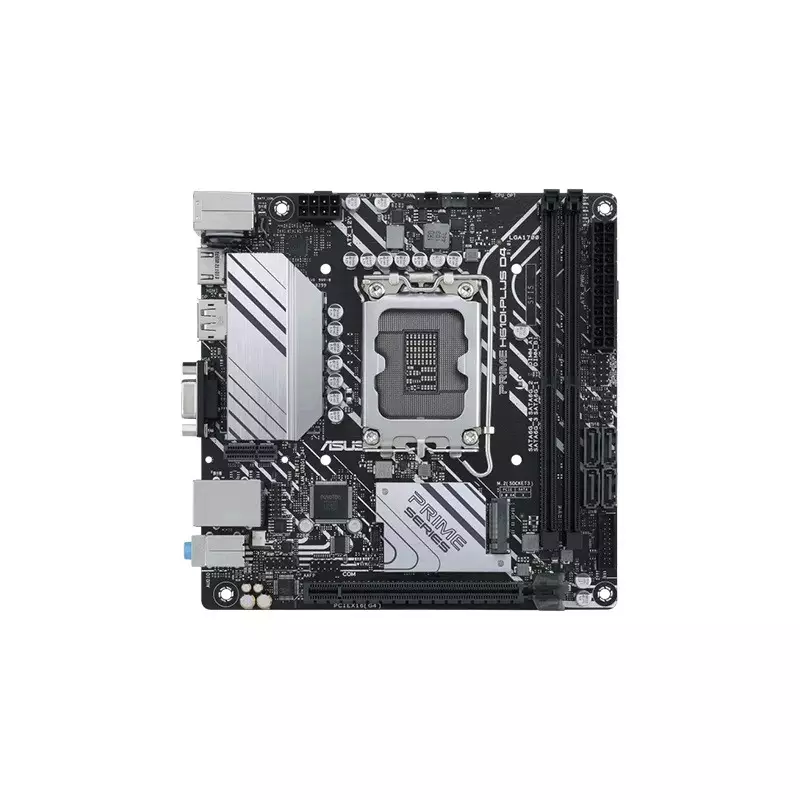

ASUS PRIME H610I-PLUS D4 DDR4 14th to 12th Gen ATX Motherboard
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**
* Refer to www.asus.com for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Mainboard
Memory
Dual Channel Memory Architecture
Supports Intel® Extreme Memory Profile (XMP)
* Actual memory data rate depends on the CPU types and DRAM modules, for more information refer to
www.asus.com for the Memory QVL (Qualified Vendors Lists).
Storage
Intel H610 Chipset
M.2 slot (Key M), type 2260/2280 (supports PCIe 3.0 x4 mode)
4 x SATA 6Gb/s ports
Graphics
1 x D-Sub
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Support DisplayPort 1.4 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates.
*** Support HDMI 2.1 with max. resolution of 4K@60Hz. Please refer to www.intel.com for any updates.
Networking & Connectivity
*Wi-Fi module is sold separately.
Audio & Microphone
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.
Ports
2 x USB 2.0 ports (2 x Type-A)
1 x DisplayPort
1 x D-Sub port
1 x HDMI port
1 x V-M.2 slot (Key E)
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x PS/2 Keyboard/Mouse combo port
2 x USB 3.2 Gen 1 ports (2 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
Front USB (Total 4 ports)
1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports
1 x USB 2.0 header supports additional 2 USB 2.0 ports
Software
Armoury Crate
AI Suite 3
- Performance And Power Saving Utility
TurboV EVO
EPU
DIGI+ VRM
Fan Xpert
ASUS CPU-Z
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
Physical Specification
1 x PCIe 4.0 x16 slot
6.7 inch x 6.7 inch ( 17.02 cm x 17.02 cm )
Warranty Information
PRODUCT DESCRIPTION
ASUS PRIME H610I-PLUS D4 DDR4 14th to 12th Gen ATX Motherboard in Bangladesh
Specifications
The ASUS PRIME H610I-PLUS D4 motherboard is designed to support Intel® Socket LGA1700, making it compatible with Intel® Core™ 14th, 13th, and 12th Gen processors, as well as Pentium® Gold and Celeron® processors. It features the Intel® H610 chipset and accommodates up to 64GB of DDR4 memory across two DIMM slots. The memory supports speeds ranging from 2133MHz to 3200MHz and includes Intel® Extreme Memory Profile (XMP) for easy overclocking. For graphics, it offers one DisplayPort, one HDMI port, and a D-Sub port, all capable of supporting resolutions up to 4K at 60Hz. Expansion capabilities include one PCIe 4.0 x16 slot, and for storage, it provides one M.2 slot and four SATA 6Gb/s ports. The motherboard also features Realtek 1Gb Ethernet, comprehensive USB connectivity, and Realtek 7.1 Surround Sound for high-definition audio.
Availability and Usability
The ASUS PRIME H610I-PLUS D4 motherboard is readily available at Tech Land BD, one of Bangladesh's leading tech retailers. This motherboard is a prime choice for gamers, content creators, and PC enthusiasts due to its robust performance, extensive connectivity options, and support for the latest Intel® processors. Its compact Mini ITX form factor makes it ideal for small builds without compromising on power or features. Customers will appreciate the enhanced system stability and durability offered by ASUS's 5X PROTECTION III suite, which includes DIGI+ VRM, LANGuard, and overvoltage protection. The board’s intuitive BIOS interface and ASUS-exclusive software like Armoury Crate and AI Suite 3 further enhance usability, making it easier for users to manage and optimize their system.
Highlights
- Supports Intel Core 14th, 13th, and 12th Gen processors
- Dual-channel DDR4 memory up to 64GB
- High-definition 4K graphics support
- Comprehensive connectivity with multiple USB and storage options
- Enhanced durability with ASUS 5X PROTECTION III
Don't Miss Out on the ASUS PRIME H610I-PLUS D4 at Tech Land BD
Seize the opportunity to elevate your PC build with the ASUS PRIME H610I-PLUS D4 motherboard from Tech Land BD. This cutting-edge motherboard, with its advanced features and superior performance, is available at an unbeatable price. Whether you're upgrading your current system or building a new one, the ASUS PRIME H610I-PLUS D4 offers unmatched value. Don't wait—check the ASUS PRIME H610I-PLUS D4 price in BD today and ensure you get the best deal. Visit Tech Land BD now and secure your purchase, as the demand for high-quality motherboards is always high. Experience the future of computing with the ASUS PRIME H610I-PLUS D4 and take your setup to the next level.
