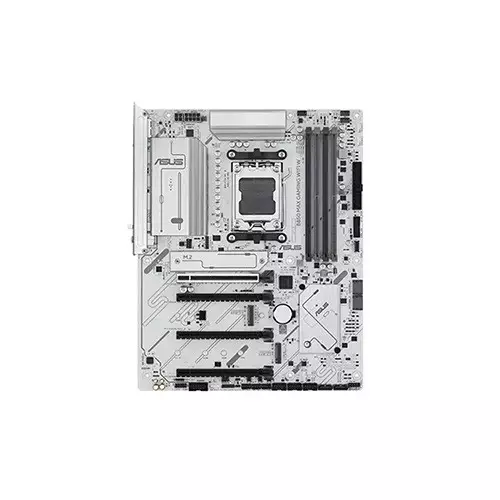

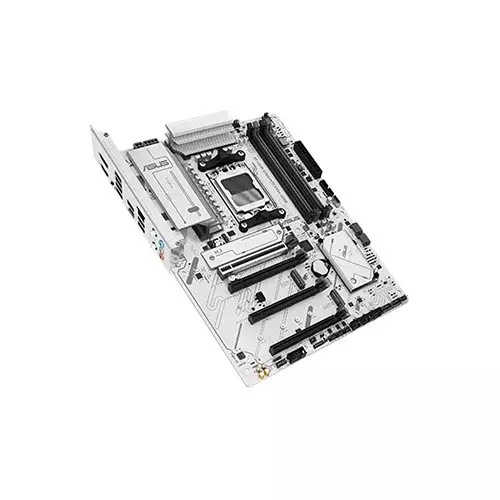

ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard
ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard - 1 ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard - 2 ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard - 3

ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard

0 Reviews
Stock : In Stock
PID : P0122506997
Brand : Asus
Model : B850 MAX GAMING WIFI W
Warranty : 3 years
  • Chipset - AMD B850 Chipset
  • Memory Size - 256GB,
  • Memory Type - DDR5
  • Form Factor - ATX

⌨️ PC BUILD + FREE KL-139 KEYBOARD

Product Pricing

Night Offer Price 00:00:00

৳35,000 ৳36,500
+ Available Payment Method

EMI Start From*

৳1,232

PRODUCT SPECIFICATIONS

Processor

Supported CPU

AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000

Series Desktop Processors

Refer to https://www.asus.com/support/download-center/

for CPU support list.
Chipset

AMD B850 Chipset

Mainboard

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory Size

Supports up to 8000+MT/s (OC) with

Ryzen 9000 & 8000 & 7000 Series Processors,

ECC and Non-ECC Unbuffered DIMM

Dual-channel memory architecture

Supports AMD Extended Profiles for Overclocking (EXPO)

ASUS Enhanced Memory Profile (AEMP)

Supported memory types, data rate (speed),

and the number of DRAM modules varies depending on the CPU

and memory configuration, for more information, please refer to

to the CPU/Memory Support list under the Support tab of the

product information site or visit https://www.asus.com/support/download-center/.

Adjustments will be made based on the specifications of

mass-produced memory products available on the market.

Non-ECC, unbuffered DDR5 memory supports the On-Die ECC function.
Memory Type

DDR5
Memory

256GB

Storage

Storage

Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

AMD Ryzen 9000 & 7000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

AMD Ryzen 8000 Series Desktop Processors

M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)

AMD B850 Chipset

M.2_3 slot (Key M), type 2242/2260/2280/22110

(supports PCIe 4.0 x2 mode)

4 x SATA 6Gb/s ports

Specifications vary by CPU types.

AMD RAIDXpert2 Technology

Ryzen 9000 Series Processors: RAID 0/1/5/10

Ryzen 8000 Series Processors: RAID 0/1

Ryzen 7000 Series Processors: RAID 0/1/10

Graphics

Graphics

1 x DisplayPort

1 x HDMI port

Graphics specifications may vary between CPU types.

Please refer to AMD CPU specifications.

Supports max. 8K@30Hz as specified in DisplayPort 1.4.

Supports 4K@60Hz as specified in HDMI 2.1.

Networking & Connectivity

Bluetooth

Wi-Fi 6E

2x2 Wi-Fi 6E (802.11ax)

Supports 2.4/5/6GHz frequency band

Bluetooth v5.3

WiFi 6E 6GHz regulatory may vary by country and is

supported only in Windows 11 or later.

The Bluetooth version may vary, please refer to the

Wi-Fi module manufacturer's website for the latest specifications.
Ethernet

1 x Realtek 2.5Gb Ethernet

ASUS LANGuard

Audio & Microphone

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

A chassis with an HD audio module in the front panel is

required to support 7.1-channel surround sound audio output.

Ports

Slots

AMD Ryzen 9000 & 7000 Series Desktop Processors

1 x PCIe 5.0 x16 slot (supports x16 mode)

AMD Ryzen 8000 Series Desktop Processors

1 x PCIe 4.0 x16 slot (supports x8/x4 mode)

AMD B850 Chipset

1 x PCIe 4.0 x16 slot (support x4 mode)

2 x PCIe 3.0 x16 slots (support x1 mode)
Connector

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers


Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connectors

1 x 4-pin +12V CPU Power connectors


Storage Related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports


USB

1 x USB 5Gbps connector (supports USB Type-C )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports


Miscellaneous

3 x Addressable RGB Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin System Panel header

1 x Thunderbolt (USB4) header
Internal I/O Ports

Fan and Cooling Related

1 x 4-pin CPU Fan header

1 x 4-pin CPU OPT Fan header

1 x 4-pin AIO Pump header

4 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connectors

1 x 4-pin +12V CPU Power connectors

Storage Related

3 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps connector (supports USB Type-C )

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

Miscellaneous

3 x Addressable RGB Gen 2 headers

1 x Clear CMOS header

1 x Chassis Intrusion header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x SPI TPM header (14-1 pin)

1 x 10-1 pin System Panel header

1 x Thunderbolt (USB4) header
External I/O Ports

1 x USB 10Gbps port (1 x USB Type-C)

3 x USB 10Gbps ports (3 x Type-A)

2 x USB 5Gbps ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x HDMI port

1 x Wi-Fi module

1 x Realtek 2.5Gb Ethernet port

3 x Audio jacks

1 x BIOS FlashBack button
USB

Rear USB (Total 8 ports)

4 x USB 10Gbps port(s) (3 x Type-A + 1 x USB Type-C)

2 x USB 5Gbps ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 9 ports)

1 x USB 5Gbps connector (supports USB Type-C)

1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

3 x USB 2.0 headers support 6 additional USB 2.0 ports

* USB Type-C power delivery output: max. 5V/3A

Software

Operating System

Windows 11, Windows 10 64-bit

Special Features

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage protection

- SafeSlot

- Stainless-steel back I/O

ASUS Q-Design

- Q-Antenna

- Q-Dashboard

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

ASUS EZ DIY

- BIOS FlashBack button

- BIOS FlashBack LED

- Pre-mounted I/O shield

- SafeSlot

Aura Sync

- Addressable RGB Gen 2 headers

Others

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS WiFi Q-Antenna

1 x M.2 rubber packages

3 x Screw packages for M.2 SSD

Documentation

1 x Quick start guide
Other Features

Manageability -

WOL by PME, PXE

Physical Specification

Color

White
Form Factor

ATX
Dimension

12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

Warranty Information

Warranty

3 years

PRODUCT DESCRIPTION

ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard in Bangladesh

ASUS B850 MAX GAMING WIFI W AM5 ATX Gaming Motherboard is a powerhouse designed for gamers and PC enthusiasts in Bangladesh, offering cutting-edge performance for AMD Ryzen 9000, 8000, and 7000 series processors. Built with the AMD B850 chipset, it supports up to 256GB of DDR5 memory with speeds of 8000+MT/s (OC), ensuring lightning-fast responsiveness for gaming and multitasking. Its robust storage options include three M.2 slots (with PCIe 5.0 x4 support on the primary slot for Ryzen 9000/7000 CPUs) and four SATA 6Gb/s ports, with RAID 0/1/5/10 configurations for flexible data management. The motherboard delivers stunning visuals through DisplayPort (8K@30Hz) and HDMI 2.1 (4K@60Hz), complemented by Realtek 7.1 Surround Sound for immersive audio. Connectivity is top-notch with Wi-Fi 6E, Bluetooth v5.3, and Realtek 2.5Gb Ethernet with ASUS LANGuard for lag-free online gaming. It features extensive USB support, including a USB 10Gbps Type-C port and multiple USB 5Gbps and 2.0 ports for seamless device integration. ASUS 5X PROTECTION III ensures durability with DIGI+ VRM, overvoltage protection, and SafeSlot, while the Q-Design and EZ DIY features simplify installation. The board’s sleek silver ATX design (30.5cm x 24.4cm) includes Aura Sync RGB lighting for customizable aesthetics. With ASUS-exclusive software like Armoury Crate, Aura Creator, and TurboV Core, users can fine-tune performance effortlessly. Backed by a 3-year warranty, this motherboard is a premium choice for building a high-performance gaming rig. Purchase yours from Tech Land BD to experience unparalleled gaming and reliability.



Does it support AMD Ryzen 7000/8000 series CPUs?

Yes, it’s designed for the AMD AM5 socket, compatible with Ryzen 7000 and future 8000 series processors.



What RAM speeds does it support?

Supports DDR5 RAM with EXPO/XMP overclocking, up to speeds beyond 6000MHz (check QVL for optimal kits).



Does it have PCIe 5.0 support?

Yes, it includes PCIe 5.0 x16 for GPUs and PCIe 5.0 M.2 slots for ultra-fast NVMe SSDs.
