Product Information

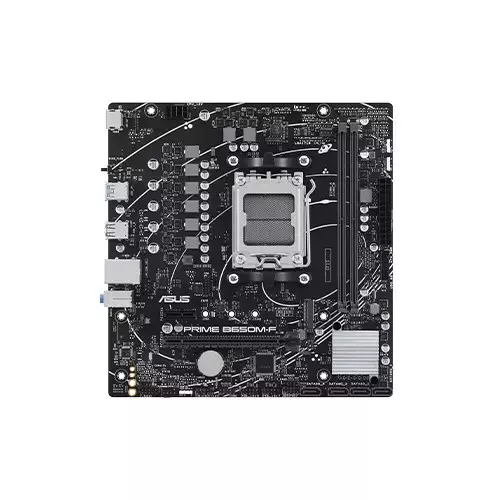

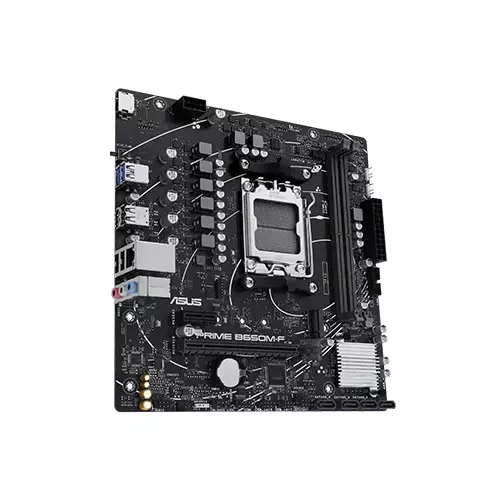

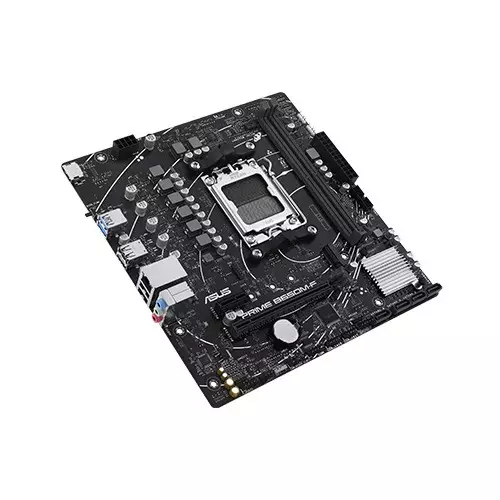

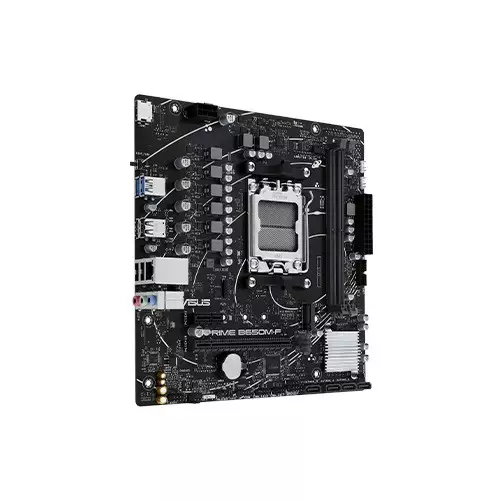

Asus PRIME B650M-F DDR5 AM5 mATX Motherboard
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
8000 & 7000 Series Desktop Processors
Mainboard
Memory
7000(OC)/6800(OC)/6600(OC)/6400(OC)/
6200(OC)/6000(OC)/5800(OC)/5600(OC)/
5400(OC)/5200/5000/4800 Non-ECC, Un-buffered Memory
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
Storage
AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD B650 Chipset
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Graphics
Graphics specifications may vary between CPU types.
Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
Networking & Connectivity
ASUS LANGuard
Audio & Microphone
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
A chassis with an HD audio module in the front panel
is required to support 7.1 Surround Sound audio output.
Ports
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
Storage Related
1 x M.2 slot (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
- Power Saving
- Two-Way AI Noise Cancelation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot Core
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED core
- Q-Slot
ASUS Thermal Solution
- Aluminum heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
Aura Sync
- Addressable Gen 2 headers
Others
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x M.2 anchor
Documentation
Physical Specification
1 x PCIe 4.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0 x1 slot
8.9 inch x 8.6 inch (22.6 cm x 21.8 cm)
Technical Info
Warranty Information
PRODUCT DESCRIPTION
Asus PRIME B650M-F DDR5 AM5 mATX Motherboard in Bangladesh
Asus PRIME B650M-F DDR5 AM5 mATX Motherboard is a compact yet powerful motherboard designed for AMD Ryzen 7000, 8000, and 9000 series processors. Utilizing the AMD B650 chipset, it supports the latest DDR5 memory, allowing for faster data processing and system responsiveness. This motherboard is ideal for those who require high performance in a smaller form factor, making it a suitable choice for both gaming and professional setups.
Technical Details
Asus PRIME B650M-F motherboard supports AMD Socket AM5 and is compatible with the Ryzen 7000, 8000, and 9000 series processors, allowing for superior processing speeds. It features two DIMM slots with support for up to 96GB of DDR5 memory, enabling overclocking capabilities up to 7200MHz. With one PCIe 4.0 x16 slot, it provides optimal expansion for high-performance graphics cards. The motherboard also supports extensive storage options, including one M.2 slot and four SATA 6Gb/s ports, perfect for fast data access. Connectivity includes Realtek 1Gb Ethernet, six rear USB ports, and Realtek 7.1 Surround Sound for immersive audio. The motherboard’s thermal solution and ASUS 5X Protection III ensure efficient cooling and stability during high-load operations.
Availability and Usability
Asus PRIME B650M-F DDR5 AM5 mATX Motherboard is available at Tech Land BD, providing easy access for customers in Bangladesh looking for a high-quality motherboard at an affordable price. This motherboard’s compact micro-ATX form factor makes it ideal for space-saving builds, while its support for AMD’s latest Ryzen processors and DDR5 memory delivers exceptional performance. The Asus PRIME B650M-F is also equipped with numerous USB ports, advanced audio features, and ASUS’s signature Aura Sync for customizable lighting. Customers interested in building a reliable, high-performance PC should consider the Asus PRIME B650M-F price in BD, available at Tech Land BD for an excellent deal.
Highlights
- Supports AMD Ryzen 7000, 8000, and 9000 series processors
- Dual DDR5 DIMM slots with overclocking up to 7200MHz
- Realtek 1Gb Ethernet and ASUS LANGuard for stable connectivity
- One PCIe 4.0 x16 slot and M.2 slot for expandable storage
- ASUS 5X Protection III for enhanced durability and stability
Upgrade Your PC Today with the Asus PRIME B650M-F at Tech Land BD
Don’t miss the opportunity to boost your PC performance with Asus PRIME B650M-F DDR5 AM5 mATX Motherboard. Available at Tech Land BD, this motherboard combines compact design with high-end performance, perfect for gamers, creatives, and professionals who need reliable power in a smaller package. With the latest DDR5 memory support, comprehensive expansion options, and robust protection features, Asus PRIME B650M-F is built for both speed and durability. Visit Tech Land BD today to explore the Asus PRIME B650M-F price in Bangladesh and secure this high-performance motherboard for your next upgrade!
