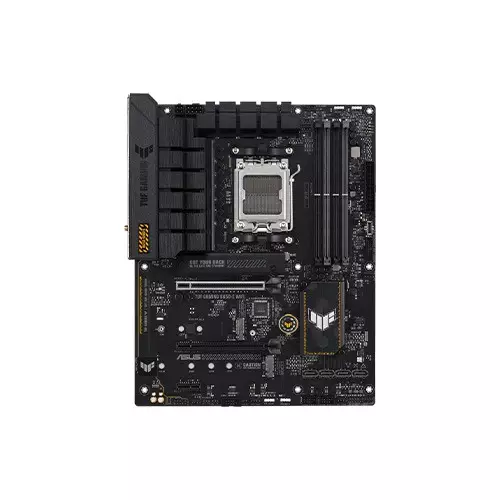

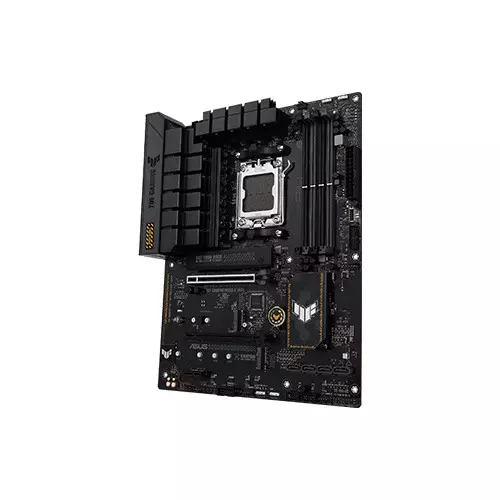

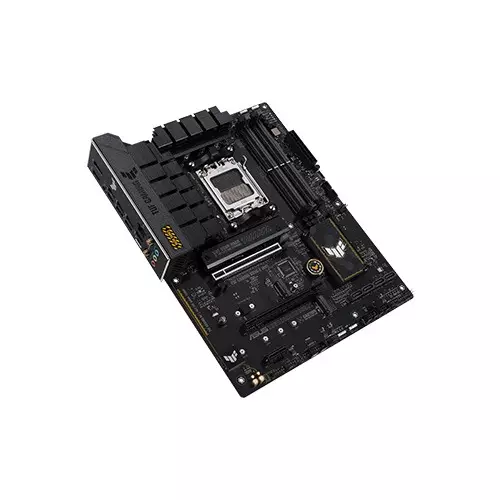

Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
8000 & 7000 Series Desktop Processors
Mainboard
Memory
8000+(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/
6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/
5600(OC)/5400(OC)/5200/5000/4800 ECC and Non-ECC, Un-buffered Memory
Dual Channel Memory Architecture
Supports AMD EXTended Profiles for Overclocking (EXPO)
OptiMem II
Storage
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4/x2 mode)
AMD B650 Chipset
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
AMD RAIDXpert2 Technology supports both
PCIe RAID 0/1/10 and SATA RAID 0/1/10.
Specifications vary by CPU types.
Graphics
1 x HDMI port
* Supports max. 8K@60Hz as specified in DisplayPort 1.4.
** Supports 4K@60Hz as specified in HDMI 2.1.
*** VGA resolution support depends on processors' or graphic cards' resolution.
Networking & Connectivity
2x2 Wi-Fi 6E (802.11 a/b/g/n/ac/ax)
Supports 2.4/5/6GHz frequency band
Bluetooth v5.3
WiFi 6E 6GHz regulatory may vary between countries.
The Bluetooth version may vary, please refer to
the Wi-Fi module manufacturer's website for the latest specifications.
TUF LANGuard
Audio & Microphone
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio cover
Ports
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi Module
1 x Realtek 2.5Gb Ethernet port
5 x Audio jacks
1 x BIOS FlashBack button
Internal I/O Connectors
Fan and Cooling related
1 x 4-pin CPU Fan header(s)
1 x 4-pin CPU OPT Fan header(s)
1 x 4-pin AIO Pump header(s)
4 x 4-pin Chassis Fan header(s)
Power related
1 x 24-pin Main Power connector
1 x 8-pin +12V Power connector
1 x 4-pin +12V Power connector
Storage related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen 2 header(s)
1 x Aura RGB header(s)
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
20-3 pin System Panel header with Chassis intrude function
2 x USB 10Gbps port(s) (1 x Type-A + 1 x USB Type-C)
3 x USB 5Gbps port(s) (3 x Type-A)
3 x USB 2.0 port(s) (3 x Type-A)
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header(s) support(s) 2 additional USB 5Gbps ports
2 x USB 2.0 header(s) support(s) 4 additional USB 2.0 ports
Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 4
- Power Saving
- Two-Way AI Noise Cancellation
AI Suite 3
- TurboV EVO
- DIGI+ VRM
- PC Cleaner
TUF GAMING CPU-Z
DTS Audio Processing
MyAsus
Norton Anti-virus software (Free Trial version)
WinRAR
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
Special Features
- DIGI+ VRM (- Digital power design with DrMOS)
- Enhanced DRAM Overcurrent Protection
- ESD Guards
- TUF LANGuard
- Overvoltage Protection
- SafeSlot Core+
- Stainless-Steel Back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Aura RGB header(s)
- Addressable Gen 2 header(s)
Physical Specification
1 x PCIe 4.0/3.0 x16 slot(s)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B650 Chipset
1 x PCIe 4.0/3.0 x16 slot (supports x1 mode)
1 x PCIe 4.0/3.0 x1 slots
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Technical Info
Windows 10 64-bit
Warranty Information
PRODUCT DESCRIPTION
Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard in Bangladesh
Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard is a high-performance motherboard built for AMD Ryzen 7000, 8000, and 9000 series processors. Designed with the latest AMD B650 chipset, it supports DDR5 memory for enhanced speed and efficiency. This motherboard is well-suited for gamers and PC enthusiasts looking to maximize system performance with features like Wi-Fi 6E and a robust power solution. It's equipped with high-grade materials and military-grade protection for long-lasting durability.
Technical Details
Asus TUF GAMING B650-E WIFI motherboard features an AMD Socket AM5 compatible with AMD Ryzen 7000, 8000, and 9000 series processors, allowing high-performance processing power. It includes four DDR5 DIMM slots supporting up to 192GB of memory, with support for overclocking. This motherboard offers excellent display capabilities with a DisplayPort and HDMI port, supporting up to 8K and 4K resolutions, respectively. Expansion options include PCIe 4.0 slots for optimal graphics and storage capabilities. In addition, the motherboard has M.2 slots and SATA 6Gb/s ports for expansive storage configurations, along with Realtek 2.5Gb Ethernet and Wi-Fi 6E for ultra-fast connectivity. The board also provides ample USB ports, high-definition audio support, and a comprehensive thermal design to keep components cool under heavy loads.
Availability and Usability
Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard is available at Tech Land BD, ensuring customers in Bangladesh can easily purchase this high-end component. The motherboard’s compatibility with the latest AMD processors, DDR5 memory, and a variety of storage and connectivity options make it perfect for building a high-performance gaming or workstation PC. With features like Aura Sync for customizable RGB lighting, enhanced audio for immersive sound, and multiple USB ports, it offers significant usability for gaming, multimedia creation, and heavy multitasking. For those considering the Asus TUF GAMING B650-E WIFI price in BD, Tech Land BD offers competitive pricing and reliable support.
Highlights
- Compatible with AMD Ryzen 7000, 8000, and 9000 series processors
- Supports up to 192GB of DDR5 memory with overclocking capabilities
- Equipped with Wi-Fi 6E and Realtek 2.5Gb Ethernet for fast connectivity
- Three M.2 slots and four SATA 6Gb/s ports for extensive storage
- Aura Sync and Addressable RGB for personalized lighting effects
Get Your Asus TUF GAMING B650-E WIFI Now at Tech Land BD
Don't miss out on the opportunity to enhance your PC setup with the Asus TUF GAMING B650-E WIFI DDR5 AM5 ATX Motherboard. Offering exceptional speed, graphics compatibility, and connectivity, this motherboard is ideal for gamers and professionals who demand the best performance. With the latest support for AMD Ryzen processors and DDR5 memory, this motherboard ensures your system remains cutting-edge. Visit Tech Land BD today to check the Asus TUF GAMING B650-E WIFI price in Bangladesh, and secure this versatile motherboard for your next build. Act now to elevate your PC performance!
