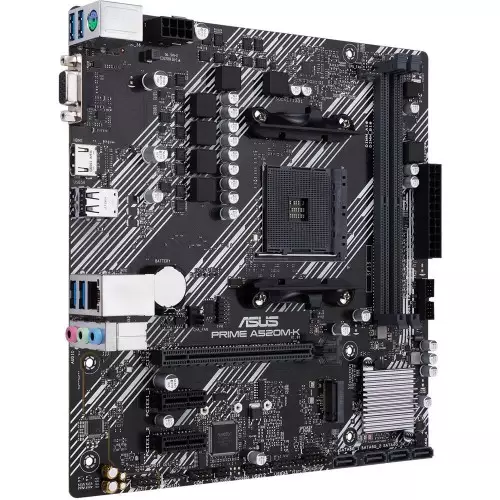

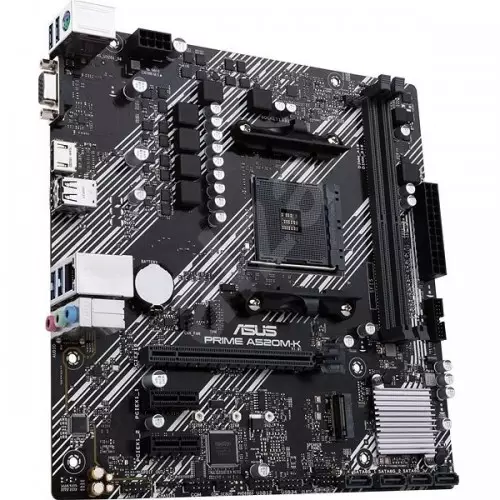

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard
Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard - 1 Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard - 2
Discount Tag

Asus Prime A520M-K AM4 Micro-ATX AMD Motherboard

0 Reviews
Stock : In Stock
PID : P0122506115
Brand : Asus
Model : Asus Prime A520M-K
Warranty : 3 year
  • Chipset: AMD A520
  • Supported CPU: AMD AM4 Socket
  • Graphics: 1 x D-Sub 1 x HDMI 2.1(4K@60HZ)
  • BIOS: 256 Mb Flash ROM, UEFI AMI BIOS

    • Product Pricing

    Night Offer Price 00:00:00

    ৳8,850 ৳9,900
    + Available Payment Method

    EMI Start From*

    ৳312

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU AMD AM4 Socket for AMD Ryzen 5000 Series/ 4000 G-Series/ 3000 Series Desktop Processors

    Mainboard

    Chipset AMD A520
    BIOS 256 Mb Flash ROM, UEFI AMI BIOS

    Memory

    Memory Type Dual Channel DDR4 Memory Technology
    Slots 2 x DIMM
    Supported Memory 4600(O.C)/4400(O.C)/4000(O.C.)/3866(O.C.)/3733(O.C.)/3600(O.C.)/3466(O.C.)/3333(O.C.)/3200/3000/2800/2666/2400/2133 MHz Un-buffered Memory
    Maximum Mamory 64GB, DDR4

    Storage

    Supported Storage Total supports 2 x M.2 slot(s) and 4 x SATA 6Gb/s ports
    AMD Ryzen 5000 Series/ 3000 Series Desktop Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/ 2280 /22110(PCIE 4.0 x4 and SATA modes) storage devices support
    AMD Ryzen 4000 G-Series Processors :
    1 x M.2_1 socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    AMD B550 Chipset :
    1 x M.2_2 socket 3, with M Key, Type 2242/2260/2280 (PCIE 3.0 x4 and SATA modes) storage devices support
    4 x SATA 6Gb/s port(s),
    Support Raid 0, 1, 10

    Graphics

    Graphics 1 x D-Sub
    1 x HDMI 2.1(4K@60HZ)

    Networking & Connectivity

    LAN Realtek RTL8111H 1GB Ethernet
    ASUS LANGuard

    Audio & Microphone

    Audio Realtek ALC887/897 7.1 Surround Sound High Definition Audio CODEC *
    - Supports : Jack-detection, Multi-streaming, Front Panel Jack-retasking, up to 24-Bit/192kHz playback
    Audio Feature :
    - Audio Shielding
    - Dedicated audio PCB layers
    * Choose the chassis with HD audio module in front panel to support 8-channel audio output.

    Ports

    Slots PCI 3rd Gen AMD Ryzen and 3rd Gen AMD Ryzen with Radeon Graphics Processors
    1 x PCIe 3.0 x16 (x16 mode)
    AMD A520 Chipset
    2 x PCIe 3.0 x1
    M.2 Socket 1 x M.2 Socket 3, with M Key, Type 2242/2260/2280/22110(PCIE 3.0 x4 and SATA modes) storage devices support
    Internal I/O Ports 1 x CPU Fan connector(s)
    1 x Chassis Fan connector(s)
    1 x USB 3.2 Gen 1(up to 5Gbps) connector(s) support(s) additional 2 USB 3.2 Gen 1 port(s)
    2 x USB 2.0 connector(s) support(s) additional 4 USB 2.0 port(s)
    1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
    1 x SPI TPM header
    4 x SATA 6Gb/s connector(s)
    1 x S/PDIF out header(s)
    1 x 24-pin EATX Power connector(s)
    1 x 8-pin EATX 12V Power connectors
    1 x Front panel audio connector(s) (AAFP)
    1 x Clear CMOS jumper(s)
    1 x System panel connector
    1 x COM port header
    1 x Speaker connector
    External I/O Ports Back I/O Ports:
    1 x PS/2 keyboard/mouse combo port(s)
    1 x D-Sub
    1 x HDMI
    1 x LAN (RJ45) port(s)
    4 x USB 3.2 Gen 1 (blue) Type-A
    2 x USB 2.0
    3 x Audio jack(s)
    USB Rear USB Port ( Total 6 )
    4 x USB 3.2 Gen 1 port(s)(4 x Type-A)
    2 x USB 2.0 port(s)(2 x Type-A)

    Front USB Port ( Total 6 )
    2 x USB 3.2 Gen 1 port(s)(2 x Type-A)
    4 x USB 2.0 port(s)(4 x Type-A)
    HDMI 1 x HDMI 2.1(4K@60HZ)

    Physical Specification

    Form Factor mATX Form Factor
    8.9 inch x 8.7 inch ( 22.6 cm x 22.1 cm )

    Warranty Information

    Warranty 03 Years Warranty

    PRODUCT DESCRIPTION

    Asus Prime A520M-K Motherboard

    Boasting a robust power design, ASUS Prime series is expertly engineered with comprehensive cooling solutions and intelligent tuning options. Prime A520M series motherboards offer daily users and DIY PC builders a range of performance tuning options via intuitive software and firmware features. The Prime A520M motherboard packs flexible tools to tune every aspect of user's system, enabling user to tweak performance settings maximizing the productivity. It provides intelligently simplified options for PC DIY beginners, as well as comprehensive features for seasoned veterans. Coupled with EPU, it has flexible cooling control system that decreases chassis fan speeds below to the default minimum to keep user's system whisper-quiet when performing light tasks. And the Digi+ voltage regulator module delivers real time control over voltage droop, automatically switching frequency and power-efficiency settings. Additionally, Prime A520M-K is designed with an array of hybrid fan headers and features comprehensive cooling controls while owning multiple temperature sources and smart protection. It also provides all the fundamentals to boost daily productivity. This supports high-end rigs loaded with peripherals, including four rear-panel USB Type-A connectors with fast USB 3.2 Gen 1 connectivity for compatible cases. Its audio system features audio shielding, separate layer for left and right tracks which offers an immersive sound. Armoury Crate provides control of settings for ASUS products, including keyboard and mouse preferences. To mention, SafeSlot Core is the ASUS-exclusive PCIe slot which is available here. The exclusive Prime A520M-K comes with 03 years of warranty.
