Product Information

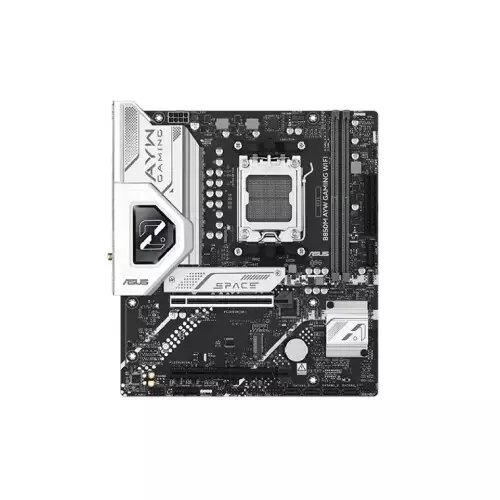

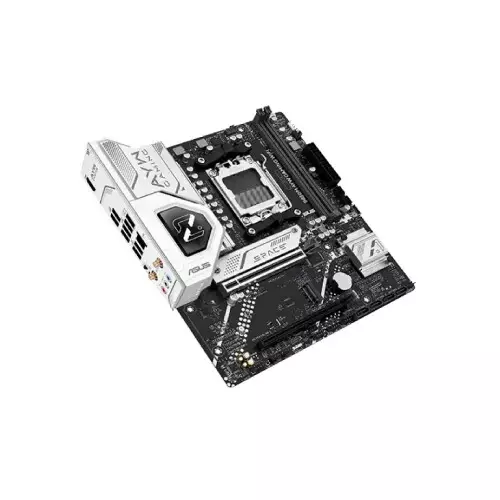

ASUS B850M AYW GAMING WIFI AMD AM5 mATX Gaming Motherboard
Chipset: AMD B850 Chipset for Ryzen 9000, 8000 & 7000 Series Desktop Processors
Socket: AMD Socket AM5
Memory: Supports up to 2 x DIMM slots, max. 128GB, DDR5
Storage: Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors
AMD B850 Chipset
Mainboard
256 Mb Flash ROM, UEFI AMI BIOS
Memory
2 x DIMM slots, max. 128GB, DDR5 Supports up to
8200+MT/s(OC) with Ryzen 9000 Series Processors,
8400+MT/s(OC) with Ryzen 8000 Series Processors,
8000+MT/s(OC) with Ryzen 7000 Series Processors,
ECC and Non-ECC Un-buffered DIMM*
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Storage
Supports 2 x M.2 slots and 4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen™ 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4/x2 mode)*
AMD B850 Chipset
4 x SATA 6Gb/s ports
* Specifications vary by CPU types.
AMD RAIDXpert2 Technology
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Graphics
Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
Networking & Connectivity
1 x Realtek 2.5Gb Ethernet
ASUS LANGuard
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency
Bluetooth v5.3
Audio & Microphone
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Ports
AMD Ryzen 9000 & 7000 Series Desktop Processors*
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**
AMD B850 Chipset
1 x PCIe 4.0 x16 slot (support x4 mode)
Fan and Cooling Related
1 x 4-pin CPU Fan header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C )
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
2 x USB 10Gbps ports (2 x Type-A)
2 x USB 5Gbps ports (2 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x HDMI port
Software
Windows 11, Windows 10 64-bit
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
ASUS AI Advisor
ASUS DriverHub
TurboV Core
ASUS GlideX
ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Special Features
SUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Dashboard
- Q-DIMM
- Q-LED
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- Pre-mounted I/O shield
- BIOS FlashBack button
- BIOS FlashBack LED
- SafeSlot
Aura Sync
- Addressable RGB Gen 2 headers
Others
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Manageability: WOL by PME, PXE
Physical Specification
micro-ATX Form Factor
9.6 inch x 8.7 inch ( 24.4 cm x 22.1 cm )
Warranty Information
3 Year
PRODUCT DESCRIPTION
ASUS B850M AYW GAMING WIFI motherboard
The ASUS B850M AYW GAMING WIFI motherboard is a powerful micro-ATX board built on the AMD B850 chipset, tailored for next-generation AMD Ryzen 9000, 8000, and 7000 series desktop processors. Designed with versatility and high-performance computing in mind, this motherboard supports up to 128GB DDR5 RAM across 2 DIMM slots, achieving incredible speeds of up to 8400+ MT/s (OC), depending on the processor generation. Its memory support includes both ECC and non-ECC unbuffered DIMMs with AMD EXPO and ASUS AEMP overclocking profiles for maximized memory performance.
With dual M.2 slots (PCIe 5.0 and 4.0) and 4 SATA 6Gb/s ports, it ensures lightning-fast storage for boot drives and game libraries alike. The inclusion of Realtek 2.5Gb Ethernet, Wi-Fi 6 (802.11ax), and Bluetooth 5.3 guarantees seamless network connectivity whether wired or wireless, making it perfect for gamers and streamers. On the graphics side, it supports 4K @ 60Hz via HDMI 2.1, delivering immersive visuals when paired with compatible CPUs. The onboard 7.1 surround sound Realtek audio codec with premium audio components ensures crystal-clear sound for both gaming and media.
For expandability, it offers PCIe 5.0 x16 and PCIe 4.0 x16 slots, along with a comprehensive set of internal and external USB ports, including USB Type-C. The board also features ASUS Q-Design and EZ DIY tools like M.2 Q-Latch, a BIOS FlashBack button, and a pre-mounted I/O shield for hassle-free building. Built with 5X Protection III, including DIGI+ VRM, SafeSlot, and LANGuard, it guarantees durability and safety during intensive use. Aesthetically, Aura Sync RGB headers support customizable lighting, giving gamers the flexibility to match their build’s theme. Compact yet robust, the ASUS B850M AYW is the ideal choice for a performance-driven, future-ready gaming setup.
ASUS B850M AYW GAMING WIFI motherboard Price in Bangladesh
Buy the ASUS B850M AYW GAMING WIFI from TechLand BD for unbeatable authenticity and after-sales support. Enjoy fast delivery, best prices, and reliable warranty service—exclusively at TechLand BD. Upgrade your AMD build today with cutting-edge connectivity and premium components.
Does this motherboard support Ryzen 9000 series processors?
Yes, it supports AMD Ryzen 9000, 8000, and 7000 series desktop processors on socket AM5.
Can I use PCIe 5.0 SSDs with this motherboard?
Yes, it has one PCIe 5.0 x4 M.2 slot for high-speed SSDs, depending on the processor used.
Is this motherboard suitable for gaming builds with RGB lighting?
Absolutely, it includes addressable Gen 2 RGB headers and supports ASUS Aura Sync for RGB customization.
