Product Information

Save: ৳2,700

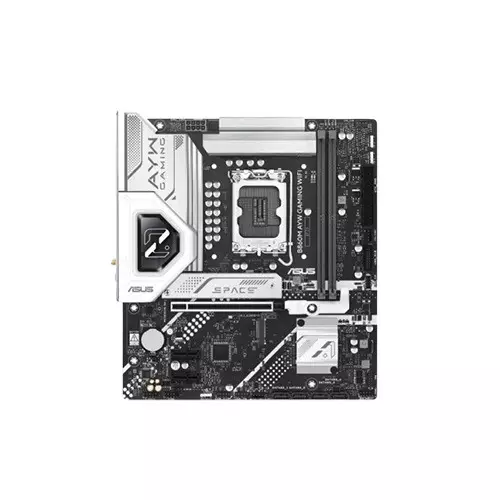

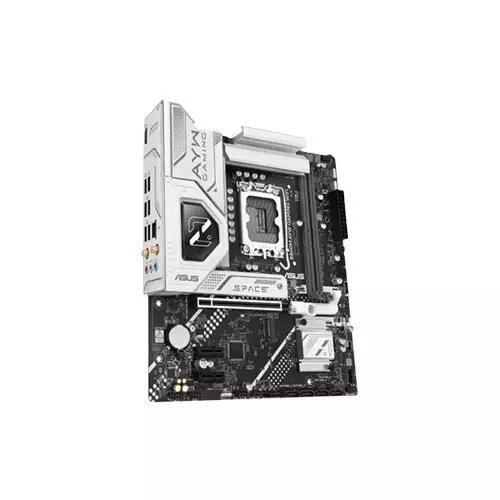

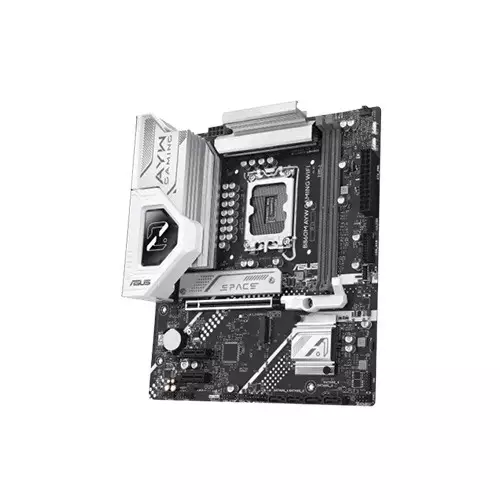

ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard
ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard - 1 ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard - 2 ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard - 3 ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard - 4

ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0122506934
Brand : Asus
Model : B860M AYW GAMING WIFI
Warranty : 3-Years
  • Supported CPU: Intel Core Ultra Processors (Series 2), LGA 1851
  • Supported RAM: 2x DDR5, Max 128GB, Support up to 8800+MT/s (OC)
  • Graphics Output: 1 x HDMI, Supports 4K@60Hz as specified in HDMI 2.1
  • Features: 2x M.2 Slot, 1 x 2.5Gb LAN, Wi-Fi 6, Bluetooth 5.3

    • 🎮 FREE LOGITECH F310 WITH PC BUILD

    Product Pricing

    Discount Price

    ৳23,500 ৳26,200
    + Available Payment Method

    EMI Start From*

    ৳827

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU Supports Intel Core Ultra Processors (Series 2), LGA1851

    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

    Mainboard

    Chipset Intel B860 Chipset
    BIOS 256(128+128) Mb Flash ROM, UEFI AMI BIOS

    Memory

    Memory Size 128GB
    Memory Type DDR5
    Memory Supports up to 8800+MT/s (OC), Non-ECC, Un-buffered ,Clocked Unbuffered DIMM
    (CUDIMM)
    Dual channel memory architecture

    DIMM Fit

    Supports Intel Extreme Memory Profile (XMP) memory module

    ASUS Enhanced Memory Profile III(AEMPIII)

    Storage

    Supported Storage Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*

    Intel® Core™ Ultra Processors (Series 2) *

    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

    Intel® B860 Chipset

    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

    4 x SATA 6Gb/s ports

    Graphics

    Graphics Graphics

    1 x HDMITM port

    Supports 4K@60Hz as specified in HDMI 2.1.

    VGA resolution support depends on processors' or graphic cards' resolution.

    Networking & Connectivity

    Wireless Connectivity Wi-Fi 6

    1x1 Wi-Fi 6 (802.11ax)

    Supports 2.4/5GHz frequency band

    Bluetooth v5.3
    LAN 1 x Realtek 2.5Gb Ethernet

    ASUS LANGuard

    Audio & Microphone

    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    - Supports up to 24-Bit/192 kHz playback

    Audio Features

    - Audio Shielding

    - Premium audio capacitors

    - Dedicated audio PCB layers

    * A chassis with an HD audio module in the front panel is required to support 7.1
    Surround Sound audio output.

    Ports

    Slots 2x DIMM slots
    Jack 3 x Audio jacks
    Internal I/O Ports 1 x USB 10Gbps port (1 x Type-A)

    2 x USB 5Gbps ports (2 x Type-A)

    3 x USB 2.0 ports (3 x Type-A)

    1 x HDMITM port

    1 x Wi-Fi module

    1 x Realtek 2.5Gb Ethernet port

    3 x Audio jacks

    Internal I/O Connectors

    Fan and Cooling Related

    1 x 4-pin CPU Fan header

    2 x 4-pin Chassis Fan headers

    Power Related

    1 x 24-pin Main Power connector

    1 x 8-pin +12V CPU Power connector

    Storage Related

    2 x M.2 slots (Key M)

    4 x SATA 6Gb/s ports
    External I/O Ports USB

    1 x USB 5Gbps connector (supports USB Type-C)

    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    2 x USB 2.0 headers support 4 additional USB 2.0 ports

    Miscellaneous

    3 x Addressable Gen2 headers

    1 x Clear CMOS header

    1 x COM Port header

    1 x Front Panel Audio header (F_AUDIO)

    1 x S/PDIF Out header

    1 x SPI TPM header (14-1 pin)

    1 x 10-1 pin Front Panel System header
    USB Rear USB (Total 6 ports)

    1 x USB 10Gbps port (1 x Type-A)

    2 x USB 5Gbps ports (2 x Type-A)

    3 x USB 2.0 ports (3 x Type-A)**

    Front USB (Total 7 ports)

    1 x USB 5Gbps connector (supports USB Type-C)*

    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    2 x USB 2.0 headers support 4 additional USB 2.0 ports**

    * USB Type-C® power delivery output: max. 5V/3A.

    ** USB_E1 port, USB_E2 port, USB_E3 port and USB_E4 port share the bandwidth.
    HDMI 1 x HDMI

    Software

    Bundled Software ASUS Exclusive Software

    Armoury Crate

    - Aura Sync

    - Fan Xpert 2+

    - Power Saving

    ASUS AI Advisor

    ASUS DriverHub

    ASUS GlideX

    ASUS CPU-Z

    Norton 360 Deluxe (60 Days Free Trial)

    WinRAR (40 Days Free Trial)

    UEFI BIOS

    ASUS EZ DIY

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash

    - ASUS UEFI BIOS EZ Mode

    - ASUS MyHotkey

    Special Features

    Special Features ASUS 5X PROTECTION III

    - DIGI+VRM

    - LANGuard

    - Overvoltage protection

    - SafeSlot Core+

    - Stainless-steel back I/O

    ASUS Q-Design

    - M.2 Q-Latch

    - PCIe Slot Q-Release

    - Q-Dashboard

    - Q-DIMM

    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

    - Q-Slot

    ASUS Thermal Solution

    - M.2 heatsink

    - VRM heatsinks design

    ASUS EZ DIY

    - ProCool

    - Pre-mounted I/O shield

    Aura Sync

    - Addressable Gen2 headers

    Others

    Other Features RAID

    Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

    Physical Specification

    Color Black
    Expansion Slots PCI

    Intel Core Ultra Processors (Series 2)

    1 x PCIe 4.0 x16 slot

    Intel B860 Chipset

    2 x PCIe 4.0 x1 slots

    M.2 Socket

    Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports

    Intel Core Ultra Processors (Series 2)

    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

    Intel B860 Chipset

    M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
    Form Factor micro-ATX Form Factor

    9.6 inch x 8.75 inch (24.4cm x 22.2cm)

    Technical Info

    Brand Asus
    Model B860M AYW GAMING WIFI

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION

    ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Motherboard in Bangladesh

    ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard is built to deliver next-gen performance, powerful connectivity, and advanced cooling capabilities, all wrapped in a compact mATX form factor. Powered by the Intel B860 chipset, this board supports Intel Core Ultra Processors (Series 2) via the LGA1851 socket, making it ideal for gamers and PC builders who demand fast performance and future-ready technology.

    With dual DDR5 DIMM slots supporting up to 128GB RAM and speeds over 8800+MT/s (OC), your system is geared for lightning-fast multitasking and intense gaming sessions. The motherboard features PCIe 5.0 M.2 slot, 2x PCIe 4.0 x1 slots, and 2x M.2 + 4x SATA 6Gb/s storage options for rapid data access and flexible expansion.

    For seamless connectivity, the board includes Wi-Fi 6, Bluetooth 5.3, Realtek 2.5Gb Ethernet, and multiple USB ports including a USB Type-C 5Gbps front connector, making it perfect for modern setups. It also features high-fidelity 7.1 surround sound audio with Realtek codecs, ensuring immersive sound experiences. ASUS enhances the experience with 5X Protection III, Q-Design features, M.2 heatsinks, and bundled tools like Armoury Crate, Aura Sync, and Fan Xpert 2+ for total control over system performance and lighting. Whether you're building a high-performance rig or upgrading, the ASUS B860M AYW GAMING WIFI offers premium features at a compact scale. Available now at Tech Land BD, get your hands on this powerful motherboard at the best price in Bangladesh.


    Does this motherboard support PCIe 5.0 for faster storage?

    Yes, it supports PCIe 5.0 x4 mode on the M.2_1 slot for ultra-fast NVMe SSDs.

    Is Wi-Fi built-in or does it require an external adapter?

    It comes with built-in Wi-Fi 6 and Bluetooth 5.3, no extra hardware needed.

    Can I use DDR4 RAM on this motherboard?

    No, it only supports DDR5 memory modules.

    CUSTOMER REVIEWS

    Overall Rating

    0 out of 5 stars
    0
    Total Reviews

    Login to write a review.

    5 star
    0
    4 star
    0
    3 star
    0
    2 star
    0
    1 star
    0

    No reviews yet

    Be the first to share your thoughts about this product.

    What is the ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard Price in Bangladesh 2026 ?

    The Asus B860M AYW GAMING WIFI Price in BD is 23,500৳ . This ASUS B860M AYW GAMING WIFI LGA 1851 DDR5 Micro-ATX Motherboard Manufacturing by Asus Comes With 3-Years Warranty & Based on 0 reviews. Tech Land BD Offers you Asus B860M AYW GAMING WIFI by 23,500৳ and its regular price is 26,200৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
