Product Information

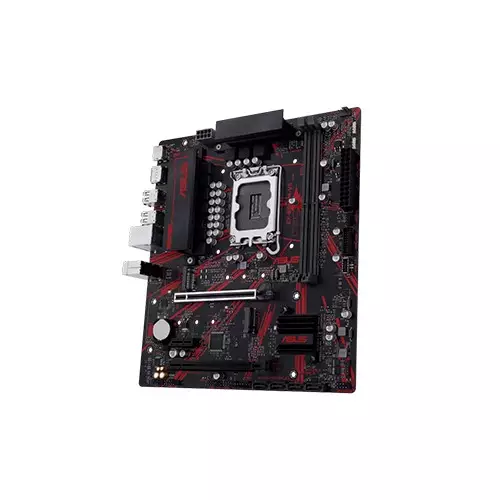

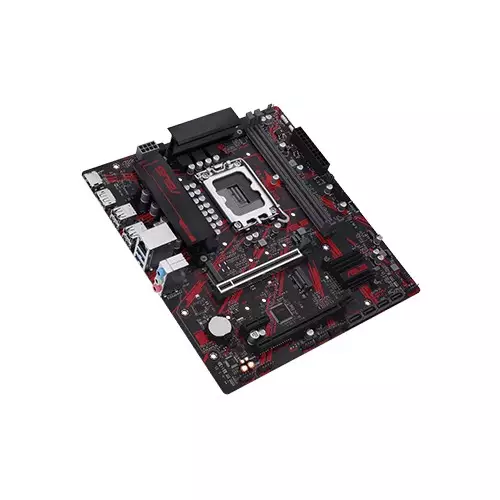

ASUS EX-B860M-V5 LGA1851 mATX DDR5 Motherboard
- Support Intel Core Ultra Processors
- Intel B860 Chipset
- 2 x DIMM slots, max
- 256 (128+128) Mb Flash ROM
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Mainboard
Memory
Supports up to 8800+MT/s (OC), Non-ECC,
Un-buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
Non-ECC, un-buffered DDR5 memory
supports On-Die ECC function.
Graphics
1 x HDMI™ port***
* Graphics specifications may vary between CPU
types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in
DisplayPort 1.4.
*** Supports 4K@60Hz as specified in HDMI 2.1.
**** VGA resolution support depends on
processors' or graphic cards' resolution.
Networking & Connectivity
ASUS LANGuard
Audio & Microphone
CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
Ports
1 x PCIe 4.0 x16 slot
Intel B860 Chipset
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x1 slot
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps connector (supports USB Type-C®)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI™ port
1 x Realtek 2.5Gb Ethernet
3 x Audio jacks
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Software
Windows 10 64-bit (21H2 & later)
Special Features
- DIGI+ VRM
- LANGuard
- Overvoltage protection
- SafeSlot Core+
- Stainless-steel back I/O
ASUS Q-Design
- Q-Dashboard
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS Thermal Solution
- VRM heatsink design
ASUS EZ DIY
- ProCool
Non-stop Action
- Lightning Boot
Non-stop Challenger
- ASUS iCafe labs certified
Non-stop Durability
- Luminous anti-moisture coating
- USBGuard
Others
2 x SATA 6Gb/s cables
Miscellaneous
1 x I/O shield
1 x M.2 anchor package
Documentation
1 x Quick start guide
Physical Specification
9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
9.6 inch x 8.75 inch ( 24.4 cm x 22.2 cm )
Warranty Information
PRODUCT DESCRIPTION
ASUS EX-B860M-V5 Price in Bangladesh
ASUS EX-B860M-V5 is a compact yet high-performance motherboard built to support Intel® Core™ Ultra Processors with the new LGA1851 socket. Designed for durable, everyday use, this micro-ATX motherboard is a great choice for system builders who want reliability, speed, and next-gen support without taking up too much space. Whether you're a home user, an office worker, or a budget-conscious PC gamer, this board offers a solid foundation for building a future-ready desktop at an attractive price point.
Technical Details
ASUS EX-B860M-V5 motherboard is equipped with the Intel® B860 chipset and supports Intel® Core™ Ultra Processors (Series 2) with LGA1851 sockets. It offers two DDR5 DIMM slots that can accommodate up to 128GB of RAM, with support for overclocked speeds of up to 8800+ MT/s. The board includes dual M.2 slots: one PCIe 5.0 x4 and one PCIe 4.0 x4, allowing ultra-fast SSD storage configurations. Four SATA 6Gb/s ports are also available, and Intel® Rapid Storage Technology enables RAID 0/1/5/10. Expansion slots include a PCIe 4.0 x16 for a graphics card, a secondary x16 slot running at x4, and a PCIe x1 slot. Connectivity is handled by Realtek 2.5Gb Ethernet, USB Type-A and Type-C ports with up to 5Gbps speeds, and support for up to 7.1 Surround Sound via Realtek’s high-definition audio codec. The HDMI 2.1 and DisplayPort 1.4 ports support 4K@60Hz output, ensuring sharp and smooth visuals for modern displays. Cooling and power management are efficient with 3 fan headers, a ProCool power connector, and VRM heatsinks. With features like ASUS LANGuard, SafeSlot Core+, DIGI+ VRM, and anti-moisture coating, this board is engineered for durability, making it perfect for 24/7 systems. It runs on Windows 11 and 10 (64-bit), and its UEFI AMI BIOS makes it easy to manage performance settings.
Availability and Usability
The ASUS EX-B860M-V5 is readily available at Tech Land BD, one of Bangladesh’s most trusted tech retailers. Customers can quickly get their hands on this motherboard at a competitive price, making it a go-to choice for budget builds or small form-factor desktops. It’s ideal for offices, internet cafes, and users who require consistent reliability with the option for future upgrades. With robust build quality, excellent connectivity, and superior compatibility, the ASUS EX-B860M-V5 Price in BD makes it an unbeatable option for value seekers. Tech Land BD ensures product authenticity, customer service, and nationwide delivery, making your upgrade journey smooth and reliable.
Features
- Supports DDR5 RAM up to 8800+ MT/s with 128GB capacity
- Dual M.2 slots with PCIe 5.0 and PCIe 4.0 support
- Realtek 2.5Gb Ethernet with ASUS LANGuard
- 4K@60Hz via HDMI 2.1 and DisplayPort 1.4
- ASUS 5X Protection III and anti-moisture coating
Get the ASUS EX-B860M-V5 Today at Tech Land BD
If you're looking for a feature-rich motherboard that doesn't compromise on performance or reliability, the ASUS EX-B860M-V5 is your ideal match. Whether you're building a compact gaming system or a dependable work PC, this motherboard delivers strong performance, excellent connectivity, and ASUS-level durability. Don’t miss your chance to grab the ASUS EX-B860M-V5 Price in Bangladesh at a great value—only at Tech Land BD. With genuine products, expert support, and fast shipping, there’s no better place to purchase this motherboard. Upgrade your PC today and experience next-gen performance in a smaller form factor!
