Product Information

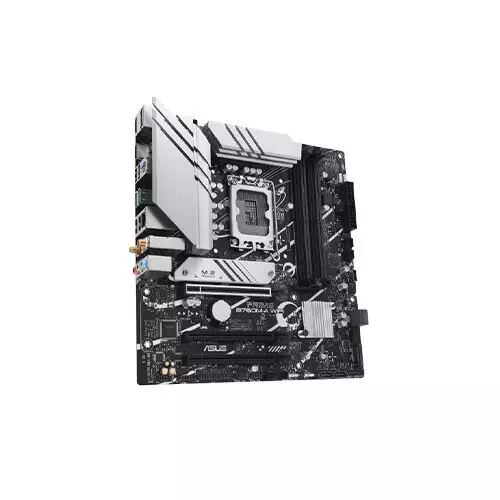

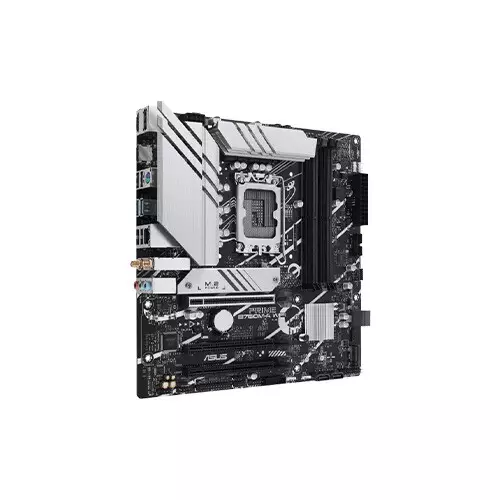

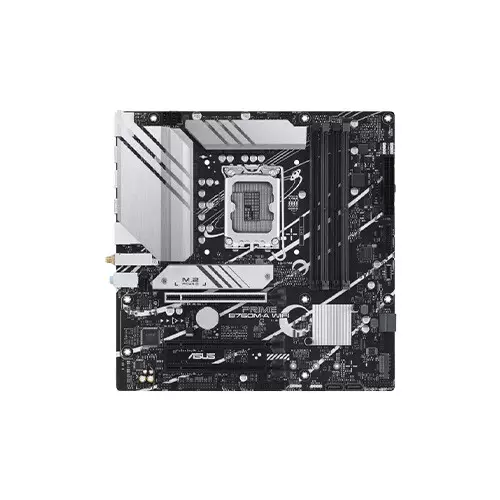

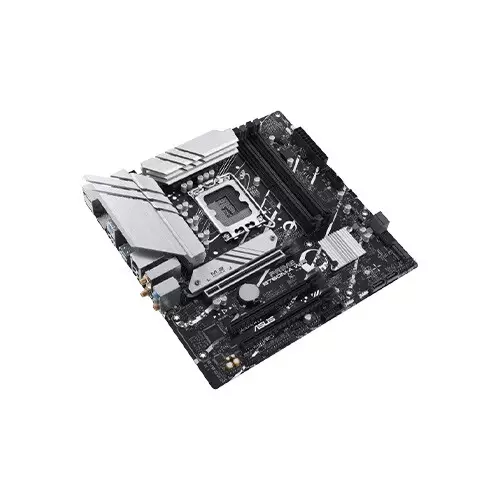

ASUS PRIME B760M-F WIFI DDR5 LGA 1700 micro-ATX Motherboard
- Intel Socket - LGA1700
- Chipset - Intel B760 Chipset
- Operating System - 11, Windows 10 64-bit
- Form Factor - micro-ATX
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron Processors*
Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0**
* Refer to https://www.asus.com/support/download-center/ for CPU support list.
** Intel Turbo Boost Max Technology 3.0 support depends on the CPU types.
Intel B760 Chipset
Mainboard
128 Mb Flash ROM, UEFI AMI BIOS
Memory
2 x DIMM slots, Max. 96GB, DDR5
8000(OC)/7800(OC)/7600(OC)/7400(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5800(OC)/5600/5400/5200/5000/4800 Non-ECC, Un-buffered Memory*
Dual channel memory architecture
Supports Intel Extreme Memory Profile (XMP) memory module
* Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and memory configuration, for more information please refer to CPU/Memory Support list under the Support tab of product information site or visit https://www.asus.com/support/download-center/. Adjustments will be made based on the specifications of mass-produced memory products available on the market.
Storage
Total supports 2 x M.2 slots and 4 x SATA 6Gb/s ports*
Intel Core Processors (14th & 13th & 12th Gen)
M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel B760 Chipset
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
* Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.
Graphics
1 x DisplayPort**
1 x HDMI port***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
*** Supports 4K@30Hz as specified in HDMI 1.4.
Networking & Connectivity
Ethernet
1 x Realtek 1Gb Ethernet
ASUS LANGuard
Wi-Fi 6
1x1 Wi-Fi 6 (802.11ax)
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth version may vary, please refer to the Wi-Fi module manufacturer's website for the latest specifications.
Audio & Microphone
Realtek 7.1 Surround Sound High Definition Audio CODEC*
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output
Ports
Intel CoreTM Processors (14th & 13th & 12th Gen)
1 x PCIe 5.0 x16 slot
Intel B760 Chipset
1 x PCIe 4.0 x1 slot
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
Fan and Cooling Related
1 x 4-pin CPU Fan header
2 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Miscellaneous
2 x Addressable RGB Gen 2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x Speaker header
1 x SPI TPM header (14-1pin)
1 x 10-1 pin Front Panel System header
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A)
1 x HDMI port
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 1Gb Ethernet port
3 x Audio jacks
Rear USB (Total 6 ports)
4 x USB 5Gbps ports (4 x Type-A)
2 x USB 2.0 ports (2 x Type-A）
Front USB (Total 4 ports)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 header supports 2 additional USB 2.0 ports
Software
Windows 11, Windows 10 64-bit
ASUS Exclusive Software
Armoury Crate
- Aura Sync
- Fan Xpert 2+
- Two-Way AI Noise Cancelation
AI Suite 3
- DIGI+ VRM
- PC Cleaner
ASUS DriverHub
-ASUS CPU-Z
Norton 360 Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
* For more software features, please visit the asus support site or refer to www.asus.com/support for additional information.
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM
- LANGuard
- Overvoltage Protection
- SafeSlot
- Stainless-Steel Back I/O
ASUS Q-Design
- Q-DIMM
- Q-LED Core
- Q-Slot
ASUS EZ DIY
- ProCool
ASUS Thermal Solution
- Aluminum heatsink design
Aura Sync
- Addressable RGB Gen 2 headers
Others
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS Wi-Fi moving antenna
1 x I/O Shield
2 x M.2 anchors
Documentation
1 x Quick start guide
Manageability
WOL by PME, PXE
Physical Specification
micro-ATX Form Factor
9.6 inch x 8.3 inch (24.4cm x 21.1cm)
Warranty Information
3-Years
PRODUCT DESCRIPTION
ASUS PRIME B760M-F WIFI DDR5 LGA1700 micro-ATX Motherboard Price in Bangladesh
ASUS PRIME B760M-F WIFI DDR5 The motherboard is built to deliver reliable performance, seamless connectivity, and advanced features for Intel’s latest processors. Designed with the Intel B760 chipset and supporting the LGA1700 socket, it is compatible with 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, ensuring flexibility for both mainstream users and enthusiasts. With DDR5 memory support up to 96GB and speeds reaching 8000+ MHz (OC), the PRIME B760M-F guarantees faster data transfer, reduced latency,
and smoother multitasking. It supports dual-channel architecture and XMP profiles, making it an ideal choice for gamers and professionals who demand high performance. For graphics, it provides 1x PCIe 5.0 x16 slot, ensuring maximum bandwidth for modern GPUs, along with HDMI 1.4 (4K@30Hz) and DisplayPort 1.4 (4K@60Hz) outputs. Storage options include 2x PCIe 4.0 M.2 slots and 4x SATA 6Gb/s ports, offering both speed and reliability for SSDs and HDDs. Connectivity is enhanced with Wi-Fi 6, Bluetooth 5.3, and a Realtek 1Gb Ethernet port for stable wired and wireless networking. The rear I/O panel provides 4x USB 5Gbps Type-A, 2x USB 2.0, HDMI, DisplayPort, LAN, Wi-Fi module, and audio jacks,
covering all essential needs. The audio system is powered by Realtek 7.1 Surround Sound HD Codec, with premium capacitors and shielding for clear sound quality. ASUS adds its signature 5X Protection III, including SafeSlot, DIGI+ VRM, LANGuard, and stainless-steel I/O, ensuring durability and stable operation. With Aura Sync RGB lighting headers, Fan Xpert 2+, Armoury Crate, and AI Noise Cancellation, users enjoy both performance and personalization. The compact micro-ATX form factor (24.4 x 21.1 cm) makes it suitable for space-saving builds without compromising on features. Backed by ASUS’s reliability and robust BIOS options, the ASUS PRIME B760M-F WIFI DDR5 is an excellent choice for gaming, content creation, and productivity in Bangladesh.
Does this motherboard support DDR5 RAM?
Yes, it supports DDR5 memory up to 96GB, with speeds up to 8000MHz (OC).
Can I use this motherboard for gaming?
Absolutely. It features PCIe 5.0 for modern GPUs, dual M.2 slots, Wi-Fi 6, and DDR5 support, making it well-suited for gaming builds.
What processors are compatible with the ASUS PRIME B760M-F WIFI?
It supports Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors with the LGA1700 socket.
