Product Information

Save: ৳1,200

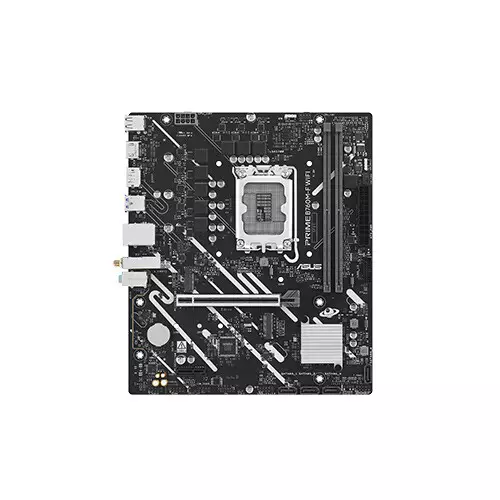

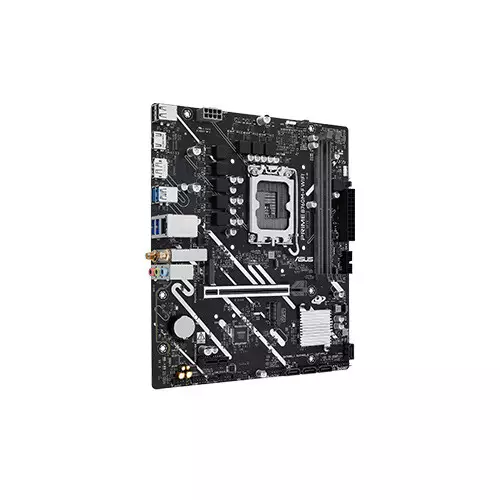

Asus PRIME B760M-F WIFI Intel DDR5 micro-ATX Motherboard
Asus PRIME B760M-F WIFI Intel DDR5 micro-ATX Motherboard Asus PRIME B760M-F WIFI Intel DDR5 micro-ATX Motherboard - 1 Asus PRIME B760M-F WIFI Intel DDR5 micro-ATX Motherboard - 2 Asus PRIME B760M-F WIFI Intel DDR5 micro-ATX Motherboard - 3
Discount Tag

Asus PRIME B760M-F WIFI Intel DDR5 micro-ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0082509006
Brand : Asus
Model : PRIME B760M-F WIFI
Warranty : No Warranty

Chipset - Intel B760
Memory size - 96GB
Memory type - DDR5
Form Factor - micro-ATX

Product Pricing

Discount Price

৳17,500 ৳18,700
+ Available Payment Method

EMI Start From*

৳616

PRODUCT SPECIFICATIONS

Processor

Supported CPU

Intel Socket LGA1700 for Intel Core
14th & 13th Gen Processors,
Intel Core 12th Gen, Pentium
Gold and Celeron Processors*

Supports Intel Turbo Boost
Technology 2.0 and Intel Turbo
Boost Max Technology 3.0**
Chipset

Intel B760 Chipset

Mainboard

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory

2 x DIMM slots, Max. 96GB, DDR5

8000(OC)/7800(OC)/7600(OC)/7400(OC)/
7200(OC)/7000(OC)/6800(OC)/6600(OC)/
6400(OC)/6200(OC)/6000(OC)/5800(OC)/
5600/5400/5200/5000/4800 Non-ECC,
Un-buffered Memory*

Dual channel memory architecture

Supports Intel® Extreme Memory
Profile (XMP) memory module

* Supported memory types, data rate
(speed), and number of DRAM modules
vary depending on the CPU
and memory configuration

Storage

Supported Storage

Total supports 2 x M.2 slots
and 4 x SATA 6Gb/s ports*

Intel® Core™ Processors
(14th  & 13th & 12th Gen)

M.2_1 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)

Intel® B760 Chipset

M.2_2 slot (Key M), type
2242/2260/2280 (supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

* Intel® Rapid Storage
Technology supports SATA RAID 0/1/5/10.

Graphics

Graphics

1 x DisplayPort**

1 x HDMI™ port***

* Graphics specifications may
vary between CPU types. Please
refer to www.intel.com for any updates.

** Supports max. 4K@60Hz as specified
in DisplayPort 1.4.

*** Supports 4K@30Hz as
specified in HDMI 1.4.

Networking & Connectivity

LAN

1 x Realtek 1Gb Ethernet

ASUS LANGuard
WiFi

Wi-Fi 6

1x1 Wi-Fi 6 (802.11ax)

Supports 2.4/5GHz frequency band
Bluetooth

Bluetooth® v5.3*

* The Bluetooth version may vary,
please refer to the Wi-Fi module
manufacturer's website for the
latest specifications

Audio & Microphone

Audio

Realtek 7.1 Surround Sound
High Definition Audio CODEC*

- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers

* A chassis with an HD audio
module in the front panel is
required to support 7.1 Surround
Sound audio output.

Ports

Slots

Intel CoreTM Processors
(14th & 13th & 12th Gen)

1 x PCIe 5.0 x16 slot

Intel B760 Chipset

1 x PCIe 4.0 x1 slot
Internal I/O Ports

Fan and Cooling Related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power Related

1 x 24-pin Main Power connector

1 x 8-pin +12V CPU Power connector

Storage Related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 5Gbps header supports
2 additional USB 5Gbps ports

1 x USB 2.0 header supports
2 additional USB 2.0 ports

Miscellaneous

2 x Addressable RGB Gen 2 headers

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (F_AUDIO)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin Front Panel System header
External I/O Ports

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x HDMI™ port

1 x DisplayPort

1 x Wi-Fi module

1 x Realtek 1Gb Ethernet port

3 x Audio jacks
USB

Rear USB (Total 6 ports)

4 x USB 5Gbps ports (4 x Type-A)

2 x USB 2.0 ports (2 x Type-A）

Front USB (Total 4 ports)

1 x USB 5Gbps header supports
2 additional USB 5Gbps ports

1 x USB 2.0 header supports
2 additional USB 2.0 ports

Software

Operating System

Windows 11, Windows 10 64-bit
Software Features

ASUS Exclusive Software

Armoury Crate

- Aura Sync

- Fan Xpert 2+

- Two-Way AI Noise Cancelation

AI Suite 3

- DIGI+ VRM

- PC Cleaner

ASUS DriverHub

-ASUS CPU-Z

Norton 360 Deluxe
(60 Days Free Trial)

WinRAR (40 Days Free Trial)

UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

* For more software features,

Special Features

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS EZ DIY

- ProCool

ASUS Thermal Solution

- Aluminum heatsink design

Aura Sync

- Addressable RGB Gen 2 headers

Others

Accessories

Cables

2 x SATA 6Gb/s cables

Miscellaneous

1 x ASUS Wi-Fi moving antenna

1 x I/O Shield

2 x M.2 anchors

Documentation

1 x Quick start guide

Physical Specification

Form Factor

micro-ATX
Dimension

9.6 inch x 8.3 inch (24.4cm x 21.1cm)

Warranty Information

Warranty

3 years

PRODUCT DESCRIPTION

Asus PRIME B760M-F WIFI Intel DDR5 Micro-ATX Motherboard in Bangladesh

Asus PRIME B760M-F WIFI Intel DDR5 Micro-ATX Motherboard is a high-performance and feature-rich motherboard designed for gamers, content creators, and professionals, now available in Bangladesh at the best price from Tech Land BD. Powered by the Intel B760 chipset and supporting the Intel LGA1700 socket, it is compatible with the latest 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, delivering outstanding performance and stability for demanding tasks.

This board supports dual-channel DDR5 memory up to 96 GB with speeds up to 8000 (OC) MHz, ensuring faster data processing, enhanced multitasking, and a smoother gaming experience. For graphics, it features DisplayPort 1.4, supporting 4K@60Hz, and HDMI 1.4, supporting 4K@30Hz, making it ideal for high-resolution displays. Expansion options include a PCIe 5.0 x16 slot and a PCIe 4.0 x1 slot, providing future-ready compatibility with the latest GPUs and expansion cards. Storage is also robust, featuring dual PCIe 4.0 M.2 slots and four SATA 6Gb/s ports,

which support RAID configurations for both speed and data security. Networking and connectivity are ensured with Realtek 1Gb Ethernet, ASUS LANGuard, Wi-Fi 6, and Bluetooth 5.3, providing fast, stable, and reliable connections. The rear I/O offers six USB ports (USB 5Gbps and USB 2.0), audio jacks with Realtek 7.1 HD Audio CODEC, and display outputs, while internal connectors include addressable RGB headers, multiple fan headers, and support for ASUS Aura Sync for customizable RGB lighting.

Enhanced with ASUS 5X Protection III, Q-Design, DIGI+ VRM, and premium cooling solutions, it guarantees durability, easy installation, and reliable performance. Compact in a Micro-ATX form factor (24.4 x 21.1 cm), the Asus PRIME B760M-F WIFI is a perfect choice for building a powerful yet space-efficient PC. Get this motherboard today at Tech Land BD for the best price in Bangladesh and elevate your computing experience.

What CPU socket does it support?

It supports Intel 12th and 13th Gen CPUs with the LGA 1700 socket.

What memory type is supported?

It supports DDR5 RAM up to 6400 MHz (OC).

How many RAM slots are available?

4 DIMM slots support up to 128GB RAM.



CUSTOMER REVIEWS

Overall Rating

0 out of 5 stars
0
Total Reviews

Login to write a review.

5 star
0
4 star
0
3 star
0
2 star
0
1 star
0

No reviews yet

Be the first to share your thoughts about this product.

What is the Asus PRIME B760M-F WIFI Intel DDR5 micro-ATX Motherboard Price in Bangladesh 2026 ?

The Asus PRIME B760M-F WIFI Price in BD is 17,500৳ . This Asus PRIME B760M-F WIFI Intel DDR5 micro-ATX Motherboard Manufacturing by Asus Comes With No Warranty Warranty & Based on 0 reviews. Tech Land BD Offers you Asus PRIME B760M-F WIFI by 17,500৳ and its regular price is 18,700৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
