Product Information

Save: ৳2,200

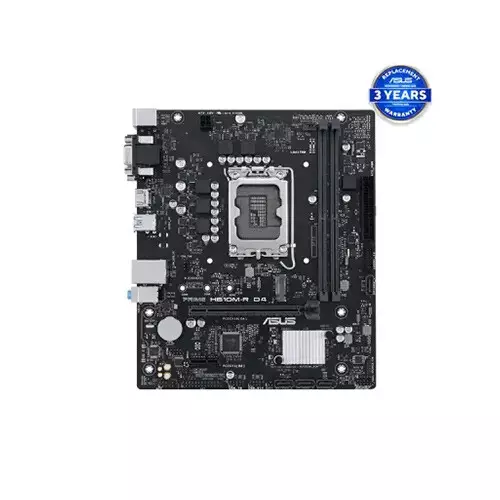

ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard
ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard - 0 ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard - 0 ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard - 0
Discount Tag

ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0082508036
Brand : Asus
Model : PRIME H610M-R D4
Warranty : No Warranty
  • Chipset Intel H610 Chipset
  • Memory size - 64GB
  • Memory type - DDR4
  • Ethernet - 1 x Realtek 1Gb Ethernet

Product Pricing

Night Offer Price 00:00:00

৳10,300 ৳12,500
+ Available Payment Method

EMI Start From*

৳363

PRODUCT SPECIFICATIONS

Processor

Supported CPU

Intel Socket LGA1700 for Intel Core
14th & 13th Gen Processors,
Intel Core 12th Gen, Pentium
Gold and Celeron Processors*


Supports up to Intel 65W CPU

Supports Intel Turbo Boost
Technology 2.0 and Intel
Turbo Boost Max Technology 3.0**


* Refer to www.asus.com for CPU support list.

** Intel Turbo Boost Max Technology
3.0 support depends on the CPU types.
Chipset

Intel H610 Chipset

Mainboard

BIOS

128 Mb Flash ROM, UEFI AMI BIOS

Memory

Memory

2 x DIMM, Max. 64GB, DDR4 3200
/3000/2933/2800/2666/2400/2133

Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Storage

Supported Storage

Total supports 1 x M.2
slot and 4 x SATA 6Gb/s ports

Intel H610 Chipset


M.2 slot (Key M), type 2242/2260/2280
(supports PCIe 3.0 x4 mode)

4 x SATA 6Gb/s ports

Graphics

Graphics

1 x DisplayPort**

1 x VGA port

1 x HDMITM port***


* Graphics specifications may vary
between CPU types. Please refer
to www.intel.com for any updates.

** Supports max. 4K@60Hz as
specified in DisplayPort 1.4.

*** Supports 4K@60Hz as
specified in HDMITM 2.1.

Networking & Connectivity

LAN

1 x Realtek 1Gb Ethernet

Audio & Microphone

Audio

Realtek 7.1 Surround Sound
High Definition Audio CODEC*

- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback


Audio Features

- Audio Shielding

- Premium audio capacitors

- Dedicated audio PCB layers


* A chassis with an HD audio
module in the front panel is
required to support 7.1 Surround
Sound audio output.

Ports

Slots

Intel Core Processors
(14th & 13th & 12th Gen)

1 x PCIe 4.0 x16 slot


Intel H610 Chipset

1 x PCIe 3.0 x1 slot


- To ensure compatibility
of the device installed, please refer to

https://www.asus.com/
support/ for the list of supported peripherals.
Internal I/O Ports

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header


Power related

1 x 24-pin Main Power connector

1 x 4-pin +12V Power connector


Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports


USB

1 x USB 3.2 Gen 1(5G) header
supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers support
additional 4 USB 2.0 ports


Miscellaneous
1 x Clear CMOS header
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (AAFP)
1 x LPT header
1 x Speaker header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin System Panel header
External I/O Ports

2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

1 x DisplayPort

1 x VGA port

1 x HDMITM port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard (purple) port

1 x PS/2 Mouse (green) port
USB

Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1(5G) ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)


Front USB (Total 6 ports)

1 x USB 3.2 Gen 1(5G) header
supports additional 2 USB 3.2 Gen 1 ports

2 x USB 2.0 headers
support additional 4 USB 2.0 ports

Software

Operating System

Windows 11 64-bit,
Windows 10 64-bit
Software Features

ASUS Exclusive Software

Armoury Crate

AI Suite 3

EPU

DIGI+ VRM

PC Cleaner

ASUS CPU-Z

Norton 360 for Deluxe
(60 Days Free Trial)

WinRAR


UEFI BIOS

ASUS EZ DIY

- ASUS CrashFree BIOS 3

- ASUS EZ Flash 3

- ASUS UEFI BIOS EZ Mode

Special Features

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- LANGuard

- Overvoltage Protection

- SafeSlot Core

- Stainless-Steel Back I/O


ASUS Q-Design

- Q-DIMM

- Q-Slot

- Q-LED Core


ASUS Thermal Solution

- Aluminum heatsink design

Others

Accessories

Cables

2 x SATA 6Gb/s cables


Miscellaneous

1 x I/O Shield

1 x M.2 ANCHOR


Documentation

1 x User guide

Physical Specification

Form Factor

mATX Form Factor

8.9 inch x 7.7 inch
(22.6 cm x 19.5 cm )

Warranty Information

Warranty

3 years

PRODUCT DESCRIPTION

ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard in Bangladesh

ASUS PRIME H610M-R D4 Intel LGA 1700 Micro-ATX Motherboard, available in Bangladesh at Tech Land BD, is a dependable and budget-friendly choice for building a stable and efficient PC. Designed to support Intel 14th, 13th, and 12th Gen Core, Pentium Gold, and Celeron processors with LGA1700 socket, it ensures compatibility with the latest CPU technologies, including Intel Turbo Boost 2.0 and Turbo Boost Max 3.0 (CPU dependent). Equipped with the Intel H610 chipset, it supports up to 64GB DDR4 memory across two DIMM slots, with speeds reaching 3200MHz for smooth multitasking and productivity. For display output, it offers DisplayPort 1.4, HDMI 2.1, and VGA ports, enabling resolutions up to 4K@60Hz, depending on the processor. Expansion options include a PCIe 4.0 x16 slot for graphics cards and a PCIe 3.0 x1 slot for other add-on cards. Storage is handled by 1 x M.2 PCIe 3.0 x4 slot and 4 x SATA 6Gb/s ports, providing flexibility for both SSD and HDD configurations. Connectivity features include a Realtek 1Gb Ethernet port for stable networking and multiple USB options with USB 3.2 Gen 1 and USB 2.0 ports on both the front and rear panels. The Realtek 7.1 Surround Sound HD Audio CODEC with premium capacitors, audio shielding, and dedicated PCB layers delivers clear, immersive sound quality. Built with ASUS 5X Protection III technologies, such as DIGI+ VRM, LANGuard, SafeSlot Core, and stainless-steel back I/O, it ensures long-lasting durability. User-friendly features like Q-DIMM, Q-Slot, and Q-LED Core simplify assembly and troubleshooting. With an aluminum heatsink for efficient cooling and compact mATX dimensions (22.6 x 19.5 cm), it fits easily into most cases. Backed by a 3-year replacement warranty in Bangladesh from Tech Land BD, the ASUS PRIME H610M-R D4 is a solid choice for anyone seeking a reliable motherboard for home, office, or entry-level gaming builds.

Which processors are compatible with the ASUS PRIME H610M-R D4?

It supports Intel 12th, 13th, and 14th Gen Core, Pentium Gold, and Celeron processors with LGA 1700 socket.

What type of memory does this motherboard support?

It supports DDR4 memory up to 64GB, with speeds up to 3200MHz.

Does it have M.2 SSD slots?

Yes, it has 1× M.2 slot supporting PCIe 3.0 x4 and SATA modes.
