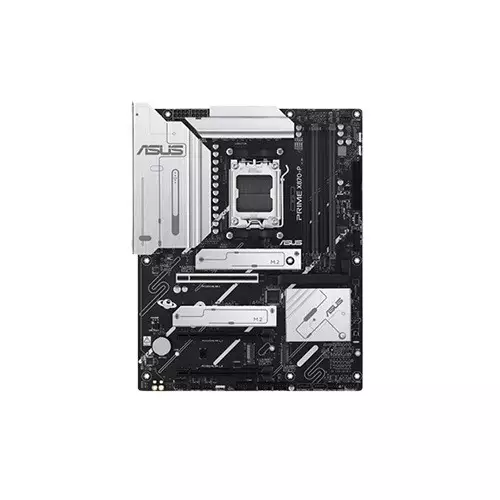

ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard
ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard - 1 ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard - 2

ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0122506779
Brand : Asus
Model : PRIME X870-P-CSM
Warranty : 3-Years
  • Socket: AMD Socket AM5
  • Memory: 4 x DIMM slots, max. 192GB, DDR5
  • Storage: Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports
  • Chipset: AMD X870 Chipset

    • ⌨️ PC BUILD + FREE KL-139 KEYBOARD

    Product Pricing

    Night Offer Price 00:00:00

    ৳41,000 ৳50,000
    + Available Payment Method

    EMI Start From*

    ৳1,444

    PRODUCT SPECIFICATIONS

    Processor

    CPU AMD Socket AM5 for AMD Ryzen 9000 & 8000 & 7000 Series Desktop Processors*

    * Refer to https://www.asus.com/support/download-center/ for CPU support list.

    Mainboard

    Chipset AMD X870 Chipset
    BIOS 256 Mb Flash ROM, UEFI AMI BIOS

    Memory

    Memory 4 x DIMM slots, max. 192GB, DDR5

    Supports up to 8000+MT/s(OC) with Ryzen 9000 & 8000 & 7000 Series Processors

    ECC and Non-ECC, Un-buffered DIMM*

    Dual channel memory architecture


    Supports AMD Extended Profiles for Overclocking (EXPO)

    ASUS Enhanced Memory Profile (AEMP)

    * Adjustments will be made based on the specifications of mass-produced memory products available on the
    market.

    * Supported memory types, data rate (speed), and number of DRAM modules vary depending on the CPU and
    memory configuration, for more information please refer to CPU/Memory Support list under the Support
    tab of product information site or visit https://www.asus.com/support/download-center/.

    * Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.

    Storage

    Storage Supports 4 x M.2 slots and 2 x SATA 6Gb/s ports

    AMD Ryzen 9000 & 7000 Series Desktop Processors

    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)

    AMD Ryzen 8000 Series Desktop Processors

    M.2_1 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

    AMD X870 Chipset

    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)*

    M.2_4 slot (Key M), type 2280 (supports PCIe 3.0 x2 mode)**

    2 x SATA 6Gb/s ports**

    * PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2

    will be disabled when M.2_3 runs.

    ** M.2_4 shares bandwidth with SATA6G_1 and SATA6G_2. M.2_4 will be disabled when SATA6G_1 or SATA6G_2 runs.

    AMD RAIDXpert2 Technology

    Ryzen™ 9000 Series Processors: RAID 0/1/5/10

    Ryzen™ 8000 Series Processors: RAID 0/1

    Ryzen™ 7000 Series Processors: RAID 0/1/10

    Graphics

    Graphics 1 x HDMI port**

    2 x USB4 (40Gbps) ports support USB Type-C display outputs***

    * Graphics specifications may vary between CPU types. Please refer to AMD CPU specifications.

    ** Supports 4K@60Hz as specified in HDMI 2.1.

    *** Supports max. 4K@60Hz as specified in DisplayPort 1.4a.

    *** VGA resolution support depends on processors' or graphic cards' resolution.

    Networking & Connectivity

    Ethernet 1 x Realtek 2.5Gb Ethernet

    ASUS LANGuard

    Audio & Microphone

    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC*

    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    - Supports up to 24-Bit/192 kHz playback

    Audio Features

    - Audio Shielding

    - Premium audio capacitors

    - Dedicated audio PCB layers

    * A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

    Ports

    I/O Port 2 x USB4 (40Gbps) ports (2 x USB Type-C)

    1 x USB 10Gbps port (1 x Type-A)

    3 x USB 5Gbps ports (3 x Type-A)

    4 x USB 2.0 ports (4 x Type-A)

    1 x HDMI port

    1 x Realtek 2.5Gb Ethernet port

    3 x Audio jacks

    1 x BIOS FlashBack button
    Internal I/O Ports Fan and Cooling Related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    1 x 4-pin AIO Pump header

    4 x 4-pin Chassis Fan headers



    Power Related

    1 x 24-pin Main Power connector

    2 x 8-pin +12V CPU Power connectors



    Storage Related

    4 x M.2 slots (Key M)

    2 x SATA 6Gb/s ports



    USB

    1 x USB 10Gbps connector (supports USB Type-C)

    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    2 x USB 2.0 headers support 4 additional USB 2.0 ports



    Miscellaneous

    3 x Addressable Gen 2 headers

    1 x Clear CMOS header

    1 x COM Port header

    1 x Front Panel Audio header (F_AUDIO)

    1 x S/PDIF Out header

    1 x SPI TPM header (14-1 pin)

    1 x 10-1 pin System Panel header
    USB Rear USB (Total 10 ports)

    2 x USB4 (40Gbps) ports (2 x USB Type-C)

    1 x USB 10Gbps port (1 x Type-A)

    3 x USB 5Gbps ports (3 x Type-A)

    4 x USB 2.0 ports (4 x Type-A)



    Front USB (Total 7 ports)

    1 x USB 10Gbps connector (supports USB Type-C)

    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    2 x USB 2.0 headers support 4 additional USB 2.0 ports

    * USB Type-C power delivery output: max. 5V/3A

    Software

    Operating System Windows 11, Windows 10 64-bit
    Software Features ASUS Exclusive Software

    Armoury Crate

    - Aura Creator

    - Aura Sync

    - Fan Xpert 4 (with AI Cooling II)

    - Power Saving

    ASUS DriverHub

    TurboV Core

    ASUS CPU-Z

    Norton 360 Deluxe (60 Days Free Trial)

    WinRAR (40 Days Free Trial)

    UEFI BIOS

    ASUS EZ DIY

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash 3

    - ASUS UEFI BIOS EZ Mode

    - ASUS MyHotkey

    Special Features

    Special Features ASUS 5X PROTECTION III

    - DIGI+ VRM (- Digital power design with DrMOS)

    - LANGuard

    - Overvoltage protection

    - SafeSlot

    - Stainless-steel back I/O

    ASUS Q-Design

    - M.2 Q-Latch

    - PCIe Slot Q-Release

    - Q-Dashboard

    - Q-DIMM

    - Q-LED Core

    - Q-Slot

    ASUS Thermal Solution

    - Flexible M.2 heatsink

    - VRM heatsink design

    ASUS EZ DIY

    - BIOS FlashBack button

    - BIOS FlashBack LED

    - ProCool

    - Pre-mounted I/O shield

    - SafeSlot

    Aura Sync

    - Addressable Gen 2 headers

    Others

    Accessories Cables

    2 x SATA 6Gb/s cables



    Miscellaneous

    1 x M.2 rubber package


    2 x Screw packages for M.2 SSD



    Documentation

    1 x ACC Express Activation Key Card

    1 x Quick start guide

    Physical Specification

    Expansion Slots AMD Ryzen 9000 & 7000 Series Desktop Processors*

    1 x PCIe 5.0 x16 slot (supports x16 mode)

    AMD Ryzen 8000 Series Desktop Processors

    1 x PCIe 4.0 x16 slot (supports x8/x4 mode)**

    AMD X870 Chipset

    2 x PCIe 4.0 x16 slots (support x1 mode)***

    * Please check the PCIe bifurcation table on the support site (https://www.asus.com/support/FAQ/1037507/).

    ** Specifications vary by CPU types.

    *** PCIEX16(G4)_1 and PCIEX16(G4)_2 share bandwidth with M.2_3. PCIEX16(G4)_1 and PCIEX16(G4)_2 will be disabled when
    M.2_3 runs.

    - To ensure compatibility of the device installed, please refer to https://www.asus.com/support/download-center/ for the list of
    supported peripherals.
    Form Factor ATX Form Factor

    12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )

    Technical Info

    Model PRIME X870-P-CSM
    Management WOL by PME, PXE

    Warranty Information

    Warranty 3-Years

    PRODUCT DESCRIPTION

    ASUS PRIME X870-P-CSM AMD AM5 ATX Motherboard in Bangladesh

    The ASUS PRIME X870-P-CSM AMD AM5 ATX motherboard is a top-tier solution designed for AMD Ryzen 9000, 8000, and 7000 Series processors. This motherboard comes packed with high-performance features like DDR5 memory support, PCIe 5.0 slots, advanced cooling, and cutting-edge connectivity options. It’s an excellent choice for users looking to build a powerful desktop system in Bangladesh with the latest AMD technologies.


    Technical Details

    The ASUS PRIME X870-P-CSM motherboard supports AMD’s AM5 socket, ensuring compatibility with Ryzen 9000, 8000, and 7000 Series desktop processors. It features four DIMM slots, supporting up to 192GB of DDR5 memory with speeds exceeding 8000MT/s. The board is equipped with an array of expansion options, including one PCIe 5.0 x16 slot for the latest Ryzen 9000 processors, and several PCIe 4.0 slots. The storage capacity is vast, with four M.2 slots supporting both PCIe 5.0 and PCIe 4.0 speeds and two SATA 6Gb/s ports. For connectivity, the board offers 10 USB ports on the rear, including two USB4 (40Gbps) Type-C ports, and a Realtek 2.5Gb Ethernet port for ultra-fast network connections. Additionally, the board is loaded with advanced features such as ASUS Aura Sync RGB lighting, BIOS FlashBack, and a Realtek 7.1 Surround Sound HD audio codec for immersive audio experiences.


    Availability and Usability

    The ASUS PRIME X870-P-CSM AMD AM5 ATX motherboard is available at Tech Land BD, one of the most trusted retailers for high-quality tech products in Bangladesh. Its cutting-edge features, like PCIe 5.0 support, DDR5 compatibility, and advanced thermal solutions, make it ideal for gaming enthusiasts, professional content creators, and those seeking to build high-performance desktops. Whether you're upgrading or building a new system, this motherboard provides seamless compatibility with the latest AMD processors, ensuring peak performance. For users seeking the ASUS PRIME X870-P-CSM Price in BD, Tech Land BD offers competitive pricing, making it an ideal place to purchase this top-tier motherboard.


    Highlights

    • Supports AMD Ryzen 9000, 8000, and 7000 Series processors.
    • Equipped with PCIe 5.0 and PCIe 4.0 slots for ultra-fast performance.
    • Four M.2 slots and two SATA ports for expanded storage options.
    • DDR5 memory support with speeds up to 8000MT/s (OC).
    • Realtek 2.5Gb Ethernet and USB4 ports for enhanced connectivity.


    Get the ASUS PRIME X870-P-CSM from Tech Land BD Today!

    Don't miss out on the opportunity to enhance your desktop's performance with the ASUS PRIME X870-P-CSM AMD AM5 ATX motherboard. Offering exceptional support for the latest AMD Ryzen processors, high-speed memory, and advanced connectivity options, this motherboard ensures your system can handle even the most demanding tasks. Tech Land BD offers the best pricing and availability for this premium motherboard, so act fast! For those searching for ASUS PRIME X870-P-CSM Price in Bangladesh, now is the perfect time to make your purchase and upgrade your system to cutting-edge performance levels. Visit Tech Land BD today and bring home the ASUS PRIME X870-P-CSM for an unparalleled computing experience.
