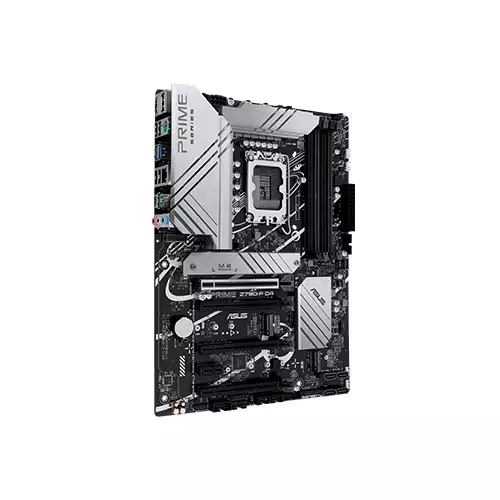

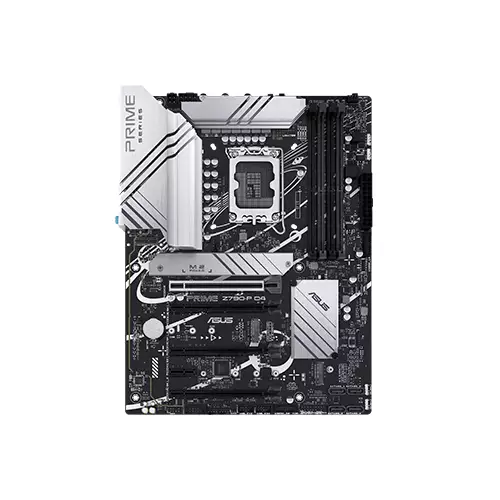

ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD

ASUS PRIME Z790-P D4-CSM 12TH AND 13TH GEN ATX MOTHERBOARD

The ASUS PRIME Z790-P D4-CSM is an ATX form factor motherboard designed to support the 12th and 13th generation Intel Core processors, Pentium Gold, and Celeron processors. It has an Intel Z790 chipset and supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0. The motherboard has four DIMM slots with a maximum capacity of 128GB of DDR4 memory at speeds up to 5333MHz (OC). It also features OptiMem II technology and supports Intel Extreme Memory Profile (XMP). Graphics capabilities include one DisplayPort and one HDMI port, which can support up to 4K@60Hz resolution. Additionally, it has three PCIe 4.0 x16 slots, one PCIe 5.0 x16 slot (supported by 13th & 12th Gen Processors), and one PCIe 3.0 x1 slot. Storage options include three M.2 slots and four SATA 6Gb/s ports.

The motherboard also features Realtek 2.5Gb Ethernet, vertical M.2 slot only (Key E, CNVi & PCIe) for wireless and Bluetooth (Wi-Fi module sold separately), and multiple USB ports including one USB 3.2 Gen 2x2 port (1x Type-C), one USB 3.2 Gen 2 port (1x Type-A), two USB 3.2 Gen 1 ports (2x Type-A), and four USB 2.0 ports (4x Type-A). Audio capabilities include Realtek 7.1 Surround Sound High Definition Audio CODEC with dedicated audio PCB layers, premium audio capacitors, and audio shielding. ASUS PRIME Z790-P D4-CSM has ASUS 5X Protection III for security features such as DIGI+ VRM (- Digital power design with DrMOS), LANGuard, Overvoltage Protection, SafeSlot Core+, and Stainless-Steel Back I/O. The motherboard also features ASUS Q-Design such as Q-DIMM, Q-Slot, and Q-LED Core for easy installation and troubleshooting. ASUS Thermal Solution includes a flexible M.2 heatsink and VRM heatsink design. Additionally, it has ASUS EZ DIY features like ProCool and Aura Sync. The motherboard comes with several software features such as Armoury Crate, AI Suite 3, TurboV EVO, PC Cleaner, DIGI+ VRM, ASUS CPU-Z, Norton 360 Deluxe (60 Days Free Trial), WinRAR, and UEFI BIOS EZ Mode.

The board has BIOS with 192 (128+64) Mb Flash ROM and UEFI AMI BIOS. It also has various internal I/O connectors including fan and cooling related headers, power-related headers, storage-related headers, and other miscellaneous headers. Accessories included with the motherboard are two SATA 6Gb/s cables, one I/O shield, one M.2 rubber package, two screw packages for M.2 SSD, one ACC Express Activation Key Card, and one user guide. The motherboard supports Windows 11 and Windows 10 64-bit operating systems. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Asus Motherboard available at Techland BD is well recognized. The large selection of Asus Motherboard available at Techland BD is well recognized.
