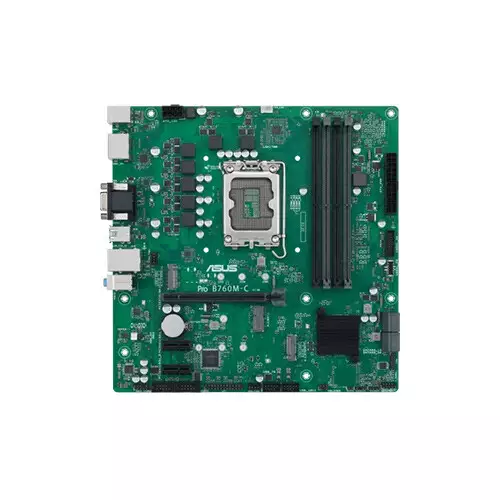

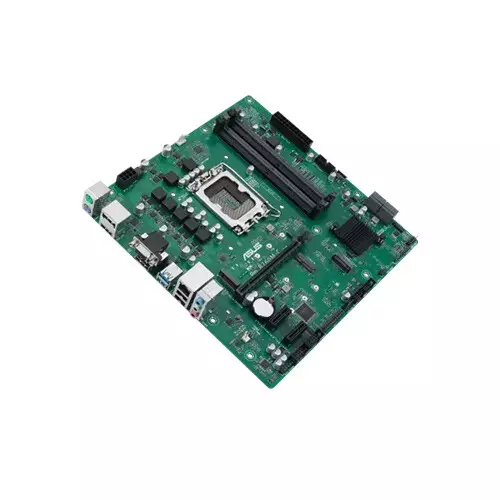

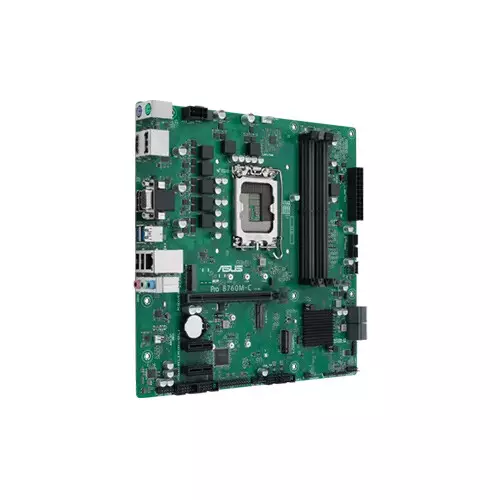

ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard
ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard - 1 ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard - 2 ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard - 3
Discount Tag

ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard

1 Reviews
Stock : In Stock
PID : P0082512011
Brand : Asus
Model : PRO B760M-C-CSM
Warranty : 3 Years

Chipset - Intel B760 Chipset

Form Factor - mATX

BIOS - 128Mb Flash ROM

Slots - 4 x DIMM

Product Pricing

Night Offer Price 00:00:00

৳16,700 ৳17,900
+ Available Payment Method

EMI Start From*

৳588

PRODUCT SPECIFICATIONS

Processor

Supported CPU

Intel Socket LGA1700 for 14th 13th Gen
Intel Core Processors & 12th Gen
Intel Core, Pentium Gold and Celeron Processors

Supports Intel Turbo Boost Technology 2.0
and Intel Turbo Boost Max Technology 3.0
Chipset

Intel B760 Chipset

Mainboard

BIOS

128Mb Flash ROM

Memory

Memory

Type

DDR5

Slots

4 x DIMM

Supported Memory

DDR5 6200(OC)/ 6000(OC)/ 5800(OC)/
5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/
4800 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel Extreme Memory Profile (XMP)

Optimem II

Maximum Memory

Max. 192GB

Storage

Raid

Intel Rapid Storage Technology
supports SATA RAID 0/1/5/10.
Supported Storage

Total supports 2 x M.2 slots and 4 x SATA
6Gb/s ports*

Intel 13th & 12th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)

Intel B760 Chipset

M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4 mode)

4 x SATA 6Gb/s ports

Graphics

Graphics

2 x DisplayPort**

1 x VGA port

1 x HDMI port***

** Support max. 4K@60Hz as
specified in DisplayPort 1.4.

*** Supports 4K@60Hz as
specified in HDMI 2.1.

Networking & Connectivity

LAN

1 x Intel 1Gb Ethernet

ASUS LANGuard
WiFi

M.2 slot only (Key E, CNVi & PCIe)*

* Wi-Fi module is sold separately.

Audio & Microphone

Audio

Realtek 7.1 Surround Sound High Definition Audio CODEC*

- Supports: Jack-detection, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback

Ports

VGA

1 x VGA port
Slots

PCI

Intel 13th & 12th Gen Processors

1 x PCIe 4.0/3.0 x16 slot

Intel B760 Chipset

2 x PCIe 3.0 x1 slots
Internal I/O Ports

Fan and Cooling related

1 x 4-pin CPU Fan header

2 x 4-pin Chassis Fan headers

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 connector
(supports USB Type-C®)

1 x USB 3.2 Gen 1 header
supports 2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4
additional USB 2.0 ports

Miscellaneous

1 x Clear CMOS header

1 x Chassis Intrude header

2 x COM Port headers

1 x Front Panel Audio header (AAFP)

1 x COM debug header

1 x LPT header

1 x Mono-out header (with Amp IC)

1 x M.2 slot (Key E)

1 x SMBUS header

1 x Speaker header

1 x 10-1 pin System Panel header

TPM (Trusted Platform Module )

1 x SPI TPM header (14-1pin)
USB

Rear USB (Total 4 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

2 x USB 2.0 ports (2 x Type-A)

Front USB (Total 7 ports)

1 x USB 3.2 Gen 1 connector
(supports USB Type-C®)

1 x USB 3.2 Gen 1 header supports
2 additional USB 3.2 Gen 1 ports

2 x USB 2.0 headers support 4
additional USB 2.0 ports
HDMI

1 x HDMI

Software

Bundled Software

ASUS Exclusive Software

IT Management software supported

- ASUS Control Center Express (ACCE)

Special Features

Special Features

ASUS Q-Design

- Q-DIMM

- Q-LED Core

- Q-Slot

ASUS EZ DIY

- Box Headers

Bespoke Motherboard Design &
Business Focused Features

- ASUS Self Recovering BIOS

- ASUS Event Log

- ASUS Commercial BIOS kit*

- Anti-Moisture Coating

- 24/7 Reliability

- Overcurrent Protection

Physical Specification

Form Factor

mATX Form Factor

9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)

Warranty Information

Warranty

3 years

PRODUCT DESCRIPTION

ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard in Bangladesh

ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard is a versatile and high-performance solution designed for small to mid-sized desktop builds in Bangladesh, offering professional-grade reliability and expandability. Built on the Intel B760 chipset, it supports Intel Socket LGA1700 processors, including 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors, with full compatibility for Intel Turbo Boost Technology 2.0 and Turbo Boost Max 3.0, ensuring superior processing performance.
The motherboard includes 4 DDR5 DIMM slots supporting up to 192GB memory, with speeds up to 6200(OC) MHz, Intel XMP support, and Optimem II for improved stability and performance. Storage options include 2 M.2 slots (PCIe 4.0 x4) and 4 SATA 6Gb/s ports, along with Intel Rapid Storage Technology and RAID 0/1/5/10 support for flexible, high-speed storage configurations.
Graphics connectivity is extensive for a Micro-ATX board, featuring HDMI 2.1, VGA, and 2 DisplayPort outputs supporting up to 4K@60Hz. Networking includes a 1Gb Intel Ethernet port with ASUS LAN Guard, while Wi-Fi and Bluetooth connectivity can be added via optional M.2 Key E modules. Audio is powered by Realtek 7.1 Surround Sound High-Definition Audio CODEC, supporting up to 24-bit/192kHz playback, jack detection, and front panel jack retaking for high-quality audio performance.
Expansion options include 1 PCIe 4.0 x16 slot and 2 PCIe 3.0 x1 slots for graphics cards, add-on cards, and peripherals. The board also provides extensive internal I/O, including fan headers, TPM support, COM/LPT headers, system panel connectors, and USB headers for front-panel connectivity. Rear and front USB ports include USB 3.2 Gen 1 Type-A and Type-C ports, and USB 2.0 support.
ASUS’s Q-Design, Q-DIMM, Q-LED Core, and Q-Slot features, along with EZ DIY tools and commercial BIOS features, make installation, management, and maintenance simple and reliable. Designed in Micro-ATX 9.6×9.6-inch form factor, it fits most compact cases without compromising performance or expandability. With 24/7 reliability, anti-moisture coating, overcurrent protection, and a 3-year warranty, the ASUS PRO B760M-C-CSM is ideal for business, professional, and high-performance computing builds in Bangladesh.

ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard in Bangladesh from Tech Land BD:

Tech Land BD is a trusted destination in Bangladesh for authentic computer hardware, providing competitive prices, genuine products, and excellent customer support. When purchasing the ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard, customers can rely on a full warranty, fast delivery, and expert guidance. The motherboard’s compact Micro-ATX form factor, DDR5 support, and flexible storage options make it ideal for business, professional, or high-performance desktop builds. Tech Land BD ensures the best price in Bangladesh along with reliable after-sales service, making it the preferred choice for professionals and PC enthusiasts who demand both quality and performance in their computing setups.
FAQs

1. Which CPUs are compatible with this motherboard?

Supports 14th, 13th, and 12th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA1700 socket.

2. How much memory does it support?

It has 4 DDR5 DIMM slots, supporting up to 192GB with speeds up to 6200(OC) MHz and Intel XMP.

3. What storage options are available?

Supports 2 M.2 PCIe 4.0 x4 slots and 4 SATA 6Gb/s ports, with Intel RAID 0/1/5/10 support.

CUSTOMER REVIEWS

Overall Rating

5 out of 5 stars
1
Total Reviews

Login to write a review.

5 star
1
4 star
0
3 star
0
2 star
0
1 star
0
Sagor Mejba

Using this board in an office PC with Core i5 13400. Very stable performance, no crashes, and ASUS BIOS is easy to manage. Good choice for professional use.

08 August, 2025

What is the ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard Price in Bangladesh 2026 ?

The Asus PRO B760M-C-CSM Price in BD is 16,900৳ . This ASUS PRO B760M-C-CSM Intel Micro-ATX Motherboard Manufacturing by Asus Comes With 3 Years Warranty & Based on 1 reviews. Tech Land BD Offers you Asus PRO B760M-C-CSM by 16,900৳ and its regular price is 17,900৳ Which is also In Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
