Product Information

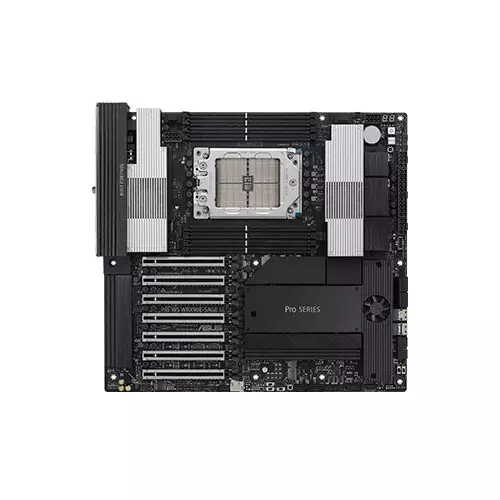

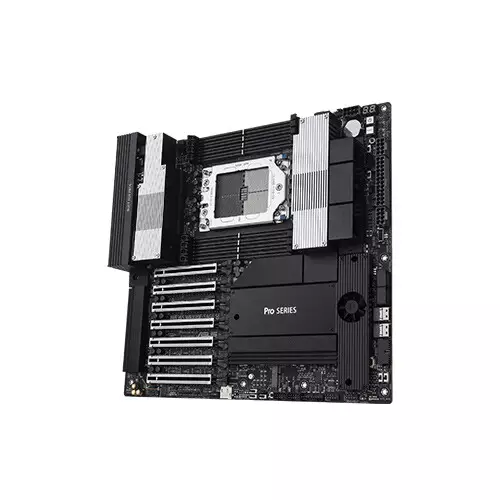

ASUS Pro WS WRX90E-SAGE SE EEB Workstation Motherboard
Chipset - AMD WRX90 Chipset
Memory - DDR5
Form Factor - EEB
Expansion Slots - 16 slots
2500TK INSTANT CASHBACK
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
AMD Socket sTR5 for Ryzen
Threadripper PRO 9000 & 7000 WX-Series*
AMD WRX90 Chipset
Mainboard
256 Mb Flash ROM, UEFI AMI BIOS(text-based)
Memory
8 x DIMM slots, DDR5, ECC Registered Memory*
8 Channel Memory Architecture
*Supported memory types, data rate (speed),
and number of DRAM modules varies depending on the CPU
Storage
Total supports 4 x M.2 slots, 2 x SlimSAS ports and
4 x SATA 6Gb/s ports*
AMD Ryzen Threadripper PRO 9000 & 7000
WX-Series Processors*
M.2_1 slot (Key M), type 2242/2260/2280/22110
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280/22110
(supports PCIe 5.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280
(supports PCIe 5.0 x4 mode)
AMD WRX90 Chipset
2 x SlimSAS slots support
PCIe 4.0 x4 mode NVMe device
4 x SATA 6Gb/s ports
* AMD RAIDXpert2 Technology
supports both PCIe RAID 0/1/5/10
and SATA RAID 0/1/5/10.
Networking & Connectivity
1 x Realtek 1Gb Ethernet
(Dedicated management LAN for AST2600)
1 x Intel dual 10Gb Ethernet
ASUS LANGuard
Audio & Microphone
Realtek ALC1220P Surround Sound
High Definition Audio CODEC*
- Impedance sense for front and
rear headphone outputs
- Internal audio Amplifier to
enhance the highest quality
sound for headphones and speakers
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR
stereo playback output and 113 dB
SNR recording input (Line-in)
- Supports up to 32-bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
*A chassis with an HD audio
module in the front panel is
required to support 5.1 Surround
Sound audio output.
* This motherboard will only support
up to 5.1 Surround Sound due to the
number of audio ports available
on the motherboard.
Ports
AMD Ryzen Threadripper
PRO 9000 & 7000 WX-Series Processors*
6 x PCIe 5.0 x16 slots
1 x PCIe 5.0 x16 slot (x8 mode)
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header
(with VRM FAN onboard)
1 x 4-pin M.2 Fan header
(with M.2 FAN onboard)
Power related
1 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
2 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector
supports USB Type-C
1 x USB 5Gbps header supports 2
additional USB 5Gbps ports
2 x USB 2.0 headers support an
additional 4 USB 2.0 ports
Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin system panel header
1 x Thermal sensor header
2 x USB 40Gbps (USB4) with
ASMedia ASM4242 controller
ports (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 port (2 x Type-A)
1 x VGA port
2 x mini DisplayPort IN
1 x Intel dual 10Gb Ethernet ports
1 x Realtek 1Gb Ethernet port
2 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Rear USB (Total 9 ports)
2 x USB 40Gbps (USB4) with
ASMedia ASM4242 controller ports (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support an additional 4 USB 2.0 ports
Software
Windows 11
Windows 10 64-bit
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey
IT Management software supported
- ASUS Control Center Express(ACCE)
Special Features
ASUS 5X PROTECTION III
- DIGI+ VRM (- Digital power design with SPS)
- ESD Guards
- LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- Q-Release Slim (with PCIe SafeSlot)
- Q-Code
- Q-Connector
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow],
VGA [white], Boot Device [yellow green])
- Q-Slot
ASUS Thermal Solution
- M.2 heatsink backplate and
onboard thermal pads
- M.2 heatsink
- Steel backplate
- VRM heatsink design with active fans
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool II
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Bespoke Motherboard Design &
Business-Focused Features
- 24/7 Reliability
- Overcurrent Protection
BMC Related
1 x BMC switch
1 x BMC LAN fixed IP switch
1 x IPMI switch
1 x Message LED header
1 x microSD card socket
2 x LAN LED headers
1 x Location LED header
1 x Location button header
1 x PSU_SMB header
1 x SMART_PSU switch
1 x VGA switch
1 x VGA header (Dedicated
Management for AST2600)
1 x VPP_I2C header
Others
Cables
2 x PCIe 8-pin to CPU power cables
1 x 24-pin power cable (Y cable)
2 x Mini DisplayPort cables
4 x SATA 6Gb/s cables
1 x Thermistor cable pack
Miscellaneous
1 x Q-connector
1 x M.2 Q-Latch package
1 x AMI license sticker
4 x M.2 rubber packages
1 x Screw package for M.2 Key E
Documentation
1 x ACC Express Activation Key Card
1 x Quick start guide
Physical Specification
EEB Form Factor
12 inch x 13 inch
(30.5 cm x 33 cm)
Warranty Information
3 years
PRODUCT DESCRIPTION
ASUS Pro WS WRX90E-SAGE SE EEB Workstation Motherboard in Bangladesh ASUS
Pro WS WRX90E-SAGE SE EEB Workstation Motherboard is a flagship, enterprise-grade motherboard designed for professional creators, engineers, and workstation users in Bangladesh seeking ultimate performance, reliability, and expandability. Powered by the AMD WRX90 chipset and supporting AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series processors via the sTR5 socket, this EEB motherboard offers unparalleled computational capabilities for high-end workloads, including 3D rendering,
AI simulations, scientific computing, and video production. With 8 DIMM slots supporting DDR5 ECC Registered Memory in an 8-channel architecture, it ensures extreme memory bandwidth and system stability for mission-critical applications. Storage options are extensive, featuring 4× M.2 PCIe 5.0 slots, 2× SlimSAS ports, and 4× SATA 6Gb/s ports, enabling flexible high-speed storage configurations and support for RAID 0/1/5/10 through AMD RAIDXpert2 technology.
The motherboard includes 6× PCIe 5.0 x16 slots and one additional x16 slot in x8 mode for professional GPU arrays, making multi-GPU setups seamless for rendering, AI, and compute-intensive tasks. Networking is robust, featuring dual 10Gb Intel Ethernet and a dedicated Realtek 1Gb management LAN with ASUS LAN Guard protection for secure,
high-speed connectivity. The onboard Realtek ALC1220P audio codec with high SNR stereo output ensures premium sound for professional multimedia work, while extensive USB connectivity, including USB4 40Gbps Type-C ports, USB 10Gbps Type-A ports, and front panel USB headers, offers high-speed peripheral support. Built with ASUS’s hallmark 5X PROTECTION III, DIGI+ VRM, SafeSlot, overvoltage protection, stainless steel I/O, and comprehensive thermal solutions including active VRM and M.2 cooling, the motherboard ensures durability and reliability under extreme workloads. BIOS management is facilitated by UEFI AMI BIOS, Crash Free BIOS 3, EZFlash Utility, and ASUS EZ DIY features, enabling effortless setup and maintenance.
The motherboard also supports ASUS Control Center Express (ACCE) for IT management, making it ideal for business-critical deployments. Designed in EEB form factor (12×13 inch), it offers ample space for multiple GPUs, large memory modules, and extensive cooling. With a 3-year official warranty, this workstation motherboard guarantees long-term reliability. Whether building a high-performance workstation for AI, 3D rendering, or professional computing, the ASUS Pro WS WRX90E-SAGE SE delivers unmatched performance, connectivity, and enterprise-grade durability at the best price in Bangladesh.
ASUS Pro WS WRX90E-SAGE SE EEB Motherboard in Bangladesh from Tech Land BD:
Tech Land BD is a trusted and leading retailer of premium PC hardware in Bangladesh, offering authentic products, competitive pricing, and excellent customer support. When buying the ASUS Pro WS WRX90E-SAGE SE EEB Workstation Motherboard, Tech Land BD guarantees genuine products with full warranty, ensuring peace of mind for professional users and enterprises. With fast delivery, expert guidance, and a smooth shopping experience, it is the ideal destination for high-performance workstation components. Tech Land BD provides the best price in Bangladesh and reliable after-sales support, making it the go-to store for enthusiasts, creators, and business-critical workstation builds.
FAQs
1. Which processors are compatible with this motherboard?
It supports AMD Ryzen Thread ripper PRO 9000 & 7000 WX-Series via the sTR5 socket.
2. How many memory slots does it have, and which type?
It has 8 DIMM slots for DDR5 ECC Registered Memory supporting 8-channel architecture.
3. What storage options are available?
Supports 4× M.2 PCIe 5.0 slots, 2× Slim SAS ports, and 4× SATA 6Gb/s ports with RAID 0/1/5/10 support.
