Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard

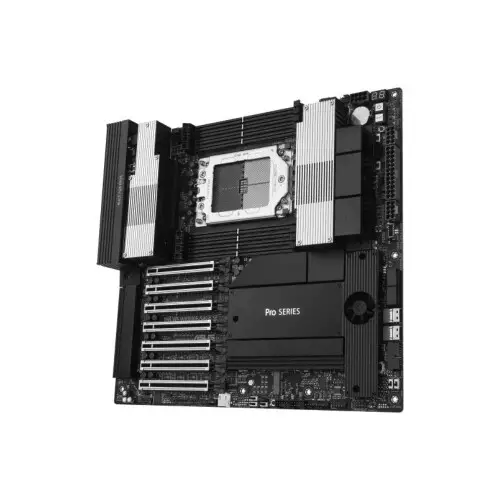

Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard - 1 Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard - 2
Discount Tag

Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard

1 Reviews
Stock : In Stock
PID : P0082510015
Brand : Asus
Model : Pro WS WRX90E-SAGE SE
Warranty : 3 Years
Chipset: AMD TRX50 Chipset
Socket: AMD Socket sTR5
AMD sTR5 socket supports up to 96-core CPUs
Ready for Advanced AI PC

Product Pricing

Night Offer Price 00:00:00

৳197,500 ৳210,000
+ Available Payment Method

EMI Start From*

৳6,954

PRODUCT SPECIFICATIONS

Processor

Supported CPU

AMD Socket sTR5 for Ryzen Threadripper PRO 7000 WX-Series
Chipset

AMD WRX90 Chipset

Mainboard

BIOS 256 Mb Flash ROM, UEFI AMI BIOS(text-based)

Memory

Memory
8 x DIMM slots, DDR5, ECC Registered Memory
8 Channel Memory Architecture

Storage

Supported Storage

Total supports 4 x M.2 slots, 2 x SlimSAS ports and 4 x SATA 6Gb/s ports

AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series Processors

M.2_1 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_2 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 5.0 x4 mode)

M.2_3 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)

AMD WRX90 Chipset

2 x SlimSAS slots support PCIe 4.0 x4 mode NVMe device

4 x SATA 6Gb/s ports

Networking & Connectivity

LAN

1 x Realtek 1Gb Ethernet (Dedicated management LAN for AST2600)

1 x Intel dual 10Gb Ethernet

ASUS LANGuard

Audio & Microphone

Audio
Realtek ALC1220P Surround Sound High Definition Audio CODEC
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
- Supports up to 32-Bit/192 kHz playback
Audio Features
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit

Ports

Slots

AMD Ryzen Threadripper PRO 9000 & 7000 WX-Series Processors

6 x PCIe 5.0 x16 slots

1 x PCIe 5.0 x16 slot (x8 mode)
Internal I/O Ports
Fan and Cooling related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x W_PUMP+ header
5 x 4-pin Chassis Fan headers
2 x 4-pin VRM Fan header (with VRM FAN onboard)
1 x 4-pin M.2 Fan header (with M.2 FAN onboard)
Power related
1 x 24-pin Main Power connectors
2 x 8-pin +12V Power connectors
2 x 8-pin PCIe to CPU power connectors
2 x 8-pin PCIe Power connector
Storage related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
2 x SlimSAS port
USB
1 x USB 20Gbps connector supports USB Type-C®
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports
Miscellaneous
1 x Chassis intrusion header
1 x COM port header
1 x FlexKey button
1 x Front panel audio header (F_AUDIO)
1 x LN2 mode jumper
1 x M.2 slot (Key E)
7 x ProbeIt measurement points
1 x ReTry button
1 x RSVD switch
1 x Slow mode switch
1 x Safe boot button
1 x SPI TPM header (14-1 pin)
1 x Start button
1 x 10-1 pin system panel header
1 x Thermal sensor header
External I/O Ports

2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C)

6 x USB 10Gbps ports (6 x Type-A)

1 x USB 2.0 port (2 x Type-A)

1 x VGA port

2 x mini DisplayPort IN

1 x Intel dual 10Gb Ethernet ports

1 x Realtek 1Gb Ethernet port

2 x Audio jacks

1 x BIOS FlashBack  button

1 x Clear CMOS button
USB
Rear USB (Total 9 ports)
2 x USB 40Gbps (USB4) with ASMedia ASM4242 controller ports (2 x USB Type-C)
6 x USB 10Gbps ports (6 x Type-A)
1 x USB 2.0 ports (2 x Type-A )
Front USB (Total 7 ports)
1 x USB 20Gbpsconnector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5G ports
2 x USB 2.0 headers support additional 4 USB 2.0 ports

Software

Operating System Windows 11 64-bit
Software Features
ASUS Exclusive Software
Armoury Crate
- Fan Xpert 4
ASUS CPU-Z
Adobe Creative Cloud (Free Trial)
Norton 360 for Deluxe (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUSTeK. EzFlash Utility
FlexKey
IT Management software supported
- ASUS Control Center Express(ACCE)

Special Features

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM (- Digital power design with SPS)

- ESD Guards

- LANGuard

- Overvoltage protection

- SafeSlot

- Stainless-steel back I/O

ASUS Q-Design

- M.2 Q-Latch

- Q-Release Slim (with PCIe SafeSlot)

- Q-Code

- Q-Connector

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- M.2 heatsink backplate and onboard thermal pads

- M.2 heatsink

- Steel backplate

- VRM heatsink design with active fans

ASUS EZ DIY

- BIOS FlashBack™ button

- BIOS FlashBack™ LED

- Clear CMOS button

- ProCool II

- Pre-mounted I/O shield

- SafeSlot

- SafeDIMM

Bespoke Motherboard Design & Business Focused Features

- 24/7 Reliability

- Overcurrent Protection

BMC Related

1 x BMC switch

1 x BMC LAN fixed IP switch

1 x IPMI switch

1 x Message LED header

1 x microSD card socket

2 x LAN LED headers

1 x Location LED header

1 x Location button header

1 x PSU_SMB header

1 x SMART_PSU switch

1 x VGA switch

1 x VGA header (Dedicated Management for AST2600)

1 x VPP_I2C header

Others

Accessories Cables

2 x SATA 6Gb/s cables

1 x CPU 8-pin to PCIe 8-pin adapter cable package

1 x Thermistor cable pack

Miscellaneous

1 x ASUS 2x2 Dual-Band Wi-Fi moving antennas

1 x M.2 Q-Latch package (2 in 1)

2 x M.2 Rubber Packages

1 x Q-connector

Documentation

1 x ACC Express Activation Key Card

1 x QSG

Other Features

PCI 6 x PCIe 5.0 x16 slots, 1 x PCIe 5.0 x16 slot (x8 mode)

Physical Specification

Form Factor

EEB Form Factor, 12 inch x 13 inch (30.5 cm x 33 cm)

Technical Info

OS

Windows 11

Windows 10 64-bit

Warranty Information

Warranty 3 Years

PRODUCT DESCRIPTION

Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard

The Asus Pro WS WRX90E-SAGE SE is a premium EEB workstation motherboard engineered to deliver exceptional performance, scalability, and reliability for professional creators, engineers, and researchers. Built on the AMD WRX90 chipset, it supports the latest AMD Ryzen Threadripper PRO 7000 WX-Series processors, offering unparalleled multi-core computing power for demanding workloads such as 3D rendering, scientific modeling, AI development, and video editing.
With 8 DDR5 ECC Registered DIMM slots and an 8-channel memory architecture, it ensures high bandwidth and stability for data-intensive tasks. The board supports up to 4 M.2 PCIe 5.0 x4 slots, 2 SlimSAS ports, and 4 SATA 6Gb/s ports, allowing lightning-fast NVMe storage and flexible RAID configurations. For expansion, it includes six PCIe 5.0 x16 slots and one PCIe 5.0 x16 slot (x8 mode) — ideal for multi-GPU, capture cards, or storage accelerators,
making it a true powerhouse for workstation setups. Networking capabilities are top-tier, featuring dual Intel 10Gb Ethernet ports and a dedicated Realtek 1Gb management LAN with ASUS LANGuard protection for high-speed, reliable data transfers. Audio is powered by the Realtek ALC1220P codec, providing crystal-clear 32-bit/192kHz audio with premium capacitors and a dedicated PCB layer to minimize interference.
The board’s external I/O includes 2x USB4 40Gbps Type-C ports, 6x USB 10Gbps, 2x mini DisplayPort In, and essential buttons like BIOS FlashBack™ and Clear CMOS for convenience. Built with ASUS 5X PROTECTION III, it ensures long-term durability with features like SafeSlot, DIGI+ VRM, stainless-steel back I/O, and advanced ESD Guards.
The motherboard also incorporates ASUS Thermal Solutions with robust VRM heatsinks, onboard fans, and backplate cooling to maintain optimal temperatures during heavy loads. It comes equipped with extensive BMC management features, including IPMI, VGA switch, and dedicated management headers, making it ideal for server environments. Additional ASUS-exclusive features like Q-Code, Q-Connector, M.2 Q-Latch, and Pre-mounted I/O Shield simplify installation and troubleshooting. With support for Windows 11 and Windows 10 (64-bit), and bundled utilities like Armoury Crate, ASUS Control Center Express, and Fan Xpert 4, this motherboard is designed for peak efficiency, customization, and stability in any professional workstation.

Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard Price in BD

Purchase the Asus Pro WS WRX90E-SAGE SE AMD sTR5 EEB Workstation Motherboard from Tech Land BD to ensure you receive a 100% genuine product backed by an official 3-year brand warranty. Tech Land BD offers competitive pricing, expert after-sales support, and fast nationwide delivery, ensuring your workstation build is powered by authentic, high-performance components. Choose Tech Land BD for reliability, authenticity, and superior customer service in Bangladesh.
Asus Pro WS WRX90E-SAGE SE Motherboard

FAQs

Q1: Which processors are supported by the Asus Pro WS WRX90E-SAGE SE motherboard?

A1: It supports AMD Ryzen Thread ripper PRO 7000 WX-Series and 9000 WX-Series processors with the sTR5 socket.

Q2: How many GPUs can this motherboard support?

A2: It can support multiple GPUs through its six PCIe 5.0 x16 and one PCIe 5.0 x16 (x8) slots, ideal for rendering or AI workloads.

Q3: Does it include onboard networking options?

A3: Yes, it features dual Intel 10Gb Ethernet ports and a dedicated Realtek 1Gb management LAN for remote administration and ultra-fast networking.
