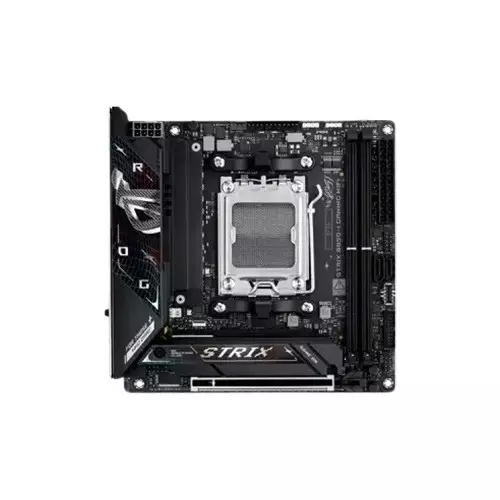

ASUS ROG STRIX B850-I GAMING WIFI AMD Mini-ITX Gaming Motherboard
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
7000 Series Desktop Processors
Refer to https://www.asus.com/support/
download-center/ for CPU support list.
Mainboard
Memory
9000 & 8000 & 7000 Series Processors
ECC and Non-ECC, Un-buffered DIMM
Dual channel memory architecture
Supports AMD Extended Profiles for Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed), and number
of DRAM modules vary depending on the CPU and memory
configuration, for more information please refer to CPU/Memory
Support list under the Support tab of product information site or
visit https://www.asus.com/support/download-center/.
Non-ECC, un-buffered DDR5 memory supports On-Die ECC function.
Storage
AMD Ryzen 7000 & 9000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 5.0x4 mode)
M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 5.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 (Key M), type 2242/2260/2280 (supports PCIe 4.0x4 mode)
M.2_2 (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
Specifications vary by CPU type.
Graphics
1 x USB 10Gbps ports support
USB Type-C display outputs
Graphics specifications may vary between
CPU types. Please refer to AMD CPU specifications.
Supports 4K@60Hz as specified in HDMI 2.1.
Supports max. 4K@60Hz as specified in DisplayPort 1.4a
VGA resolution support depends on the
processor's or graphic cards' resolution.
Networking & Connectivity
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth,
up to 2.9Gbps transfer rate.
Bluetooth v5.4
Wi-Fi features may vary depending on the operating system
For Windows 11, Wi-Fi 7 will require a 24H2 or later version
for full functions, Windows 11 21H2/22H2/23H2 only supports Wi-Fi 6E.
For Windows 10, only Wi-Fi 6 is supported.
Wi-Fi 6GHz frequency band and bandwidth regulations
may vary between countries.
The Bluetooth version may vary, please refer to the Wi-Fi
module manufacturer's website for the latest specifications
Ports
5 x USB 10Gbps port(s) (4 x
Type-A + 1 x USB Type-C with DP Alt mode)
2 x USB 2.0 port(s) (2 x Type-A)
1 x HDMI port
1 x Wi-Fi module
1 x Intel 2.5Gb Ethernet port
3 x Audio jacks
1 x Optical S/PDIF out port
1 x BIOS FlashBack button
1 x Clear CMOS button
1 x FlexKey button
1 x 4-pin CPU Fan header
1 x 4-pin Extra Flow Fan header
1 x 4-pin AIO Pump header
1 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
1 x 8-pin +12V CPU Power connector
Storage Related
2 x M.2 slots (Key M)
2 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector (supports USB Type-C)
1 x USB 5Gbps header supports 2 additional USB 5Gbps ports
1 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
2 x Addressable Gen 2 headers
1 x CPU Over voltage jumper
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front System Panel header
1 x Thermal Sensor header
1 x USB 20Gbps port(s) (1 x USB Type-C)
5 x USB 10Gbps port(s) (4 x Type-A + 1 x USB Type-C)
2 x USB 2.0 port(s) (2 x Type-A)
Front USB (Total 5 ports)
1 x USB 10Gbps
1 x USB 5Gbps header(s) support(s)
2 additional USB 5Gbps ports
1 x USB 2.0 header(s) support(s)
2 additional USB 2.0 ports
USB Type-C power delivery output: max. 5V/3A
Software
- ROG CPU-Z
- Dolby Atmos
ASUS Exclusive Software
Armoury Crate
- AIDA64 Extreme (60 days free trial)
- Aura Creator
- Aura Sync
- Fan Xpert 4
- GameFirst
- HWiNFO
- Power Saving
ASUS DriverHub
ASUS GlideX
TurboV Core
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Special Features
- 5K Black metallic capacitors
ASUS Q-Design
- M.2 Q-Latch
- M.2 Q-Slide
- PCIe Slot Q-Release Slim (with PCIe SafeSlot)
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow], VGA
[white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink backplate
- M.2 heatsink
ASUS EZ DIY
- BIOS FlashBack button
- BIOS FlashBack LED
- Clear CMOS button
- ProCool
- Pre-mounted I/O shield
- SafeSlot
- SafeDIMM
Aura Sync
- Addressable Gen 2 headers
Others
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x Cable ties package
1 x M.2 backplate Q-Latch package(s)
1 x M.2 Q-Slide package
1 x ROG key chain
1 x ROG Strix stickers
1 x M.2 backplate rubber package(s)
Documentation
1 x Quick Start guide
Physical Specification
1 x PCIe 5.0 x16 slot with Q-Release Slim
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot with Q-Release Slim
- To ensure compatibility with the device installed,
please refer to https://www.asus.com/support/download-center
/ for the list of supported peripherals.
Technical Info
Warranty Information
PRODUCT DESCRIPTION
ASUS ROG STRIX B850-I GAMING WIFI AMD Mini-ITX Gaming Motherboard in Bangladesh
ASUS ROG STRIX B850-I GAMING WIFI is a premium AMD Mini-ITX gaming motherboard designed for compact, high-performance builds, available at Tech Land BD. Built for AMD Ryzen 9000, 8000, and 7000 Series processors with the AM5 socket, this motherboard delivers exceptional performance for gaming and productivity. It supports DDR5 memory up to 8400+ MT/s (OC) with a maximum capacity of 128GB, featuring AMD EXPO (Extended Profiles for Overclocking) and ASUS Enhanced Memory Profile (AEMP) for optimized memory performance. Storage options include two M.2 slots (both PCIe 5.0 x4 with Ryzen 9000/7000 Series or PCIe 4.0 x4 with Ryzen 8000 Series) and two SATA 6Gb/s ports, ensuring fast and flexible storage solutions.
The motherboard features Wi-Fi 7 and Bluetooth 5.4 for ultra-fast wireless connectivity, along with an Intel 2.5Gb Ethernet port for wired networking. Graphics support includes HDMI 2.1 and USB Type-C with DisplayPort Alt mode, enabling 4K@60Hz output. The rear I/O panel offers USB 20Gbps Type-C, USB 10Gbps Type-A, and USB 2.0 Type-A ports, alongside 3 audio jacks and an optical S/PDIF out port. ASUS-exclusive features like Armoury Crate, Aura Sync RGB lighting, and ROG Q-Design (including M.2 Q-Latch and PCIe Slot Q-Release Slim) ensure ease of use and customization. With a 3-year warranty, the ASUS ROG STRIX B850-I GAMING WIFI is a powerful and reliable choice for compact gaming and workstation builds in Bangladesh.
What processors are compatible with the ASUS ROG STRIX B850-I GAMING WIFI?
The motherboard supports AMD Ryzen 9000, 8000, and 7000 Series processors with the AM5 socket. It is optimized for high-performance gaming and productivity tasks.
What type of memory does this motherboard support?
The motherboard supports DDR5 memory with speeds of up to 8400+ MT/s (overclocked) and a maximum capacity of 128GB. It also features AMD EXPO (Extended Profiles for Overclocking) and ASUS Enhanced Memory Profile (AEMP) for enhanced memory performance.
What storage options are available on this motherboard?
The motherboard offers two M.2 slots (both PCIe 5.0 x4 with Ryzen 9000/7000 Series or PCIe 4.0 x4 with Ryzen 8000 Series) and two SATA 6Gb/s ports, providing fast and flexible storage solutions for SSDs and HDDs.
