Product Information

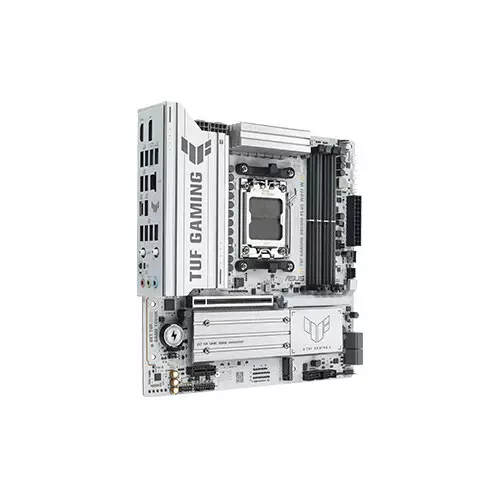

Asus TUF GAMING B850M-PLUS WIFI7 W AMD DDR5 AM5 micro-ATX Motherboard
Memory type - DDR5
Chipset - AMD B850 Chipset
Operating System - Windows 11
Form Factor - micro-ATX
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
AMD Socket AM5 for AMD Ryzen
9000 & 8000 & 7000 Series Desktop Processors
AMD B850 Chipset
Mainboard
256 Mb Flash ROM, UEFI AMI BIOS
Memory
4 x DIMM slots, max. 256GB, DDR5
Supports up to 8000+MT/s (OC) with
Ryzen 9000 & 8000 & 7000 Series
Processors, ECC and Non-ECC Un-buffered DIMM*
Dual-channel memory architecture
Supports AMD Extended Profiles for
Overclocking (EXPO)
ASUS Enhanced Memory Profile (AEMP)
Supported memory types, data rate (speed),
and the number of DRAM modules varies
depending on the CPU and memory
configuration, for more information
Please refer to the CPU/Memory Support list
under the Support tab of the product
Storage
AMD RAIDXpert2 Technology*
Ryzen 9000 Series Processors: RAID 0/1/5/10
Ryzen 8000 Series Processors: RAID 0/1
Ryzen 7000 Series Processors: RAID 0/1/10
Total supports 3 x M.2 slots and
4 x SATA 6Gb/s ports
AMD Ryzen 9000 & 7000
Series Desktop Processors
M.2_1 slot (Key M), type 2280
(supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type
2242/2260/2280 (supports PCIe 4.0 x4 mode)
AMD Ryzen 8000 Series Desktop Processors
M.2_1 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)
M.2_2 slot (Key M), type 2242/2260/2280
(supports PCIe 4.0 x4/x2 mode)
AMD B850 Chipset
M.2_3 slot (Key M), type 2280
(supports PCIe 4.0 x4 mode)
4 x SATA 6Gb/s ports
Graphics
1 x DisplayPort
1 x HDMI port
Graphics specifications may vary
between CPU types. Please refer to
AMD CPU specifications.
Supports max. 8K@30Hz as
specified in DisplayPort 1.4.
Supports 4K@60Hz as
specified in HDMI 2.1
Networking & Connectivity
1 x Realtek 2.5Gb Ethernet
TUF LANGuard
Wi-Fi 7 (MediaTek MT7925)
2x2 Wi-Fi 7 (802.11be)
Supports 2.4/5/6GHz frequency band
Supports Wi-Fi 7 160MHz bandwidth
Wi-Fi features may vary depending on
the operating system
For Windows 11, Wi-Fi 7 will require 24H2
or a later version for full functions,
Windows 11 21H2/22H2/23H2 only
support Wi-Fi 6E.
For Windows 10, please note that no
driver is available; please refer to
the Wi-Fi chipset vendor's website for details.
Wi-Fi 6GHz frequency band and
bandwidth regulations may vary between countries.
Bluetooth v5.4
The Bluetooth version may vary
Audio & Microphone
Realtek ALC1220P 7.1 Surround
Sound High Definition Audio CODEC
- Impedance sense for front and rear
headphone outputs
- Internal audio Amplifier to enhance
the highest quality sound for
headphones and speakers
- Supports: Jack-detection,
Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo
playback output and 113 dB SNR
recording input (Line-in)
- Supports up to 32-bit/192 kHz
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
- Unique de-pop circuit
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
Ports
AMD Ryzen 9000 & 7000 Series Desktop Processors
1 x PCIe 5.0 x16 slot (supports x16 mode)
AMD Ryzen 8000 Series Desktop Processors
1 x PCIe 4.0 x16 slot (supports x8/x4 mode)
AMD B850 Chipset
1 x PCIe 4.0 x1 slot
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
3 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
3 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 10Gbps connector
(supports USB Type-C )
1 x USB 5Gbps header supports
2 additional USB 5Gbps ports
2 x USB 2.0 headers support
3 additional USB 2.0 ports
Miscellaneous
3 x Addressable RGB Gen2 headers
1 x Chassis Intrusion header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x 10-1 pin Front Panel System header
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x HDMI port
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack button
1 x Clear CMOS button
Rear USB (Total 12 ports)
1 x USB 20Gbps port (1 x USB Type-C)
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 5Gbps ports (4 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
Front USB (Total 6 ports)
1 x USB 10Gbps connector
(supports USB Type-C)
1 x USB 5Gbps header supports
2 additional USB 5Gbps ports
2 x USB 2.0 headers support
3 additional USB 2.0 ports
USB Type-C power delivery
output: max. 5V/3A.
Software
Windows 11
ASUS Exclusive Software
Armoury Crate
- Aura Creator
- Aura Sync
- Fan Xpert 2+
ASUS AI Advisor
ASUS DriverHub
ASUS GlideX
TurboV Core
TUF GAMING CPU-Z
DTS Audio Processing
Adobe Creative Cloud (Free Trial)
Norton 360 for Gamers (60 Days Free Trial)
WinRAR (40 Days Free Trial)
UEFI BIOS
ASUS EZ DIY
- ASUS CrashFree BIOS 3
- ASUS EZ Flash 3
- ASUS UEFI BIOS EZ Mode
- ASUS MyHotkey
Special Features
ASUS TUF PROTECTION
- DIGI+ VRM (- Digital power design with DrMOS)
- ESD Guards
- TUF LANGuard
- Overvoltage protection
- SafeSlot
- Stainless-steel back I/O
ASUS Q-Design
- M.2 Q-Latch
- PCIe Slot Q-Release
- Q-Antenna
- Q-Dashboard
- Q-DIMM
- Q-LED (CPU [red], DRAM [yellow],
VGA [white], Boot Device [yellow green])
ASUS Thermal Solution
- M.2 heatsink
- VRM heatsink design
ASUS EZ DIY
- BIOS FlashBack™ button
- BIOS FlashBack™ LED
- ProCool
- Pre-mounted I/O shield
- SafeDIMM
Aura Sync
- Addressable RGB Gen2 headers
Others
Cables
2 x SATA 6Gb/s cables
Miscellaneous
1 x ASUS WiFi Q-Antenna
1 x TUF GAMING sticker
1 x M.2 rubber package
1 x Screw package for M.2 SSD
Documentation
1 x Quick start guide
Physical Specification
micro-ATX Form Factor
9.6 inch x 9.6 inch (24.4 cm x 24.4 cm)
Warranty Information
3 years
PRODUCT DESCRIPTION
Asus TUF GAMING B850M-PLUS WIFI7 W micro-ATX Motherboard in Bangladesh
ASUS TUF GAMING B850M-PLUS WIFI7 AMD DDR5 AM5 micro-ATX Motherboard is a powerful and future-ready platform designed for gamers, creators, and PC enthusiasts in Bangladesh who demand performance, durability, and cutting-edge connectivity. Built on the AMD B850 chipset and supporting AMD Ryzen 9000, 8000, and 7000 Series desktop processors via the AM5 socket, this motherboard is engineered to handle next-generation workloads with ease. It features four DDR5 DIMM slots supporting up to 256GB of memory with speeds reaching 8000+ MT/s (OC), along with EXPO and ASUS AEMP profiles for optimized memory performance and stability. For storage, the board offers impressive flexibility with three M.2 slots—including PCIe 5.0 x4 support for ultra-fast NVMe SSDs on Ryzen 9000 and 7000 series CPUs—and four SATA 6Gb/s ports, making it ideal for high-speed gaming libraries and professional data workloads.
Expansion is equally strong, with a PCIe 5.0 x16 slot (or PCIe 4.0, depending on CPU) reinforced by ASUS SafeSlot technology for heavy graphics cards. Connectivity is a major highlight, featuring next-generation Wi-Fi 7 (802.11be) with 2x2 support across 2.4GHz, 5GHz, and 6GHz bands, Bluetooth 5.4, and a Realtek 2.5Gb Ethernet port with TUF LANGuard for stable, low-latency networking. The rear I/O is packed with 12 USB ports, including a blazing-fast USB 20Gbps Type-C port, multiple USB 10Gbps and 5Gbps ports, HDMI 2.1, DisplayPort 1.4 supporting up to 8K output, and dedicated BIOS FlashBack and Clear CMOS buttons for easy maintenance. Audio is handled by the premium Realtek ALC1220P codec with 7.1 surround sound, high SNR output, audio shielding, and an integrated amplifier for immersive gaming and clear communication. ASUS TUF Protection ensures long-term reliability with military-grade components, robust VRM and M.2 heatsinks, DIGI+ VRM with DrMOS, ESD guards, and stainless-steel back I/O. Combined with user-friendly features like M.2 Q-Latch, PCIe Q-Release, Aura Sync RGB headers, and ASUS Armoury Crate software, the ASUS TUF GAMING B850M-PLUS WIFI7 motherboard delivers a balanced mix of performance, durability, and advanced features, making it an excellent choice for building a powerful AM5 system, available in Bangladesh at the best price from Tech Land BD.
Buy Asus TUF GAMING B850M-PLUS WIFI7 W micro-ATX Motherboard in Bangladesh from Tech Land BD:
Tech Land BD is one of the most trusted and reliable computer hardware retailers in Bangladesh, making it the best place to buy the ASUS TUF GAMING B850M-PLUS WIFI7 motherboard. Customers purchasing from Tech Land BD receive 100% genuine ASUS products, competitive pricing, and dependable after-sales support. Known for its strong reputation, knowledgeable staff, and customer-focused service, Tech Land BD ensures a smooth and confident buying experience. If you are looking for the best price in Bangladesh along with authenticity and peace of mind, Tech Land BD is the ideal destination for this advanced ASUS TUF GAMING motherboard.
Which AMD processors are supported by this motherboard?
It supports AMD Ryzen 9000, 8000, and 7000 Series desktop processors with the AM5 socket.
Does it support DDR5 memory only?
Yes, this motherboard is DDR5-only and supports up to 256GB DDR5 memory.
Is Wi-Fi 7 supported out of the box?
Yes, it comes with built-in Wi-Fi 7 and Bluetooth 5.4.
