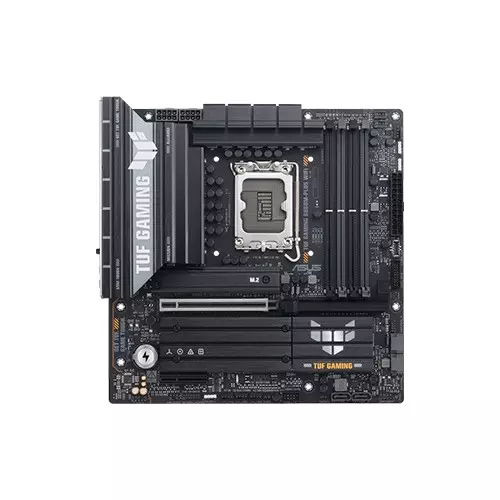

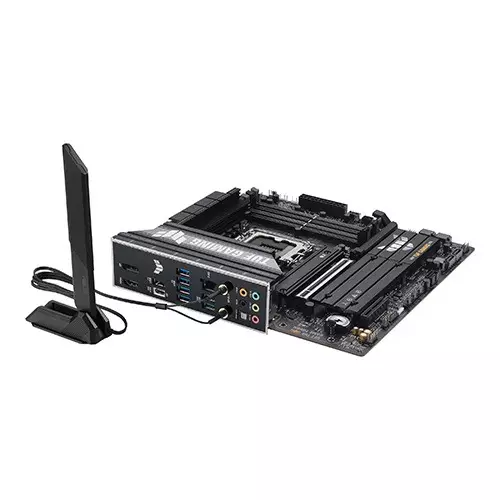

ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard
ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard - 1 ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard - 2 ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard - 3

ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard

0 Reviews
Stock : In Stock
PID : P0122506899
Brand : Asus
Model : TUF GAMING B860M-PLUS WIFI
Warranty : 3-Years
  • Chipset: Intel B860 Chipset for Core Ultra Processors (Series 2)
  • Socket: Intel Socket LGA1851
  • Memory: 4 x DIMM slots, max. 256GB, DDR5
  • Storage: Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

    • ⌨️ PC BUILD + FREE KL-139 KEYBOARD

    Product Pricing

    Discount Price

    ৳33,400 ৳35,400
    + Available Payment Method

    EMI Start From*

    ৳1,176

    PRODUCT SPECIFICATIONS

    Processor

    CPU Socket Support Intel Core Ultra Processors (Series 2), LGA1851

    Supports Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0

    Mainboard

    Chipset Intel B860 Chipset
    BIOS 2 x 128 Mb Flash ROM, UEFI AMI BIOS

    Memory

    Memory 4 x DIMM slots, max. 256GB, DDR5

    Support up to 8800+MT/s (OC), Non-ECC, Un-buffered, Clocked Unbuffered DIMM (CUDIMM)

    Dual Channel Memory Architecture

    DIMM Fit

    Supports Intel Extreme Memory Profile (XMP) memory module

    ASUS Enhanced Memory Profile III(AEMPIII)

    Storage

    Storage Supports 3 x M.2 slots and 4 x SATA 6Gb/s ports

    Intel Core Ultra Processors(Series 2)

    M.2_1 slot (Key M), type 2280 (supports PCIe 5.0 x4 mode)



    Intel B860 Chipset

    M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)

    M.2_3 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)

    4 x SATA 6Gb/s ports

    Intel Rapid Storage Technology supports SATA RAID 0/1/5/10.

    Graphics

    Graphics 1 x DisplayPort

    1 x HDMI port

    1 x USB 20Gbps port (USB Type-C) supports DisplayPort video output


    Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.

    Supports max. 4K@60Hz as specified in DisplayPort 1.4.

    Supports 4K@60Hz as specified in HDMI 2.1.

    VGA resolution support depends on the processors' or graphic cards' resolution.

    While installing the operating system, please ensure that your monitor is connected to

    the HDMI port on the back I/O panel or to a discrete graphics card.

    Networking & Connectivity

    Wi-Fi Wi-Fi 7

    2x2 Wi-Fi 7 (802.11be)

    Supports 2.4/5/6GHz frequency band

    Supports Wi-Fi 7 160MHz bandwidth, up to 2.9Gbps transfer rate.
    Bluetooth Bluetooth v5.4
    Ethernet 1 x Realtek 2.5Gb Ethernet

    TUF LANGuard

    Audio & Microphone

    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC:

    - Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

    - Supports up to 24-bit/192 kHz playback


    Audio Features:

    - Audio Shielding

    - Rear optical S/PDIF outport

    - Premium audio capacitors

    - Dedicated audio PCB layers

    Ports

    I/O Port Back Panel I/O Ports:

    1 x USB 20Gbps port (1 x USB Type-C with DP Alt mode)

    2 x USB 10Gbps port (2 x Type-A)

    4 x USB 5Gbps ports (4 x Type-A)

    1 x USB 2.0 port (1 x Type-A)

    1 x DisplayPort

    1 x HDMI port

    1 x Wi-Fi Module

    1 x Realtek 2.5Gb Ethernet port

    5 x Audio jacks

    1 x Optical S/PDIF out port



    Internal I/O Connectors:

    I/O Connectors Fan and Cooling-related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    1 x 4-pin AIO Pump header

    3 x 4-pin Chassis Fan headers



    Power related

    1 x 24-pin Main Power connector

    2 x 8-pin +12V Power connectors



    Storage related

    3 x M.2 slots (Key M)

    4 x SATA 6Gb/s ports



    USB

    1 x USB 10Gbps connector (supports USB Type-C)

    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    1 x USB 2.0 header supports 2 additional USB 2.0 ports



    Miscellaneous

    3 x Addressable Gen 2 headers

    1 x Clear CMOS header

    1 x Chassis Intrusion header

    1 x Front panel audio header (F_AUDIO)

    1 x 10-1 pin Front System Panel header

    1 x Thunderbolt (USB4) header
    USB Rear USB (Total 8 ports):

    1 x USB 20Gbps port (1 x USB Type-C)

    2 x USB 10Gbps port (2 x Type-A)

    4 x USB 5Gbps ports (4 x Type-A)

    1 x USB 2.0 ports (1x Type-A)


    Front USB (Total 5 ports)

    1 x USB 10Gbps connector (supports USB Type-C)

    1 x USB 5Gbps header supports 2 additional USB 5Gbps ports

    1 x USB 2.0 headers support 2 additional USB 2.0 ports

    USB Type-C power delivery output: max. 5V/3A

    Software

    Software Features ASUS Exclusive Software

    Armoury Crate

    - AURA Creator


    - AURA Sync

    - Fan Xpert 2+

    - Power Saving

    ASUS DriverHub

    ASUS GlideX

    TurboV Core

    TUF GAMING CPU-Z

    DTS Audio Processing

    Norton 360 for Gamers (60 Days Free Trial)

    WinRAR (40 Days Free Trial)



    UEFI BIOS

    ASUS EZ DIY

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash

    - ASUS UEFI BIOS EZ Mode

    - ASUS MyHotkey

    NPU Boost

    Special Features

    Special Features ASUS TUF PROTECTION

    - DIGI+ VRM (- Digital power design with DrMOS)

    - ESD Guards

    - TUF LANGuard

    - Overvoltage Protection

    - SafeSlot

    - Stainless-Steel Back I/O



    ASUS Q-Design

    - M.2 Q-Latch

    - PCIe Slot Q-Release

    - Q-Antenna

    - Q-Dashboard

    - Q-DIMM

    - Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])



    ASUS Thermal Solution

    - M.2 heatsinks

    - VRM heatsink design



    ASUS EZ DIY

    - CPU Socket lever protector

    - ProCool

    - Pre-mounted I/O shield

    - SafeDIMM



    AURA Sync

    - Addressable Gen 2 headers

    Others

    Accessories Cables

    2 x SATA 6Gb/s cables



    Miscellaneous

    1 x ASUS WiFi Q-Antenna

    2 x M.2 Rubber Packages

    1 x TUF Gaming sticker

    1 x Screw package for M.2 SSD



    Documentation

    1 x Quick Start guide
    Other Features Manageability: WOL by PME, PXE

    Physical Specification

    Color White
    Expansion Slots Intel CoreTM Ultra Processors(Series 2)

    1 x PCIe 5.0 x16 slot



    Intel B860 Chipset

    1 x PCIe 4.0 x4 slot
    Form Factor mATX Form Factor

    9.6inch x 9.6 inch ( 24.4 cm x 24.4 cm )

    Technical Info

    Brand ASUS
    Model TUF GAMING B860M-PLUS WIFI
    Operating System Support Windows 11 (22H2 & later)

    Warranty Information

    Warranty 3 Years Replacement Warranty

    *(Terms and Conditions Applied)

    PRODUCT DESCRIPTION

    ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard in Bangladesh

    ASUS TUF GAMING B860M-PLUS WIFI Intel LGA1851 mATX Gaming Motherboard is a robust and reliable choice for gamers and PC builders in Bangladesh, offering a perfect blend of durability, performance, and advanced features. Available at Tech Land BD, this motherboard supports Intel Core Ultra Processors (Series 2) with Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0, ensuring powerful performance for gaming, multitasking, and productivity. With four DIMM slots supporting up to 256GB of DDR5 memory and speeds of up to 8800+ MT/s (OC), the TUF GAMING B860M-PLUS delivers exceptional memory performance for demanding applications. The motherboard features three M.2 slots and four SATA 6Gb/s ports, providing flexible storage options with support for PCIe 5.0 and 4.0 SSDs, making it ideal for high-speed data transfer and large storage needs.

    Graphics capabilities are enhanced with one DisplayPort, one HDMI port, and one USB 20Gbps port (USB Type-C) supporting DisplayPort video output, enabling up to 4K@60Hz resolution for stunning visuals. Networking is seamless with Wi-Fi 7 and a Realtek 2.5Gb Ethernet port, offering ultra-fast connectivity for online gaming and streaming.

    The motherboard also includes eight rear USB ports, including USB 20Gbps, USB 10Gbps, and USB 5Gbps ports, along with front-panel USB 10Gbps and 5Gbps headers for expanded connectivity. Audio enthusiasts will appreciate the Realtek 7.1 Surround Sound High Definition Audio CODEC, delivering high-quality audio with support for up to 24-bit/192 kHz playback. The ASUS TUF GAMING B860M-PLUS also features advanced cooling solutions, including M.2 heatsinks and VRM heatsinks, ensuring optimal thermal performance during intense gaming sessions. With its mATX form factor, military-grade durability, and RGB lighting customization via Aura Sync, this motherboard is a perfect choice for compact, high-performance gaming builds. Elevate your gaming and productivity with the ASUS TUF GAMING B860M-PLUS WIFI, available now at Tech Land BD.




    What processors are compatible with the ASUS TUF GAMING B860M-PLUS WIFI motherboard?

    The motherboard supports Intel Core Ultra Processors (Series 2) with Intel Turbo Boost Technology 2.0 and Intel Turbo Boost Max Technology 3.0.

    Does the ASUS TUF GAMING B860M-PLUS support DDR5 memory?

    Yes, it supports DDR5 memory with four DIMM slots, accommodating up to 256GB and speeds of up to 8800+ MT/s (OC).

    What connectivity options does the ASUS TUF GAMING B860M-PLUS offer?

    It features Wi-Fi 7, a Realtek 2.5Gb Ethernet port, USB 20Gbps, USB 10Gbps ports, and multiple M.2 slots for high-speed storage and connectivity.
