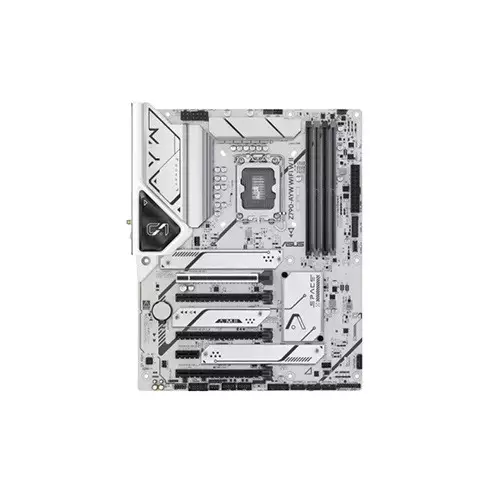

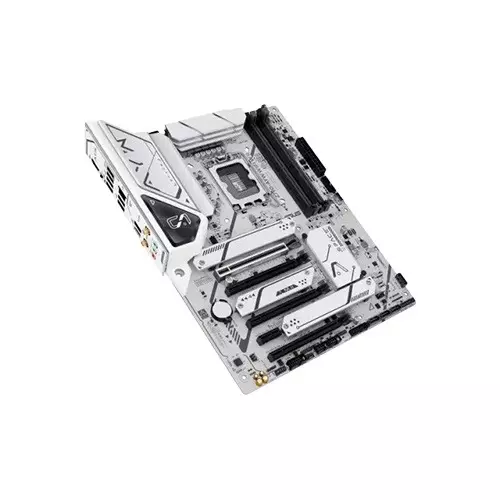

ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard
ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard - 1 ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard - 2 ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard - 3

ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0122506965
Brand : Asus
Model : Z790-AYW WIFI W II LGA1700
Warranty : 3 years
  • Supported CPU - 14th, 13th & 12th Gen
  • Supported RAM - 4 x DIMM,
  • Graphics Output - 1 x HDMI
  • Features - Realtek 2.5Gb

    • ⌨️ PC BUILD + FREE KL-139 KEYBOARD

    Product Pricing

    Night Offer Price 00:00:00

    ৳39,000 ৳40,500
    + Available Payment Method

    EMI Start From*

    ৳1,373

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU Intel Socket LGA1700 for Intel Core 14th & 13th

    Gen Processors, Intel Core 12th Gen, Pentium

    Gold and Celeron Processors

    Supports Intel Turbo Boost Technology

    2.0 and Intel Turbo Boost Max Technology 3.0

    Mainboard

    Chipset Intel Z790 Chipset
    BIOS 192 (128+64) Mb Flash ROM, UEFI AMI BIOS

    Memory

    Memory Type DDR5
    Memory 4 x DIMM slots, Max. 192GB, DDR5 8000+(OC)/

    7800(OC)/7600(OC)/7400(OC)/7200(OC)/

    7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/

    6000(OC)/5800(OC)/5600/5400/5200/5000/

    4800 Non-ECC, Unbuffered Memory

    Dual-channel memory architecture

    Supports Intel Extreme Memory Profile

    (XMP) memory module

    OptiMem II

    Supported memory types, data rate

    (speed), and number of DRAM modules varies

    Depending on the CPU and memory configuration.

    For more information, please refer to the

    CPU/Memory Support list under the

    Support tab of the product information site, or visit

    Storage

    Storage USB (s)

    Rear USB (Total 8 ports)

    2 x USB 10Gbps ports (1 x Type-A+1 x Type-C)

    2 x USB 5Gbps ports (2 x Type-A)

    4 x USB 2.0 ports (4 x Type-A)

    Front USB (Total 9 ports)

    1 x USB 10 Gbps connector

    (supports USB Type-C)

    2 x USB 5Gbps headers support 4

    additional USB 5 Gbps ports

    2 x USB 2.0 headers support 4

    additional USB 2.0 ports

    USB_E1 port, USB_E2 port, and

    USB_E6 port shares the bandwidth.

    USB_E3 port, USB_E4 port, USB_E7

    port and the USB_E8 port share the bandwidth

    LAN Port (s)

    1 x Realtek 2.5Gb Ethernet

    ASUS LANGuard

    Wireless Communication module

    Wi-Fi 6 (802.11 ax)

    Supports 2.4/5GHz frequency band

    Bluetooth v5.3

    Graphics

    Graphics Supports 4K@60Hz as specified in HDMI 2.1.

    Audio & Microphone

    Audio Realtek 7.1 Surround Sound High Definition Audio CODEC

    - Supports: Jack-detection, Multi-streaming,

    Front Panel Jack Retasking

    - Supports up to 24-bit/192 kHz playback

    Audio Features

    - Audio Shielding

    - Premium audio capacitors

    - Dedicated audio PCB layers

    A chassis with an HD audio module

    The front panel is required to support

    7.1 Surround Sound audio output.

    Ports

    I/O Port Back Panel I/O Ports

    2 x USB 10Gbps ports (1 x Type-A+1 x Type-C)

    2 x USB 5Gbps ports (2 x Type-A)

    4 x USB 2.0 ports (4 x Type-A)

    1 x HDMITM port

    1 x Wi-Fi Module

    1 x Realtek 2.5Gb Ethernet port

    3 x Audio jacks

    1 x BIOS FlashBack button

    Internal I/O Connectors

    Fan and Cooling Related

    1 x 4-pin CPU Fan header

    1 x 4-pin CPU OPT Fan header

    1 x 4-pin AIO Pump header

    3 x 4-pin Chassis Fan headers

    Power Related

    1 x 24-pin Main Power connector

    1 x 8-pin +12V Power connector

    1 x 4-pin +12V Power connector

    Storage Related

    3 x M.2 slots (Key M)

    4 x SATA 6Gb/s ports

    USB

    1 x USB 10 Gbps connector (supports USB Type-C)

    2 x USB 5Gbps headers support 4

    additional USB 5 Gbps ports

    2 x USB 2.0 headers support 4

    additional USB 2.0 ports

    Miscellaneous

    3 x Addressable RGB Gen 2 headers

    1 x Clear CMOS header

    1 x COM Port header

    1 x Front Panel Audio header (F_AUDIO)

    1 x S/PDIF Out header

    1 x SPI TPM header (14-1pin)

    1 x 20-5 pin Front Panel System header

    1 x Thunderbolt (USB4) Header

    TPM (Trusted Platform Module )

    1 x SPI TPM header (14-1pin)
    Connector USB (s)

    Rear USB (Total 8 ports)

    2 x USB 10Gbps ports (1 x Type-A+1 x Type-C)

    2 x USB 5Gbps ports (2 x Type-A)

    4 x USB 2.0 ports (4 x Type-A)

    Front USB (Total 9 ports)

    1 x USB 10 Gbps connector (supports USB Type-C)

    2 x USB 5Gbps headers

    Support 4 additional USB 5 Gbps ports

    2 x USB 2.0 headers support 4

    additional USB 2.0 ports

    USB_E1 port, USB_E2 port,t and USB_E6

    Port shares the bandwidth.

    USB_E3 port, USB_E4 port, USB_E7

    port and the USB_E8 port share the bandwidth

    LAN Port (s)

    1 x Realtek 2.5Gb Ethernet

    ASUS LANGuard

    Wireless Communication module

    Wi-Fi 6 (802.11 ax)

    Supports 2.4/5GHz frequency band

    Bluetooth v5.3

    Special Features

    Speacial Features ASUS 5X PROTECTION III

    - DIGI+ VRM (- Digital power

    design with DrMOS)

    - LANGuard

    - Overvoltage Protection

    - SafeSlot

    - Stainless-Steel Back I/O

    ASUS Q-Design

    - M.2 Q-Latch

    - Q-DIMM

    - Q-Slot

    - Q-LED Core

    ASUS Thermal Solution

    - M.2 heatsinks

    - VRM heatsink design

    ASUS EZ DIY

    - BIOS FlashBack button

    - ProCool

    - Pre-mounted I/O shield

    Aura Sync

    - Addressable RGB Gen 2 headers

    Bundled Software

    ASUS Exclusive Software

    Armoury Crate

    - Aura Sync

    - Fan Xpert 4 (with AI Cooling II)

    - Power Saving

    - Two-Way AI Noise Cancelation

    ASUS DriverHub

    AI Suite 3

    -TurboV EVO

    -PC Cleaner

    -DIGI+ VRM

    ASUS CPU-Z

    Norton 360 Deluxe (60 Days Free Trial)

    WinRAR (40 Days Free Trial)

    UEFI BIOS

    ASUS EZ DIY

    - ASUS CrashFree BIOS 3

    - ASUS EZ Flash 3

    - ASUS UEFI BIOS EZ Mode

    Physical Specification

    Color White
    Expansion Slots Intel Core Processors (14th & 13th & 12th Gen)

    1 x PCIe 5.0 x16 slot

    Intel Z790 Chipset

    3 x PCIe 4.0 x16 slots (support x4 mode)

    1 x PCIe 3.0 x1 slot
    Form Factor ATX

    Technical Info

    Model Z790-AYW WIFI W II

    Warranty Information

    Warranty 3 years

    PRODUCT DESCRIPTION

    ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard in Bangladesh

    ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard is a premium choice for PC enthusiasts and gamers in Bangladesh, available exclusively at Tech Land BD. Built to support the latest Intel 14th-, 13th-, and 12th-Gen processors (LGA1700 socket), this motherboard delivers exceptional performance with Intel Turbo Boost Technology 2.0 & 3.0 for enhanced speed. Equipped with the Intel Z790 chipset, it ensures superior power delivery and stability, making it ideal for high-end gaming and multitasking. The motherboard supports DDR5 RAM (up to 192GB, 8000+ MHz OC) with OptiMem II technology, reducing interference for smoother performance. Storage options include three PCIe 4.0 M.2 slots for ultra-fast NVMe SSDs and four SATA 6Gb/s ports for additional drives. For graphics, it features a PCIe 5.0 x16 slot and multiple PCIe 4.0 slots, ensuring future-proof expandability.
    Connectivity is top-notch with Wi-Fi 6 (802.11ax), Bluetooth 5.3, and 2.5 Gb Ethernet for lag-free online gaming and streaming. Audio quality is superb, thanks to Realtek 7.1 Surround Sound HD Audio with premium capacitors and noise shielding. The board also includes USB 10 Gbps ports (Type-A & Type-C), a Thunderbolt header, and multiple RGB headers for customisation. Advanced cooling is ensured via VRM heatsinks, M.2 heatsinks, and numerous fan headers. With ASUS-exclusive features like BIOS FlashBack, Q-Latch, and Aura Sync RGB lighting, this motherboard combines performance, durability, and style. Backed by a 3-year warranty, it’s a reliable choice for high-performance builds. Get yours today at Tech Land BD and elevate your PC experience!

    Buy the best ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard from Techland BD.


    ASUS Z790-AYW WIFI W II LGA1700 ATX Motherboard is a powerhouse for high-performance PCs, available at Tech Land BD, the best shop for premium components in Bangladesh. Designed for Intel 14th/13th/12th Gen processors, it features DDR5 support (up to 8000+ MHz OC), PCIe 5.0 x16, triple M.2 slots, and Wi-Fi 6 for blazing-fast connectivity. It ensures smooth gaming and multitasking with 2.5 Gb Ethernet, USB 10 Gbps ports, and Realtek 7.1 HD Audio. Tech Land BD offers genuine products with reliable warranty support, making it the ideal destination for building a top-tier gaming or workstation PC. Upgrade your rig with confidence—visit Tech Land BD today!

    Which processors are compatible?

    Supports Intel 14th, 13th, and 12th Gen CPUs (LGA1700 socket), including Core i9/i7/i5, Pentium Gold, and Celeron.

    Does it support DDR5 RAM?

    Yes, it has 4 DDR5 DIMM slots supporting up to 192GB (8000+ MHz OC) with XMP profiles.

    What are the connectivity options?

    Includes Wi-Fi 6, Bluetooth 5.3, 2.5Gb Ethernet, USB 10 Gbps (Type-C & Type-A), and HDMI 2.1.
