Product Information

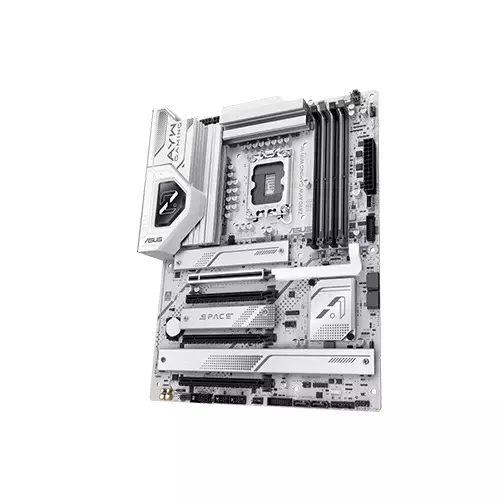

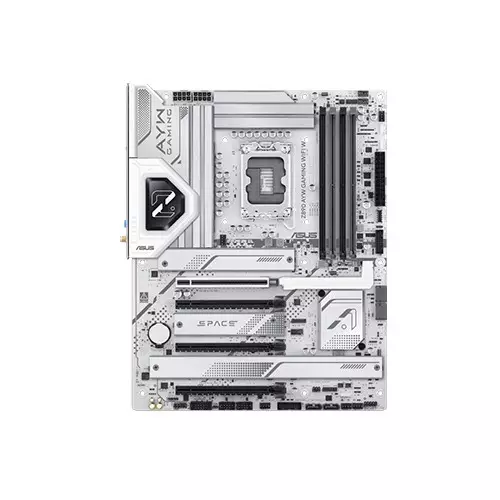

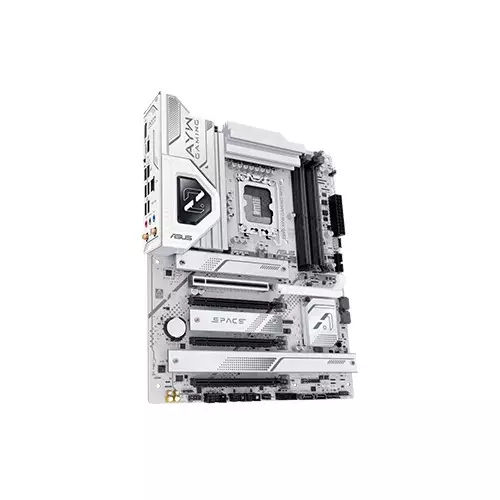

Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard
- Intel Z890 Chipset
- 4 x DIMM slots, max. 192GB, DDR5
- 1 x Realtek 2.5Gb Ethernet
- Wi-Fi 6 (802.11 a/b/g/n/ac/ax)
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
LGA1851*
Supports Intel® Turbo Boost Technology 2.0 and
Intel® Turbo Boost Max Technology 3.0
Mainboard
Memory
Supports up to 9066+MT/s (OC), Non-ECC, Un-
buffered ,Clocked Unbuffered DIMM (CUDIMM)*
Dual channel memory architecture
DIMM Fit
Supports Intel® Extreme Memory Profile (XMP) memory module
ASUS Enhanced Memory Profile III(AEMPIII)
* Adjustments will be made based on the
specifications of mass-produced memory products available on the market.
* Supported memory types, data rate (speed), and
number of DRAM modules vary depending on the CPU and memory configuration,
for more information please refer to
CPU/Memory Support list under the Support tab of product information site or visit
https://www.asus.com/support/download-center/.
* Non-ECC, un-buffered DDR5 memory supports
On-Die ECC function.
Storage
Intel® Core™ Ultra Processors(Series 2) *
M.2_1 slot (Key M), type 2280/22110 (supports PCIe 5.0 x4 mode)
M.2_2 slot (Key M), type 2280 (supports PCIe 4.0 x4 mode)
Intel® Z890 Chipset
M.2_3 slot (Key M), type 2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2280 (supports PCIe 4.0 x4 & SATA modes)
4 x SATA 6Gb/s ports
* Intel® Rapid Storage Technology supports PCIe
RAID 0/1/5/10, SATA RAID 0/1/5/10, M.2 slot
from CPU only supports RAID 0/1/5.
Graphics
1 x USB 20Gbps port (USB Type-C®) supports DisplayPort video output***
* Graphics specifications may vary between CPU types. Please refer to www.intel.com for any updates.
** Supports max. 4K@60Hz as specified in DisplayPort 1.4.
***Supports max. 4K@120Hz as specified in DisplayPort 1.4.
****VGA resolution support depends on processors' or graphic cards' resolution.
*****While installing the operating system, please ensure that your monitor is connected to the
DisplayPort on the back I/O panel or to a discrete graphics card.
Networking & Connectivity
Supports 2.4/5GHz frequency band
Bluetooth® v5.3*
* The Bluetooth® version may vary, please refer to
the Wi-Fi module
ASUS LANGuard
Audio & Microphone
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- Supports up to 24-Bit/192 kHz playback
Audio Features
- Audio Shielding
- Premium audio capacitors
- Dedicated audio PCB layers
* A chassis with an HD audio module in the front
panel is required to support 7.1 Surround Sound audio output.
Ports
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)
1 x DisplayPort
1 x Wi-Fi module
1 x Realtek 2.5Gb Ethernet port
3 x Audio jacks
1 x BIOS FlashBack™ button
Fan and Cooling Related
1 x 4-pin CPU Fan header
1 x 4-pin CPU OPT Fan header
1 x 4-pin AIO Pump header
4 x 4-pin Chassis Fan headers
Power Related
1 x 24-pin Main Power connector
2 x 8-pin +12V CPU Power connectors
Storage Related
4 x M.2 slots (Key M)
4 x SATA 6Gb/s ports
USB
1 x USB 20Gbps connector (supports USB Type-C®
with up to 30W PD/PPS Fast-charge )
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports
Miscellaneous
3 x Addressable Gen2 headers
1 x Clear CMOS header
1 x COM Port header
1 x Front Panel Audio header (F_AUDIO)
1 x S/PDIF Out header
1 x SPI TPM header (14-1 pin)
1 x 10-1 pin Front System Panel header
1 x Thunderbolt™ (USB4®) Header
1 x USB 20Gbps port (1 x USB Type-C® with DP Alt mode)*
3 x USB 10Gbps ports (3 x Type-A)
4 x USB 2.0 ports (4 x Type-A)***
Front USB (Total 9 ports)
1 x USB 20Gbps connector (supports USB Type-C® with up to 30W PD/PPS Fast-charge )**
2 x USB 5Gbps headers support 4 additional USB 5Gbps ports
2 x USB 2.0 headers support 4 additional USB 2.0 ports***
* USB Type-C® power delivery output: max. 5V/3A
** USB Type-C® power delivery output: 5V/9V
max. 3A, 12V max 2.5A, 15V max. 2.0A
*** USB_E1 port, USB_E2 port, USB_E3 port and
USB_E4 port share the bandwidth.
USB_E5 port, USB_E6 port and USB_E7 port share the bandwidth.
Software
Special Features
DIGI+ VRM (- Digital power design with DrMOS)
LANGuard
Overvoltage protection
SafeSlot
Stainless-steel back I/O
ASUS Q-Design:
M.2 Q-Latch
PCIe Slot Q-Release
Q-Dashboard
Q-DIMM
Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])
Q-Slot
ASUS Thermal Solution:
M.2 heatsinks
VRM heatsinks design
ASUS EZ DIY:
BIOS FlashBack™ button
BIOS FlashBack™ LED
ProCool
Pre-mounted I/O shield
Aura Sync:
Addressable Gen2 headers
Front Panel USB 20Gbps with PD Fast Charge Support:
Support: up to 30W fast charging and USB Wattage Watcher
Output: 5V/9V max. 3A, 12V max 2.5A, 15V max. 2.0A
Compatible with PD3.0 and PPS
Physical Specification
1 x PCIe 5.0 x16 slot
Intel® Z890 Chipset
2 x PCIe 4.0 x16 slots (supports x4 mode)
1 x PCIe 4.0 x16 slot (supports x1 mode)
12 inch x 9.6 inch ( 30.5 cm x 24.4 cm )
Technical Info
Warranty Information
PRODUCT DESCRIPTION
Asus Z890 AYW GAMING WIFI W Motherboard in Bangladesh
Asus Z890 AYW GAMING WIFI W is one of the latest high-performance gaming motherboards available in Bangladesh, designed for Intel Core Ultra Series processors. This advanced motherboard offers support for the LGA1851 socket, making it a top choice for gamers and performance enthusiasts seeking the ultimate experience. Its cutting-edge features, superior connectivity, and innovative cooling solutions make it an ideal option for building powerful gaming and productivity systems.
Technical Details
The Asus Z890 AYW GAMING WIFI W motherboard is engineered with the Intel Z890 chipset, compatible with Intel Core Ultra Series 2 processors, and the LGA1851 socket. It comes with four DDR5 DIMM slots supporting up to 192GB of RAM at speeds of up to 9066+ MT/s. This motherboard features PCIe 5.0 x16 slots for faster data transfers and supports M.2 NVMe SSDs with PCIe 5.0 and 4.0 interfaces, ensuring high-speed storage performance. Its built-in Realtek 2.5Gb Ethernet ensures lightning-fast connectivity, while Wi-Fi 6 and Bluetooth 5.3 deliver wireless convenience. Multiple USB ports, including USB 20Gbps and Type-C, provide excellent expandability and fast charging capabilities. Additionally, the motherboard features comprehensive cooling solutions, such as M.2 heatsinks and VRM heatsinks, designed to keep your system running smoothly even under heavy loads.
Availability and Usability
The Asus Z890 AYW GAMING WIFI W motherboard is available at Tech Land BD, a trusted destination for tech enthusiasts and gamers. Whether you're a hardcore gamer or a professional requiring a high-performance rig, this motherboard offers unparalleled versatility and usability. Its advanced features, such as PCIe 5.0, multiple M.2 slots, and DDR5 memory support, ensure that it is future-proof and ready to handle the most demanding applications. When considering the Asus Z890 AYW GAMING WIFI W Price in BD, its high-end specs make it a valuable investment for those seeking performance, reliability, and superior functionality.
Highlights
- Supports Intel Core Ultra Series processors and LGA1851 sockets.
- Four DDR5 DIMM slots with up to 192GB of RAM support.
- PCIe 5.0 x16 slots for ultra-fast data transfer and future compatibility.
- Wi-Fi 6, Bluetooth 5.3, and Realtek 2.5Gb Ethernet for seamless connectivity.
- Comprehensive cooling solutions with heatsinks for maximum system stability.
Get the Best Deal on the Asus Z890 AYW GAMING WIFI W from Tech Land BD
Now is the perfect time to purchase the Asus Z890 AYW GAMING WIFI W from Tech Land BD. With its top-tier performance, robust build, and advanced features, this motherboard is a must-have for gamers and professionals looking to build a future-proof PC. Take advantage of Tech Land BD's competitive pricing and availability before stock runs out. The Asus Z890 AYW GAMING WIFI W Price in Bangladesh offers excellent value for its feature set, ensuring you get the most performance out of your system for years to come. Don’t miss out—buy now and elevate your computing experience!
CUSTOMER REVIEWS
Overall Rating
Login to write a review.
Very Nice, with M.2 Heat sink also
14 December, 2024
What is the Asus Z890 AYW GAMING WIFI W LGA1851 DDR5 Motherboard Price in Bangladesh 2026 ?
