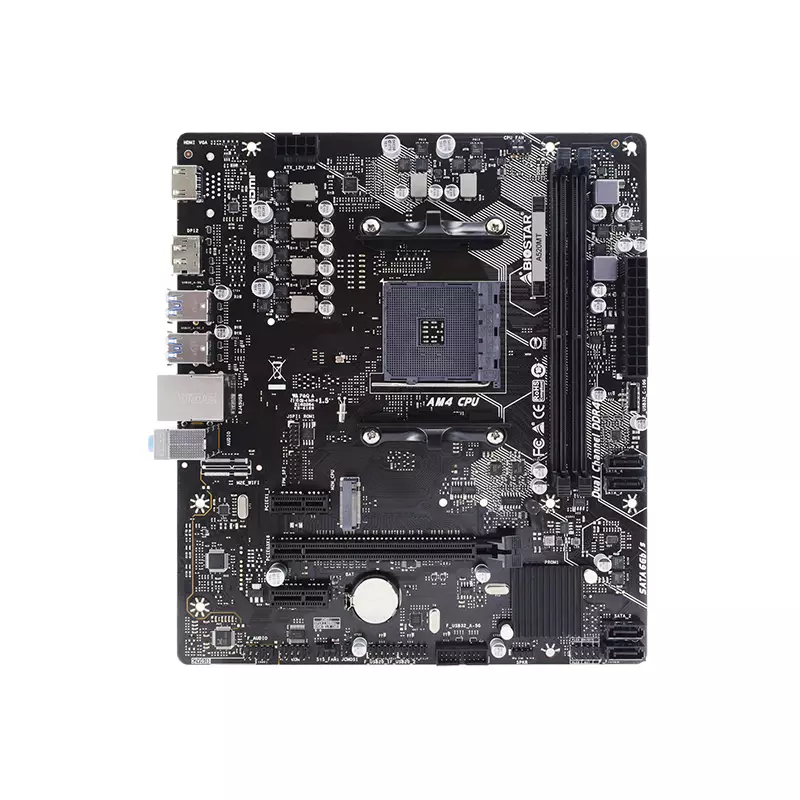

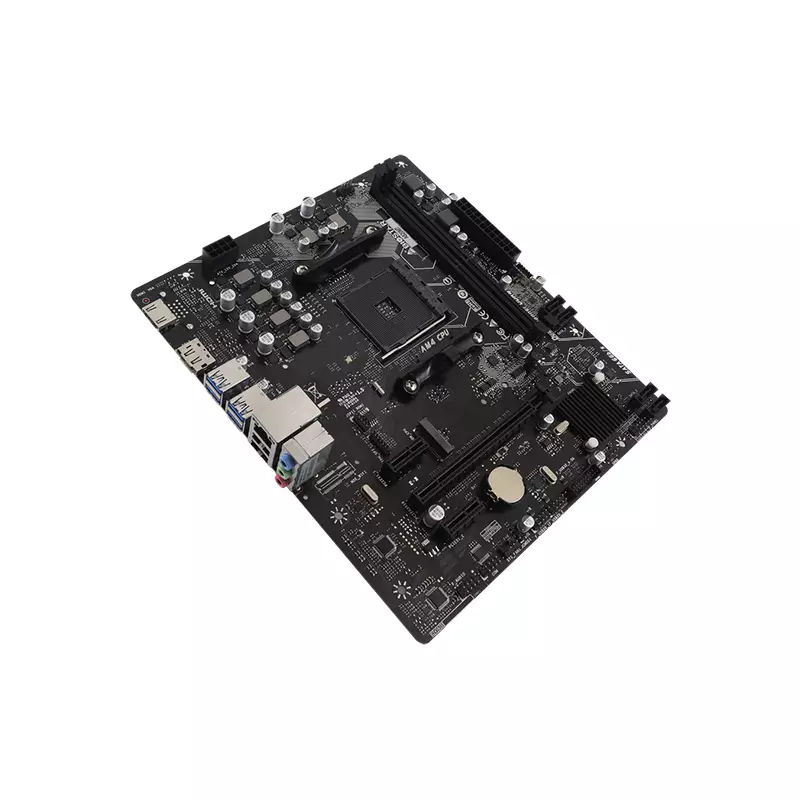

BIOSTAR A520MT 3RD AND 4TH GEN MICRO ATX AMD RYZEN MOTHERBOARD
BIOSTAR A520MT 3RD AND 4TH GEN MICRO ATX AMD RYZEN MOTHERBOARD BIOSTAR A520MT 3RD AND 4TH GEN MICRO ATX AMD RYZEN MOTHERBOARD - 1 BIOSTAR A520MT 3RD AND 4TH GEN MICRO ATX AMD RYZEN MOTHERBOARD - 2 BIOSTAR A520MT 3RD AND 4TH GEN MICRO ATX AMD RYZEN MOTHERBOARD - 3
Discount Tag

BIOSTAR A520MT 3RD AND 4TH GEN MICRO ATX AMD RYZEN MOTHERBOARD

0 Reviews
Stock : In Stock
PID : P2482506035
Brand : Biostar
Model : A520MT
Warranty : 3 Years
  • Chipset: AMD A520
  • MEMORY: 2x DDR4 DIMM
  • STORAGE: 4 x SATA III
  • AUDIO CODEC: ALC897
  • Product Pricing

    Discount Price

    ৳6,700 ৳8,500
    + Available Payment Method

    EMI Start From*

    ৳236

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU Socket AM4 support AMD Ryzen™ 3rd Gen (Matisse/ Renoir) and Ryzen™ 4th Gen (Vermeer/ Cezanne) processors

    Support for future AMD Ryzen processors with BIOS update

    Mainboard

    Chipset AMD A520

    Memory

    Memory 4th Gen AMD Ryzen Processors (Vermeer CPUs):

    Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133

    4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs):

    Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/
    2933/ 2667/ 2400/ 2133

    3rd Gen AMD Ryzen Processors (Matisse CPUs):

    Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133

    3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):

    Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/
    2933/ 2667/ 2400/ 2133

    2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory

    Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module

    Storage

    Supported Storage Total supports 1x M.2 socket and 4 x SATA III (6Gb/s) ports

    AMD Ryzen 5000/5000 G/4000 G/3000 Processors

    1 x M.2 (M Key) Socket (M2M_CPU):

    Supports M.2 Type 2242/ 2260/ 2280 SSD module

    Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD

    AMD A520 Chipset

    4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10

    Graphics

    Multi-GPU Yes
    Graphics By CPU model

    Supports DX12

    Supports HDCP

    Networking & Connectivity

    LAN Realtek RTL8111H

    10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

    Audio & Microphone

    Audio ALC897

    7.1 Channels, High Definition Audio, Hi-Fi (Front)

    Ports

    Slots AMD Ryzen 5000/5000 G/4000 G/3000 Processors

    1 x PCIe 3.0 x16 Slot(x16 or x4/x4/x4/x4 mode)

    AMD A520 Chipset

    2 x PCIe 3.0 x1 Slot
    Internal I/O Ports 4 x SATA III (6.0Gb/s) Connectors

    2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

    1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

    1 x USB 3.2 (Gen2) Type-C Header

    1 x 8-Pin Power Connector

    1 x 24-Pin Power Connector

    1 x CPU Fan Connector

    1 x System Fan Connector

    1 x Front Panel Header

    1 x Front Audio Header

    1 x Internal Stereo Speaker Header

    1 x Clear CMOS Header

    1 x COM Port Header

    1 x TPM Header
    External I/O Ports 1 x DP Port

    1 x HDMI Port

    1 x LAN port

    4 x USB 3.2 (Gen1) Ports

    2 x USB 2.0 Ports

    3 x Audio Jack
    USB 1 x USB 3.2 (Gen2) Type-C port (1 via internal headers)

    6 x USB 3.2 (Gen1) port (4 on rear I/Os and 2 via internal headers)

    6 x USB 2.0 port (2 on rear I/Os and 4 via internal headers)
    HDMI 1 x HDMI Port

    Software

    Software Features Supports Windows 10(64bit)/ 11(64bit)

    BullGuard

    Others

    Other Features H/W MONITORING:

    CPU / System Temperature Monitoring

    CPU / System Fan Monitoring

    Smart / Manual CPU Fan Control

    CPU/DDR Voltage Monitoring

    Physical Specification

    Form Factor Micro ATX
    Dimension 23.5cm x 20.8cm ( W x L )

    Warranty Information

    Warranty 03 Years Warranty

    PRODUCT DESCRIPTION

    BIOSTAR A520MT 3RD AND 4TH GEN MICRO ATX AMD RYZEN MOTHERBOARD

    The BIOSTAR A520MT is a micro ATX AMD Ryzen motherboard that supports both 3rd and 4th generation AMD Ryzen processors. It features an AMD A520 chipset and a micro ATX form factor with dimensions of 23.5cm x 20.8cm. The motherboard supports DDR4 memory with four slots, allowing for a maximum of 64 GB of memory. It also supports various storage options, including one M.2 socket and four SATA III ports. In terms of connectivity, it offers audio support with ALC897 for 7.1 channel high-definition audio, HDMI port, LAN port, and multiple USB ports, including USB 3.2 (Gen2) Type-C. The motherboard includes expansion slots such as one PCIe 3.0 x16 slot and two PCIe 3.0 x1 slots. It comes with various I/O ports, headers, and connectors for easy connectivity. The motherboard is bundled with software, has a three-year warranty, and includes accessories like SATA cables, an I/O shield, a DVD driver, and a quick guide. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of Motherboard available at Techland BD is well recognized. The large selection of Biostar Motherboard available at Techland BD is well recognized.
