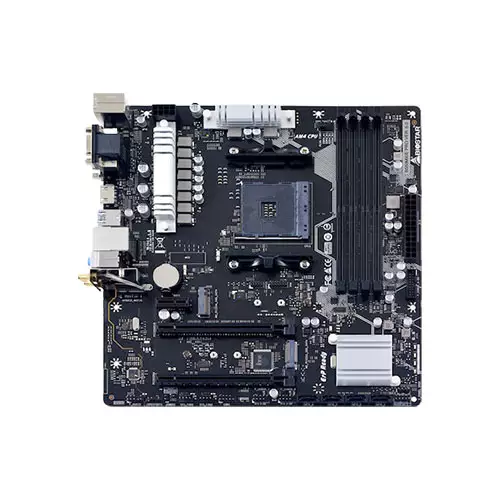

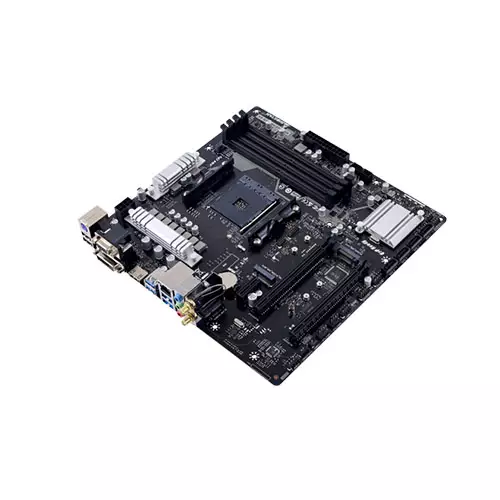

BIOSTAR B550MX/E PRO MICRO AM4 DDR4 ATX AMD MOTHERBOARD
BIOSTAR B550MX/E PRO MICRO AM4 DDR4 ATX AMD MOTHERBOARD BIOSTAR B550MX/E PRO MICRO AM4 DDR4 ATX AMD MOTHERBOARD - 1 BIOSTAR B550MX/E PRO MICRO AM4 DDR4 ATX AMD MOTHERBOARD - 2 BIOSTAR B550MX/E PRO MICRO AM4 DDR4 ATX AMD MOTHERBOARD - 3
Discount Tag

BIOSTAR B550MX/E PRO MICRO AM4 DDR4 ATX AMD MOTHERBOARD

1 Reviews
Stock : In Stock
PID : P2482506030
Brand : Biostar
Model : B550MX/E PRO
Warranty : 3 Year
  • AMD B550 single chip architecture
  • Supports PCIe M.2 4.0 (64Gb/s)
  • Supports HDMI 4K resolution
  • Supports WiFi 6 module

    • Product Pricing

    Discount Price

    ৳10,900 ৳12,000
    + Available Payment Method

    EMI Start From*

    ৳384

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU Socket AM4 support AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Future) processors
    Support for future AMD Ryzen processors with BIOS update

    Mainboard

    Chipset AMD B550

    Memory

    Memory 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs)

    Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133

    3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133

    3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133

    4 x DDR4 DIMM Memory Slot, Max. Supports up to 128 GB of Memory

    Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module

    Storage

    Supported Storage Total supports 2 x M.2 socket and 4 x SATA III (6Gb/s) ports

    4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10

    1 x M.2 (M Key) Socket (M2_PCIEG4_64G_SATA):

    Supports M.2 Type 2242/ 2260/ 2280 SSD module

    Supports PCIe 4.0 x4 (64Gb/s)/ 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD

    1 x M.2 (M Key) Socket (M2_PCIEG3_32G_SATA):

    Supports M.2 Type 2242/ 2260/ 2280 SSD module

    Supports PCIe 3.0 x4 (32Gb/s) & SATA III (6.0Gb/s) SSD

    Networking & Connectivity

    LAN Realtek RTL8111H

    10/ 100/ 1000 Mb/s auto negotiation, Half / Full duplex capability

    Audio & Microphone

    Audio ALC897

    7.1 Channels, High Definition Audio, Hi-Fi (Front)

    Ports

    Slots AMD Ryzen 5000/3000 Series Processors

    1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode) or AMD Ryzen 5000 G/4000 G Series Processors

    1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode)

    AMD B550 Chipset

    1 x PCIe 3.0 x16 Slot (x4 mode)

    1 x PCIe 3.0 x1 Slot

    * According to different CPUs will have different speeds.

    * PCIe 4.0 speed only for AMD Ryzen 3rd Gen Matisse and 4th Gen Vermeer CPUs.

    * When using PCIe x1 slot (PCIEG3X1), PCIe x16 slot (PCIEG3X4) will be adjusted to x2 lanes.
    Internal I/O Ports 4 x SATA III (6.0Gb/s) Connectors

    1 x M.2 (E Key) Socket : Supports 2230 type Wi-Fi & Bluetooth module

    2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)

    1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)

    8-Pin Power Connector

    24-Pin Power Connector

    CPU Fan Connector

    2 x System Fan Connectors

    Front Panel Header

    Front Audio Header

    Internal Stereo Speaker Header

    Clear CMOS Header

    S/PDIF out Connector

    COM Port Header

    TPM Header

    SYSTEM Status LED

    * M.2 (E key) Wi-Fi card is not provided
    External I/O Ports 2 x WIFI Antenna Ports

    1 x PS/2 Keyboard / Mouse

    1 x DVI-D Port

    1 x VGA Port

    1 x HDMI Port

    1 x LAN port

    4 x USB 3.2 (Gen1) Ports

    2 x USB 2.0 Ports

    3 x Audio Jack
    USB 6 x USB 3.2 (Gen1) ports (4 on rear I/Os and 2 via internal headers)

    6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
    HDMI 1 x HDMI Port

    Physical Specification

    Dimension Micro ATX Form Factor Dimension: 24.4cm x 24.4cm ( W x L )

    Warranty Information

    Warranty 3 Year

    PRODUCT DESCRIPTION

    BEST BIOSTAR B550MX/E PRO MOTHERBOARD PRICE IN BANGLADESH

    The BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard is a powerful and versatile motherboard that supports AMD Ryzen 3rd Gen (Matisse/ Renoir) and Ryzen 4th Gen (Vermeer/ Future) processors. With a compact Micro ATX form factor and AMD B550 chipset, this motherboard offers a range of features including Realtek ALC897 audio with 7.1 channel support, Hi-Fi front audio, and multiple expansion slots for PCIe and M.2 sockets. The board can support up to 128GB of DDR4 memory across 4 DIMM slots, with support for dual-channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133. This makes it ideal for demanding applications such as gaming or content creation. In addition, the BIOSTAR B550MX/E PRO motherboard also offers HDMI, VGA, and DVI-D outputs for graphics, as well as USB 3.2 (Gen1) and USB 2.0 ports for connectivity. It also comes with Realtek RTL8111H LAN port for fast internet connection, wireless communication module, and support for RAID 0, 1, 10 storage. To top it off, the BIOSTAR B550MX/E PRO motherboard includes special features like A.I FAN and PCIe M.2 4.0. And with a manufacturing warranty of 3 years, you can rest assured that your investment is protected.If you're looking for a reliable and feature-rich motherboard at the best price in Bangladesh's techland, the BIOSTAR B550MX/E PRO DDR4 AMD AM4 Micro ATX Motherboard is an excellent choice.
