Product Information

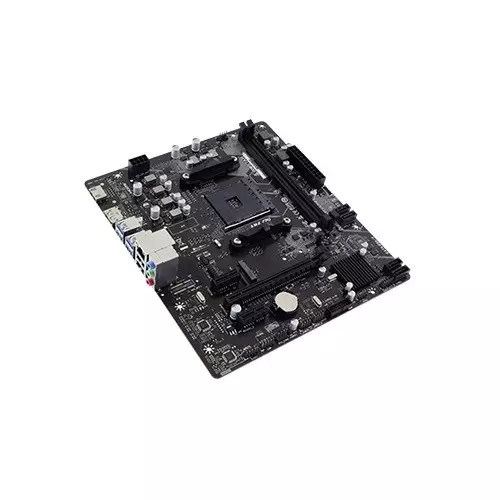

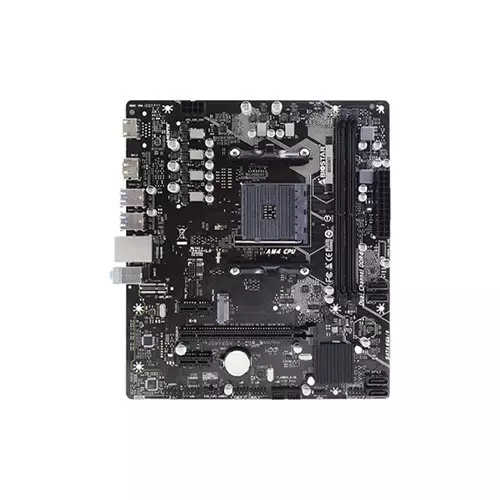

BIOSTAR B550MT V 6.0 DDR4 AMD AM4 Micro ATX Motherboard
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Ryzen 4th Gen (Vermeer/ Cezanne) processors
Support for future AMD Ryzen processors with BIOS update
Mainboard
Memory
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
4th Gen AMD Ryzen with Radeon Graphics Processors (Cezanne APUs):
Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/
4000(OC)/ 3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
3rd Gen AMD Ryzen Processors (Matisse CPUs):
Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/
3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/2133
3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs):
Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/
4000(OC)/3800(OC)/3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133
2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB of Memory
Each DIMM supports non-ECC 8/ 16/ 32 GB DDR4 module
Storage
1 x M.2 (M Key) Socket (M2M_CPU):
Supports M.2 Type 2242/ 2260/ 2280 SSD module
AMD Ryzen 5000/3000 Series Processors
Supports PCIe 4.0 x 4 (64Gb/s) & SATA III (6.0Gb/s) SSD
AMD Ryzen 5000 G/4000 G Series Processors
Supports PCIe 3.0 x 4 (32Gb/s) & SATA III (6.0Gb/s) SSD
AMD B550 Chipset
4 x SATA III Connectors (6Gb/s) : Supports AHCI & RAID 0, 1, 10
* M.2 (M2M_CPU) Socket: The bandwidth is dependent on the CPU.
Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on
Ryzen 3rd Gen Matisse & 4th Gen Vermeer.
Networking & Connectivity
10/ 100/ 1000 Mb/s auto-negotiation, Half / Full duplex capability
Audio & Microphone
7.1 Channels, High-Definition Audio, Hi-Fi (Front)
Ports
1 x HDMI Port
1 x LAN port
4 x USB 3.2 (Gen1) Ports
2 x USB 2.0 Ports
3 x Audio Jack
2 x USB 2.0 Header (each header supports 2 USB 2.0 ports)
1 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports)
1 x USB 3.2 (Gen2) Type-C Header
1 x 8-pin Power Connector
1 x 24-pin Power Connector
1 x CPU Fan Connector
1 x System Fan Connector
1 x Front Panel Header
1 x Front Audio Header
1 x Internal Stereo Speaker Header
1 x Clear CMOS Header
1 x COM Port Header
1 x TPM Header
6 x USB 3.2 (Gen1) ports(4 on rear I/Os and 2 via internal headers)
6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)
Video Features
Supports DX12
Supports HDCP
Others
1 x I/O Shield
1 x DVD Driver
1 x Quick Guide
CPU / System Fan Monitoring
Smart / Manual CPU Fan Control
CPU/DDR Voltage Monitoring
Physical Specification
1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode)
or
AMD Ryzen 5000 G/4000 G Series Processors
1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode)
AMD B550 Chipset
2 x PCIe 3.0 x1 Slot
Technical Info
Warranty Information
PRODUCT DESCRIPTION
BIOSTAR B550MT V 6.0 DDR4 AMD AM4 Micro ATX Motherboard in Bangladesh
BIOSTAR B550MT V 6.0 DDR4 AMD AM4 Micro ATX Motherboard is a high-performance motherboard designed for AMD Ryzen processors. It offers excellent compatibility and robust features for gamers and tech enthusiasts in Bangladesh. Its compact Micro ATX form factor makes it ideal for compact PC builds without compromising performance or features.
Technical Details
AMD B550 chipset powers BIOSTAR B550MT V 6.0 and supports AMD Ryzen 3rd and 4th Gen processors, ensuring compatibility with the latest technology. It features dual DDR4 DIMM memory slots with support for up to 64GB, catering to demanding multitasking and gaming needs. With 1 PCIe 4.0 x16 slot for high-speed graphics cards and 1 M.2 socket supporting PCIe 4.0 or PCIe 3.0, it ensures lightning-fast data transfer speeds and storage capabilities. The motherboard also includes advanced audio features powered by the ALC897 codec, offering high-definition sound with 7.1-channel Hi-Fi support. Connectivity options are abundant, with USB 3.2 (Gen1 and Gen2), HDMI, DP, and gigabit LAN, making it a versatile choice for modern PC builds.
Availability and Usability
BIOSTAR B550MT V 6.0 is available at Tech Land BD, where it offers unmatched value and reliability. This motherboard is ideal for gamers, content creators, and professionals who require a robust, feature-rich platform. Its compact size and impressive compatibility make it a practical choice for space-saving setups. The BIOSTAR B550MT V 6.0 price in BD is competitive, ensuring that customers get premium performance without breaking the bank.
Features
- Supports AMD Ryzen 3rd and 4th Gen processors.
- Compact Micro ATX form factor for versatile builds.
- PCIe 4.0 and M.2 support high-speed graphics and storage.
- Advanced audio with 7.1-channel Hi-Fi capabilities.
- Extensive connectivity options, including USB 3.2 and gigabit LAN.
Get the Best Deal at Tech Land BD
Don't miss the chance to upgrade your PC with the BIOSTAR B550MT V 6.0 from Tech Land BD. Its cutting-edge features, compact design, and excellent performance make it a top choice for gamers and professionals. The BIOSTAR B550MT V 6.0 price in Bangladesh is highly competitive, ensuring you get the best value for your investment. Visit Tech Land BD today and secure your motherboard before stocks run out!
