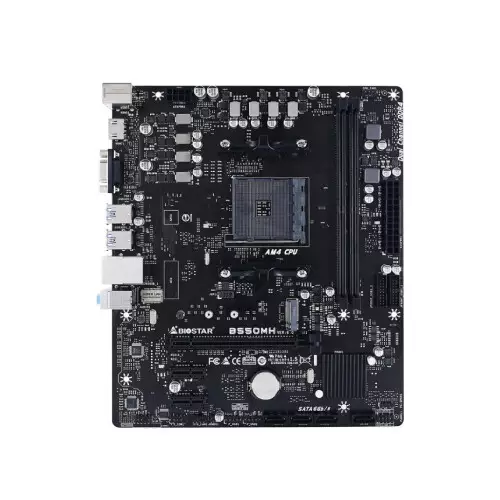

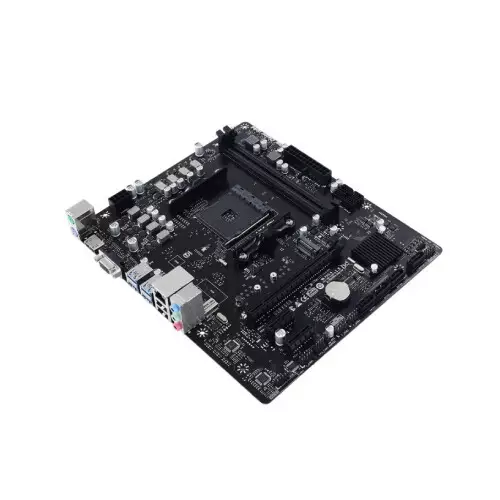

Biostar B550MHP Micro ATX AMD AM4 Motherboard
Biostar B550MHP Micro ATX AMD AM4 Motherboard Biostar B550MHP Micro ATX AMD AM4 Motherboard - 0 Biostar B550MHP Micro ATX AMD AM4 Motherboard - 1 Biostar B550MHP Micro ATX AMD AM4 Motherboard - 2
Discount Tag

Biostar B550MHP Micro ATX AMD AM4 Motherboard

0 Reviews
Stock : In Stock
PID : P2312510002
Brand : Biostar
Model : B550MHP
Warranty : 3 Years

Chipset: AMD B550

CPU SUPPORT: Socket AM4 support

MEMORY: Dual Channel DDR4

STORAGE: 4 x SATA III Connector (6Gb/s)

Product Pricing

Discount Price

৳8,700 ৳9,500
+ Available Payment Method

EMI Start From*

৳306

PRODUCT SPECIFICATIONS

Processor

Supported CPU Socket AM4 support AMD 3rd Gen Ryzen (Matisse/ Renoir) processors and Ryzen 4th Gen (Vermeer) processors
Chipset

AMD B550

Memory

Memory 4th Gen AMD Ryzen Processors (Vermeer CPUs/ Future APUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133; 3rd Gen AMD Ryzen Processors (Matisse CPUs): Supports Dual Channel DDR4 4400+(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133; 3rd Gen AMD Ryzen with Radeon Graphics Processors (Renoir APUs): Supports Dual Channel DDR4 4933+(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4000(OC)/ 3800(OC)/ 3600(OC)/ 3200/ 2933/ 2667/ 2400/ 2133; 2 x DDR4 DIMM Memory Slot, Max. Supports up to 64 GB Memory; Each DIMM supports non-ECC and ECC Un-buffered 8/ 16/ 32 GB DDR4 module

Storage

Supported Storage 4 x SATA III Connector (6Gb/s) : Supports AHCI & RAID 0, 1, 10; 1 x M.2 (M Key) Socket: Supports M.2 Type 2242/ 2260/ 2280 SSD module; Supports PCIe 4.0 x 4 (64Gb/s)/ 3.0 x 4 (32Gb/s); Supports SATA III (6.0Gb/s) SSD; * M.2 (M Key) Socket (M2_PCIe-SATA1): The bandwidth is depended on CPU. Supports PCIe 4.0 x 4 (64Gb/s) speed, which depends only on Ryzen 3rd Gen Matisse.

Graphics

Graphics By CPU model; Supports DX12; Supports HDCP

Networking & Connectivity

LAN

Realtek RTL8111H, 10/100/1000 Mb/s auto negotiation, Half / Full duplex capability

Audio & Microphone

Audio ALC887; 7.1 Channels, High Definition Audio, Hi-Fi (Front)

Ports

Slots

MD Ryzen 5000/3000 Series Processors;

1 x PCIe 4.0 x16 Slot (x16 or x4/x4/x4/x4 mode);

or AMD Ryzen 5000 G/4000 G Series Processors;

1 x PCIe 3.0 x16 Slot (x16 or x8/x4/x4 mode);

AMD B550 Chipset; 2 x PCIe 3.0 x 1 Slot; *

According to different CPUs will have different speeds.
Internal I/O Ports

4 x SATA III (6.0Gb/s) Connectors;

2 x USB 2.0 Header (each header supports 2 USB 2.0 ports);

2 x USB 3.2 (Gen1) Header (each header supports 2 USB 3.2 (Gen1) ports);

1 x 8-Pin Power Connector;

1 x 24-Pin Power Connector;

1 x CPU Fan Connector;

1 x System Fan Connector;

1 x Front Panel Header;

1 x Front Audio Header;

1 x Clear CMOS Header;

1 x Internal Stereo Speaker Header;

1 x COM Port Header
External I/O Ports

1 x PS/2 Keyboard;

1 x PS/2 Mouse;

1 x HDMI Port;

1 x VGA Port;

1 x LAN port;

4 x USB 3.2 (Gen1) Ports;

2 x USB 2.0 Ports;

3 x Audio Jack
USB

8 x USB 3.2 (Gen1) ports (4 on rear I/Os and 4 via internal headers);

6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

Others

Accessories

2 x SATA Cable;

1 x I/O Shield;

1 x DVD Driver;

1 x Quick Guide

Physical Specification

Materials

Micro ATX Form Factor
Dimension 4.4cm x 20.8cm

Technical Info

OS

Supports Windows 10(64bit) / 11(64bit)

Warranty Information

Warranty 3 Years

PRODUCT DESCRIPTION

Biostar B550MHP Micro ATX AMD AM4 Motherboard

The Biostar B550MHP Micro ATX Motherboard is an ideal foundation for AMD-based desktop builds, offering a perfect balance of power, reliability, and value for both gamers and professionals. Powered by the AMD B550 chipset and compatible with AMD 3rd Gen Ryzen (Matisse/Renoir) and 4th Gen Ryzen (Vermeer) processors via the AM4 socket, it ensures excellent computing performance and next-gen efficiency. The board supports dual-channel DDR4 memory up to 64GB, with overclocking speeds reaching 4933+ MHz (OC) for Renoir APUs, providing users with remarkable multitasking and data throughput. Equipped with one PCIe 4.0 x16 slot, it enables compatibility with the latest graphics cards, offering smoother gaming and enhanced rendering capabilities. The storage configuration includes one ultra-fast M.2 slot supporting PCIe 4.0 x4/3.0 x4 and four SATA III ports, giving users the flexibility to combine SSDs and HDDs for both speed and capacity. In terms of connectivity, the Biostar B550MHP features a Realtek RTL8111H Gigabit LAN controller, ensuring stable and reliable wired networking for gaming and online productivity. The board provides comprehensive USB connectivity, including 8 x USB 3.2 Gen1 and 6 x USB 2.0 ports through rear and internal headers, allowing easy connection for peripherals, storage devices, and accessories. For display output, it includes HDMI and VGA ports, supporting modern and legacy monitors, and is powered by the integrated graphics of compatible Ryzen processors. The audio system, driven by the Realtek ALC887 7.1-channel HD codec, delivers immersive and clear sound, perfect for media consumption, video calls, and gaming. Additional features such as a front panel header, CPU/system fan connectors, clear CMOS header, and internal speaker header provide all the essential controls for customization and stability. With a durable Micro ATX form factor, it easily fits most cases while maintaining expandability and robust power delivery through its 8-pin CPU and 24-pin ATX power connectors. The package includes two SATA cables, an I/O shield, a DVD driver, and a quick installation guide, ensuring a smooth setup experience.

Biostar B550MHP Micro ATX AMD AM4 Motherboard Price in BD

When purchasing the Biostar B550MHP Micro ATX AMD AM4 Motherboard from Tech Land BD, customers can expect 100% genuine products, competitive prices, and dependable after-sales support. Tech Land BD guarantees authentic components, fast nationwide delivery, and expert guidance for both first-time builders and enthusiasts. For those seeking a reliable, affordable, and high-performing AM4 motherboard, Tech Land BD remains the most trusted destination in Bangladesh.

FAQs:

Q1: Does the Biostar B550MHP support Ryzen 5000 processors?

A1: Yes, it supports AMD 4th Gen Ryzen (Vermeer) processors, including most Ryzen 5000 CPUs.

Q2: Can I use an NVMe PCIe 4.0 SSD on this motherboard?

A2: Yes, the M.2 slot supports PCIe 4.0 x4 SSDs, delivering high-speed storage performance when paired with a Ryzen 3rd Gen (Matisse) or newer CPU.

Q3: What is the maximum supported RAM speed?

A3: The motherboard supports DDR4 memory speeds up to 4933+ MHz (OC), depending on the CPU model used.
