BIOSTAR B450MH Micro ATX AMD Motherboard

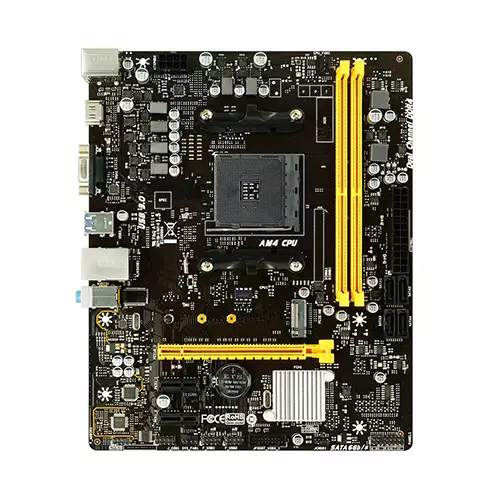

BIOSTAR B450MH Micro ATX AMD Motherboard BIOSTAR B450MH Micro ATX AMD Motherboard - 1 BIOSTAR B450MH Micro ATX AMD Motherboard - 2
Discount Tag

BIOSTAR B450MH Micro ATX AMD Motherboard

1 Reviews
Stock : Out of Stock
PID : P2482506013
Brand : Biostar
Model : BIOSTAR B450MH
Warranty : 3 years
  • AMD B450 single chip architecture
  • Supports Realtek Gigabit LAN
  • Supports USB 3.2 Gen1
  • Supports PCIe M.2

    • Product Pricing

    Discount Price

    ৳7,300 ৳7,700
    + Available Payment Method

    EMI Start From*

    ৳257

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU 2 x PCIe 2.0 x1 Slots
    1 x PCIe 3.0 x16 Slot (When using APU, the bandwidth is x8 speed)

    Mainboard

    Chipset AMD B450

    Memory

    Memory Support Dual Channel DDR4 1866/ 2133/ 2400/ 2667/ 2933/ 3200(OC) MHz
    2 x DDR4 DIMM Memory Slot
    Max. Supports up to 32GB Memory
    Each DIMM supports non-ECC 8/16 GB DDR4 module
    ※Please refer to www.biostar.com.tw for Memory support list.

    Storage

    Supported Storage 4 x SATA III Connectors (6Gb/s) :
    Supports AHCI & RAID 0, 1, 10
    1 x M.2 (M Key) 32Gb/s Connector:
    Supports PCIe (32Gb/s) & SATA III (6Gb/s) SSD (Ryzen series - Summit Ridge / Pinnacle Ridge / Raven Ridge)
    Supports SATA III (6Gb/s) SSD (A-series APU - Bristol Ridge)

    Graphics

    Graphics By CPU model
    Supports DX12
    Supports HDCP

    Networking & Connectivity

    LAN Realtek RTL8111H - 10/100/1000Mb/s Controller
    Support Super LAN Surge Protection

    Audio & Microphone

    Audio ALC887
    7.1 Channels, High Definition Audio

    Ports

    Slots 1 x PCI-E 3.0 x16 Slot
    1 x PCI-E 2.0 x16 Slot(x4)
    2 x PCI-E 2.0 x1 Slots
    Internal I/O Ports 1 x USB 3.2 Gen1 Header(5Gb/s) (each header supports 2 USB 3.2 Gen1 ports)
    1 x USB 3.2 Gen1 Header(each header supports 2 USB 3.2 Gen1 ports)
    2 x USB 2.0 Headers (each header supports 2 USB 2.0 ports)
    4 x SATA III Connectors (6Gb/s)
    1 x Front Audio Header
    1 x Front Panel Header
    1 x CPU Fan Connector
    1 x System Fan Connector
    1 x 8-Pin Power Connector
    1 x 24-Pin Power Connector
    1 x Clear CMOS Header
    1 x COM Port Header
    External I/O Ports 1 x PS/2 Keyboard/Mouse
    4 x USB 3.2 Gen1 (5Gb/s) Ports
    2 x USB 2.0 Ports
    1 x HDMI Port
    1 x VGA Port
    1 x LAN Port
    3 x Audio Jacks
    USB 6 x USB 3.2 Gen1 ports (4 on rear I/Os and 2 via internal headers)
    6 x USB 2.0 ports (2 on rear I/Os and 4 via internal headers)

    Physical Specification

    Form Factor Micro ATX
    Dimension 19.8cm x 24.4cm ( W x L )

    Warranty Information

    Warranty 03 Years

    PRODUCT DESCRIPTION

    A Micro ATX Motherboard with Rich Features

    The CPU socket and slots for RAM, SSD, and graphics card are all designed to interface with corresponding components quickly. The adaptive networking intelligence ensures that networking speed always keeps up with any loading level. Fast speed is only part of the story. The motherboard is DIY friendly and comes with comprehensive protection. From installation to maintenance, it won’t take a sweat.

    AMD B450 chipset

    AMD B450 is the high-end chipset for overclockers and tweakers who need robust platforms. This chip provides the ultimate low-level control to its users and delivers ultimate graphics card bandwidth.

    DX12

    DirectX 12 introduces the next version of Direct3D, the graphics API at the heart of DirectX. Direct3D is one of the most critical pieces of a game or game engine, and we've redesigned it to be faster and more efficient than ever before. Direct3D 12 enables richer scenes, more objects, and full utilization of modern GPU hardware.

    SmartSpeedLAN

    SmartSpeedLAN is a free software application that monitors and manages your PC's network behavior. With a user-friendly GUI, it allows you to select and prioritize different types of network traffic, including gaming, media streaming, communications, or web surfing. You can also set any specific applications, choosing to prioritize or block accordingly. SmartSpeedLAN can feature automatic management options that use adaptive networking intelligence to ensure that you are getting the best online experience possible.
