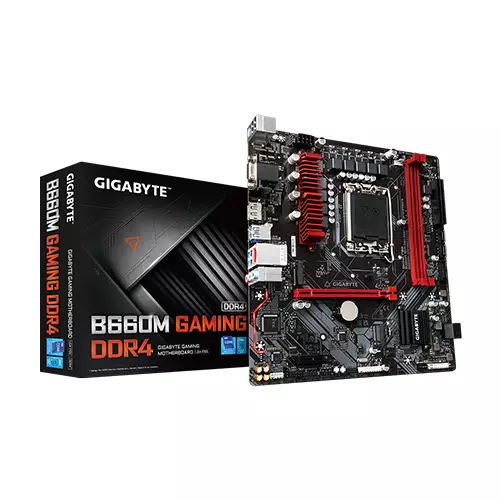

Gigabyte B660M GAMING DDR4 12th Gen Micro ATX Motherboard

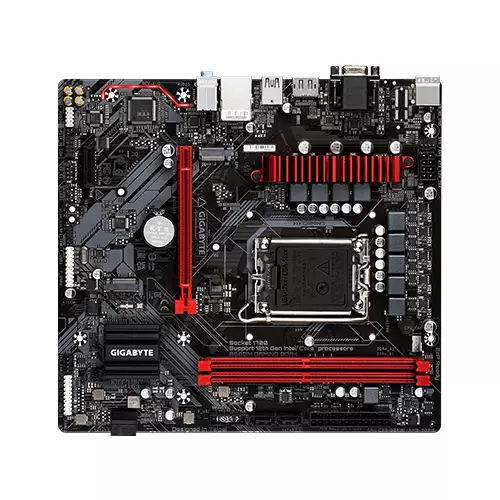

Gigabyte B660M GAMING DDR4 12th Gen Micro ATX Motherboard Gigabyte B660M GAMING DDR4 12th Gen Micro ATX Motherboard - 1 Gigabyte B660M GAMING DDR4 12th Gen Micro ATX Motherboard - 2

Gigabyte B660M GAMING DDR4 12th Gen Micro ATX Motherboard

0 Reviews
Stock : Out of Stock
PID : P0392506184
Brand : Gigabyte
Model : B660M GAMING DDR4
Warranty : 3 years
  • CPU Socket Type: LGA 1700
  • Motherboard Chipset: B660
  • Audio : Realtek Audio CODEC
  • Form Factor : Micro ATX

    • Product Pricing

    Discount Price

    ৳12,300 ৳12,500
    + Available Payment Method

    EMI Start From*

    ৳433

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors

    L3 cache varies with CPU

    Mainboard

    Chipset Intel B660 Express Chipset
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR4 3200/3000/2933/2666/2400/2133 MHz memory modules

    4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Storage

    Supported Storage CPU:

    1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

    4 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10

    Intel® Optane™ Memory Ready

    Graphics

    Graphics 1 x D-Sub port, supporting a maximum resolution of 1920x1200@60 Hz

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.1 version and HDCP 2.3.

    ** Support native HDMI 2.1 TMDS compatible ports.

    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3

    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version.

    Networking & Connectivity

    LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

    Audio & Microphone

    Audio Realtek® Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    Ports

    Slots 1 x PCI Express x16 slot, running at x16

    (The PCIEX16 slot conforms to PCI Express 4.0 standard.)

    2 x PCI Express x1 slots

    (The PCIEX1 slots conform to PCI Express 3.0 standard.)
    Internal I/O Ports 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    3 x system fan headers

    1 x addressable LED strip header

    1 x RGB LED strip header

    2 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    1 x serial port header

    1 x parallel port header

    1 x S/PDIF Out header

    1 x Q-Flash Plus button

    1 x reset button

    1 x reset jumper

    1 x Clear CMOS jumper
    External I/O Ports 2 x USB 2.0/1.1 ports

    1 x PS/2 keyboard/mouse port

    1 x D-Sub port

    1 x HDMI port

    2 x DisplayPorts

    3 x USB 3.2 Gen 1 ports

    1 x USB Type-C® port, with USB 3.2 Gen 2 support

    1 x RJ-45 port

    3 x audio jacks
    USB Chipset:

    1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2 support

    5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)

    2 x USB 2.0/1.1 ports on the back panel

    Chipset+2 USB 2.0 Hubs:

    4 x USB 2.0/1.1 ports available through the internal USB headers

    Physical Specification

    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

    Warranty Information

    Warranty 03 Years

    PRODUCT DESCRIPTION

    Gigabyte B660M GAMING Motherboard

    The Gigabyte B660M GAMING Motherboard From Gigabyte.Gigabyte B660M GAMING Motherboard is offering a tested and proven platform that ensures proper compatibility with profiles up to 5333MHz and beyond. All users need to do to attain this performance boost is to ensure that their memory module is XMP capable and that the XMP function is activated and enabled on their GIGABYTE motherboard.Adoption of 2.5G LAN provide up to 2.5 GbE network connectivity, with at least 2 times faster transfer speeds compared to general 1 GbE networking, perfectly designed for gamers with ultimate online gaming experience.The USB Type-C® is a new reversible connector that is loaded with useful features such as USB 3.2 Gen2 support for 10Gb/s transfer speed. Powered by the Intel® USB 3.2 Gen2 controller, this little port provides the best USB Type-C® experience possible.HDMI 2.0, which is backwards compatible with HDMI 1.4, offers 18 Gb/s of bandwidth – nearly twice that of the previous generation. This unlocks the potential for users to transfer multiple video streams, as well as a native cinematic 21:9 ratio (which most movies are shot in), offering the best visual experience for viewers.


    [product_table id="34" limit="10" type="filter" filter_category="139"]

    CUSTOMER REVIEWS

    Overall Rating

    0 out of 5 stars
    0
    Total Reviews

    Login to write a review.

    5 star
    0
    4 star
    0
    3 star
    0
    2 star
    0
    1 star
    0

    No reviews yet

    Be the first to share your thoughts about this product.

    What is the Gigabyte B660M GAMING DDR4 12th Gen Micro ATX Motherboard Price in Bangladesh 2026 ?

    The Gigabyte B660M GAMING DDR4 Price in BD is 12,300৳ . This Gigabyte B660M GAMING DDR4 12th Gen Micro ATX Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte B660M GAMING DDR4 by 12,300৳ and its regular price is 12,500৳ Which is also Out of Stock Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
