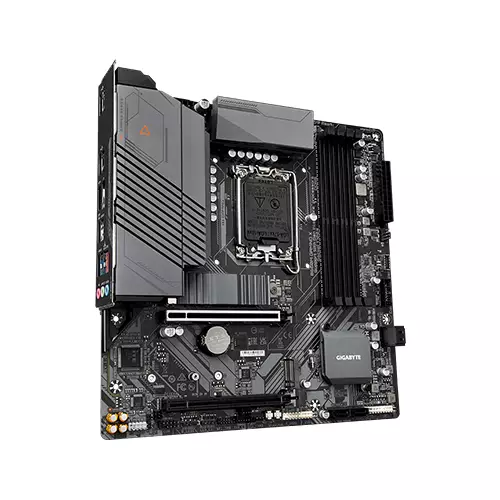

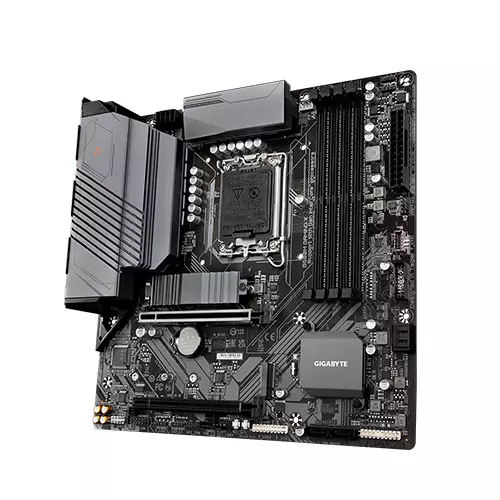

GIGABYTE B660M GAMING X DDR5 12TH GEN INTEL MICRO-ATX MOTHERBOARD
GIGABYTE B660M GAMING X DDR5 12TH GEN INTEL MICRO-ATX MOTHERBOARD GIGABYTE B660M GAMING X DDR5 12TH GEN INTEL MICRO-ATX MOTHERBOARD - 1 GIGABYTE B660M GAMING X DDR5 12TH GEN INTEL MICRO-ATX MOTHERBOARD - 2 GIGABYTE B660M GAMING X DDR5 12TH GEN INTEL MICRO-ATX MOTHERBOARD - 4

GIGABYTE B660M GAMING X DDR5 12TH GEN INTEL MICRO-ATX MOTHERBOARD

0 Reviews
Stock : Out of Stock
PID : P0392506300
Brand : Gigabyte
Model : B660M GAMING X DDR5
Warranty : 3 years
  • LGA1700 Socket
  • Dual Channel Memory Architecture
  • Realtek Audio CODEC
  • L3 Cache Varies With CPU

    • Product Pricing

    Discount Price

    ৳20,200 ৳20,500
    + Available Payment Method

    EMI Start From*

    ৳711

    PRODUCT SPECIFICATIONS

    Mainboard

    Chipset Intel® B660 Express Chipset
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Support for DDR5 5600(O.C.) / 5400(O.C.) / 5200(O.C.) /4800/4000 MHz memory modules

    4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory

    Dual channel memory architecture

    Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)

    Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules

    Support for Extreme Memory Profile (XMP) memory modules

    Graphics

    Graphics Integrated Graphics Processor-Intel® HD Graphics support:

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    Support for HDMI 2.1 version and HDCP 2.3.

    Support native HDMI 2.1 TMDS compatible ports.

    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    * Support for DisplayPort 1.2 version and HDCP 2.3

    Networking & Connectivity

    LAN 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
    WiFi wifi 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

    Audio & Microphone

    Audio Realtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on configuring the audio software.
    Support for S/PDIF Out

    Ports

    Internal I/O Ports 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x CPU fan header

    3 x system fan headers

    2 x addressable LED strip headers

    2 x RGB LED strip headers

    2 x M.2 Socket 3 connectors

    4 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x USB Type-C® header, with USB 3.2 Gen 2 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x S/PDIF Out header

    2 x Thunderbolt™ add-in card connectors

    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    1 x serial port header

    1 x reset button

    1 x Q-Flash Plus button

    1 x reset jumper

    1 x Clear CMOS jumper

    Physical Specification

    Form Factor Micro ATX Form Factor; 24.4cm x 24.4cm

    Warranty Information

    Warranty 3 Years Warranty

    PRODUCT DESCRIPTION

    BEST GIGABYTE B660M GAMING X DDR5 MOTHERBOARD PRICE IN BD

    The GIGABYTE B660M Gaming X DDR5 12th Gen Intel Micro-ATX Motherboard is a feature-packed motherboard designed for gamers and PC enthusiasts. It supports 12th generation Intel Core processors, offering powerful performance for demanding tasks and gaming sessions. With the LGA1700 socket, it provides compatibility with a range of processors, including Pentium Gold and Celeron processors. The motherboard supports DDR5 memory technology, allowing for faster data transfer and improved system responsiveness. It features four DDR5 DIMM sockets with a total capacity of up to 192GB, supporting high-speed memory modules up to 5600MHz. The dual-channel memory architecture and support for Extreme Memory Profile (XMP) ensure optimized memory performance. Equipped with integrated Intel HD Graphics support, the motherboard offers HDMI and DisplayPort outputs for high-resolution display connections. The Realtek Audio CODEC delivers high-definition audio with support for 2/4/5.1/7.1-channel configurations. The GIGABYTE B660M Gaming X DDR5 motherboard provides multiple expansion slots, including a PCI Express x16 slot running at x16 and a PCI Express x16 slot running at x4. It offers extensive storage options with M.2 connectors supporting PCIe 4.0 x4/x2 SSDs and SATA 6Gb/s connectors with RAID support. Connectivity options include 2.5GbE LAN, USB 3.2 Gen 2 and Gen 1 ports, USB Type-C, and USB 2.0 ports. The motherboard also features RGB Fusion for customizable lighting effects and comes with a range of bundled software for system management and security. For the best price in BD Tech Land BD, please check with local retailers or online stores in Bangladesh for current pricing and availability. Prices may vary depending on the location and the retailer's pricing policies.
