Product Information

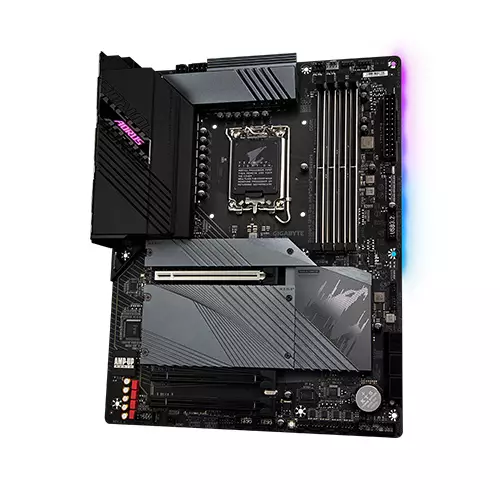

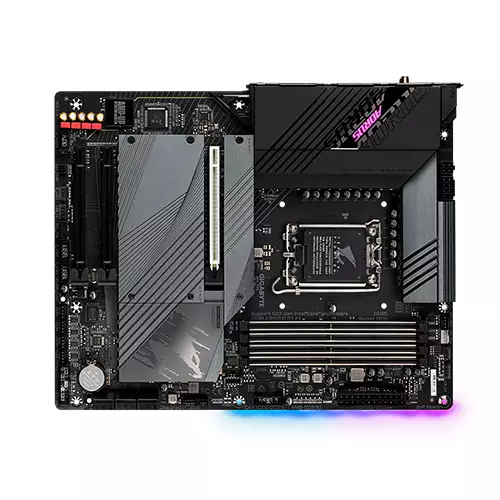

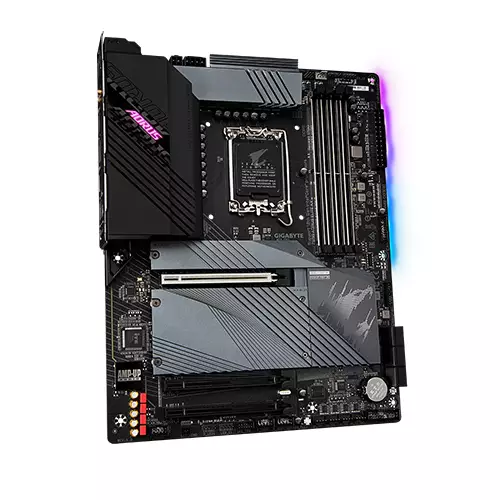

GIGABYTE Z690 AORUS ELITE DDR4 intel 12th Gen WIFI Motherboard
- Supported CPU: 1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7...
- Chipset: Intel® Z690 Express Chipset
- BIOS: 1. 1 x 256 Mbit flash 2. Use of licensed AMI UEFI BIOS 3. PnP 1.0a, DMI 2.7, WfM 2.0, SM B...
- Memory: 1. Support for DDR4 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800...
PRODUCT SPECIFICATIONS
Processor
Supported CPU
1. LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7
processors/Intel® Core™ i5 processors
2. L3 cache varies with CPU
processors/Intel® Core™ i5 processors
2. L3 cache varies with CPU
Mainboard
Chipset
Intel® Z690 Express Chipset
BIOS
1. 1 x 256 Mbit flash
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
2. Use of licensed AMI UEFI BIOS
3. PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Memory
Memory
1. Support for DDR4 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 MHz memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
2. 4 x DDR DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
3. Dual channel memory architecture
4. Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
5. Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
6. Support for Extreme Memory Profile (XMP) memory modules
Storage
Supported Storage
CPU:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
3. 6 x SATA 6Gb/s connectors
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
Chipset:
1. 1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 SATA and PCIe 4.0 x4/x2 SSD support) (M2M_SB)
2. 2 x M.2 connectors (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2Q_SB/M2P_SB)
3. 6 x SATA 6Gb/s connectors
Graphics
Multi-GPU
Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
Graphics
Integrated Graphics Processor-Intel® HD Graphics support:
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
* Support for HDMI 2.1 version and HDCP 2.3.
** Support native HDMI 2.1 TMDS compatible ports.
1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz
* Support for DisplayPort 1.2 version and HDCP 2.3
Networking & Connectivity
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Audio & Microphone
Audio
1. Realtek® ALC1220-VB CODEC
The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2-channel analog output
4. Support for S/PDIF Out
5. 7.1-channel digital signals
The back panel line out jack supports DSD audio.
2. High Definition Audio
3. 2-channel analog output
4. Support for S/PDIF Out
5. 7.1-channel digital signals
Ports
Slots
1. 1 x PCI Express x16 slot, running at x16 (PCIEX16)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the
PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)
* For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the
PCIEX16 slot.
(The PCIEX16 slot conforms to PCI Express 5.0 standard.)
2. 2 x PCI Express x16 slots, running at x4 (PCIEX4_1, PCIEX4_2)
(The PCIEX4 slots conform to PCI Express 3.0 standard.)
Internal I/O Ports
1. 1 x 24-pin ATX main power connector
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 3 x system fan headers
7. 1 x system fan/water cooling pump heade
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 2 x Thunderbolt™ add-in card connectors
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x reset button
20. 1 x Q-Flash Plus button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper
2. 1 x 8-pin ATX 12V power connector
3. 1 x 4-pin ATX 12V power connector
4. 1 x CPU fan header
5. 1 x water cooling CPU fan header
6. 3 x system fan headers
7. 1 x system fan/water cooling pump heade
8. 2 x addressable LED strip headers
9. 2 x RGB LED strip headers
10. 4 x M.2 Socket 3 connectors
11. 6 x SATA 6Gb/s connectors
12. 1 x front panel header
13. 1 x front panel audio header
14. 1 x USB Type-C® header, with USB 3.2 Gen 2 support
15. 1 x USB 3.2 Gen 1 header
16. 2 x USB 2.0/1.1 headers
17. 2 x Thunderbolt™ add-in card connectors
18. 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
19. 1 x reset button
20. 1 x Q-Flash Plus button
21. 1 x reset jumper
22. 1 x Clear CMOS jumper
USB
1. 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support
2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
2. 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
3. 2 x USB 3.2 Gen 2 Type-A ports (red) on the back panel
4. 5 x USB 3.2 Gen 1 ports (3 ports on the back panel, 2 ports available through the internal USB header)
Chipset+2 USB 2.0 Hub:
8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
HDMI
1. 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
2. Support for HDMI 2.1 version and HDCP 2.3.
3. Support native HDMI 2.1 TMDS compatible ports
2. Support for HDMI 2.1 version and HDCP 2.3.
3. Support native HDMI 2.1 TMDS compatible ports
Others
Other Features
Back Panel Connectors:
1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red)
3. 3 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 2 x SMA antenna connectors (2T2R)
6. 1 x HDMI port
7. 1 x DisplayPort
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 2 x audio jacks
1. 1 x USB Type-C® port, with USB 3.2 Gen 2x2 support
2. 2 x USB 3.2 Gen 2 Type-A ports (red)
3. 3 x USB 3.2 Gen 1 ports
4. 4 x USB 2.0/1.1 ports
5. 2 x SMA antenna connectors (2T2R)
6. 1 x HDMI port
7. 1 x DisplayPort
8. 1 x RJ-45 port
9. 1 x optical S/PDIF Out connector
10. 2 x audio jacks
Physical Specification
Form Factor
1. ATX Form Factor; 30.5cm x 24.4cm
Warranty Information
Warranty
3 years
PRODUCT DESCRIPTION
GIGABYTE Z690 AORUS ELITE DDR4 Motherboard
GIGABYTE Z690 AORUS ELITE DDR4 intel 12th Gen WIFI Motherboard comes with Supports 12th Gen Intel® Core™ Series Processors, Dual Channel Non-ECC Unbuffered DDR4, 4 DIMMs, Direct 16+1+2 Digital VRM Design with 70A Power Stage* and Tantalum Polymer Capacitor, Shielded Memory Routing to Avoid Interference, Fully Covered Thermal Design with High Coverage MOSFET Heatsinks, Onboard WIFI 6 802.11ax 2T2R & BT5 with AORUS Antenna, AMP-UP Audio with ALC1220 and WIMA Audio Capacitors, Fast 2.5GbE LAN with Bandwidth Management, 4x Ultra-Fast NVMe PCIe 4.0/3.0 x4 M.2 with Enlarged Thermal Guards SuperSpeed USB 3.2 Gen2x2 TYPE-C® delivers up to 20Gb/s transfer speeds, RGB FUSION 2.0 with Multi-Zone Addressable LED Light Show Design, Support Addressable LED & RGB LED Strips, Smart Fan 6 Features Multiple Temperature Sensors , Hybrid Fan Headers with FAN STOP, Q-Flash Plus Update BIOS without Installing the CPU, Memory and Graphics Card.
[product_table id="34" limit="10" type="filter" filter_category="139"]
CUSTOMER REVIEWS
Overall Rating
0
Total Reviews
Login to write a review.
5 star
0
4 star
0
3 star
0
2 star
0
1 star
0
No reviews yet
Be the first to share your thoughts about this product.
What is the GIGABYTE Z690 AORUS ELITE DDR4 intel 12th Gen WIFI Motherboard Price in Bangladesh 2026 ?
The Gigabyte Z690 AORUS ELITE DDR4 Price in BD is 27,500৳ . This GIGABYTE Z690 AORUS ELITE DDR4 intel 12th Gen WIFI Motherboard Manufacturing by Gigabyte Comes With 3 years Warranty & Based on 0 reviews. Tech Land BD Offers you Gigabyte Z690 AORUS ELITE DDR4 by 27,500৳ and its regular price is 29,500৳ Which is also Up Coming Now at our Showroom. Follow us on Facebook For Regular updates & Offer. Subscribe Our YouTube Channel for Product Reviews.
