GIGABYTE Z690 UD LGA 1700 Intel ATX Motherboard

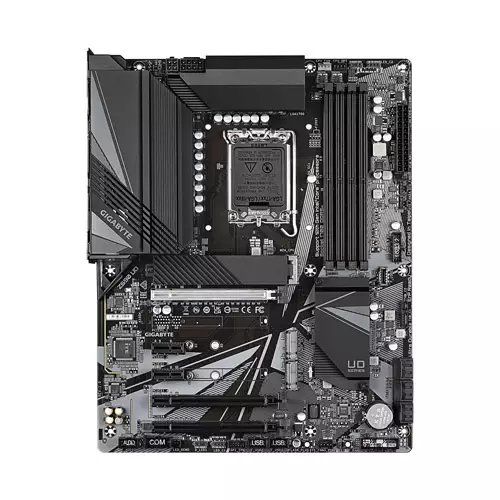

GIGABYTE Z690 UD LGA 1700 Intel ATX Motherboard GIGABYTE Z690 UD LGA 1700 Intel ATX Motherboard - 1 GIGABYTE Z690 UD LGA 1700 Intel ATX Motherboard - 2

GIGABYTE Z690 UD LGA 1700 Intel ATX Motherboard

0 Reviews
Stock : Up Coming
PID : P0392506172
Brand : Gigabyte
Model : Z690 UD
Warranty : 3 years
  • Intel Z690 Chipset
  • ATX Form Factor
  • Intel LGA 1700 Socket
  • 4 x Dual-Channel DDR5 RAM Slots

    • PRODUCT SPECIFICATIONS

    Processor

    Supported CPU LGA1700 socket: Support for 12th Generation Intel® Core™ i9 processors/Intel® Core™ i7 processors/Intel® Core™ i5 processors

    L3 cache varies with CPU

    Mainboard

    Chipset Intel Z690 Express Chipset
    BIOS 1 x 256 Mbit flash

    Use of licensed AMI UEFI BIOS

    PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0

    Memory

    Memory Memory formatRealtek® Audio CODEC
    High Definition Audio
    2/4/5.1/7.1-channel

    4 X DIMM 288 pins (DDR5)

    Memory Frequency(ies)

    DDR5 4000 MHz

    DDR5 4800 MHz

    DDR5 5200 MHz

    DDR5 5400 MHz

    DDR5 5600 MHz

    DDR5 5800 MHz

    DDR5 6000 MHz

    Memory type DDR5

    Memory technology Dual Channel

    Maximum RAM capacity per slot 32 GB

    Maximum RAM capacity 128 GB

    Storage

    Supported Storage CPU:

    1 x M.2 connector (Socket 3, M key, type 2260/2280/22110 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)

    Chipset:

    1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)

    1 x M.2 connector (Socket 3, M key, type 2260/2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)

    6 x SATA 6Gb/s connectors

    Support for RAID 0, RAID 1, RAID 5, and RAID 10

    Graphics

    Multi-GPU Support for AMD Quad-GPU CrossFire™ and 2-Way AMD CrossFire™ technologies
    Graphics Integrated Graphics Processor-Intel® HD Graphics support:

    1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz

    * Support for HDMI 2.0 version and HDCP 2.3.

    1 x DisplayPort, supporting a maximum resolution of 4096x2304@60 Hz

    Networking & Connectivity

    LAN Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

    Audio & Microphone

    Audio Realtek® Audio CODEC

    High Definition Audio

    2/4/5.1/7.1-channel

    Ports

    Slots 1 x PCI Express x16 slot, running at x16 (PCIEX16)

    * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.

    (The PCIEX16 slot conforms to PCI Express 5.0 standard.)

    1 x PCI Express x16 slot, running at x4 (PCIEX4)

    1 x PCI Express x16 slot, running at x1 (PCIEX1_4)

    2 x PCI Express x1 slots
    Internal I/O Ports 1 x 24-pin ATX main power connector

    1 x 8-pin ATX 12V power connector

    1 x 4-pin ATX 12V power connector

    1 x CPU fan header

    1 x water cooling CPU fan header

    3 x system fan headers

    1 x system fan/water cooling pump header

    2 x addressable LED strip headers

    2 x RGB LED strip headers

    3 x M.2 Socket 3 connectors

    6 x SATA 6Gb/s connectors

    1 x front panel header

    1 x front panel audio header

    1 x S/PDIF Out header

    1 x USB Type-C® header, with USB 3.2 Gen 1 support

    1 x USB 3.2 Gen 1 header

    2 x USB 2.0/1.1 headers

    1 x serial port header

    2 x Thunderbolt™ add-in card connectors

    1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)

    1 x reset button

    1 x reset jumper

    1 x Q-Flash Plus button

    1 x Clear CMOS jumper
    External I/O Ports 1 x PS/2 keyboard/mouse port

    1 x DisplayPort

    1 x HDMI port

    1 x USB Type-C® port, with USB 3.2 Gen 2x2 support

    1 x USB 3.2 Gen 2 Type-A port (red)

    4 x USB 3.2 Gen 1 ports

    4 x USB 2.0/1.1 ports

    1 x RJ-45 port

    3 x audio jacks
    USB Chipset:

    1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2x2 support

    1 x USB Type-C® port with USB 3.2 Gen 1 support, available through the internal USB header

    1 x USB 3.2 Gen 2 Type-A ports (red) on the back panel

    6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)

    Chipset+2 USB 2.0 Hubs:

    8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)

    Physical Specification

    Form Factor ATX
    Dimension 30.5cm x 24.4cm

    Warranty Information

    Warranty 3 Years

    PRODUCT DESCRIPTION

    GIGABYTE Z690 UD Motherboard

    The Gigabyte Z690 UD Motherboard will serve as the foundation for your high-performance processor-based gaming PC with Gigabyte-exclusive features like Smart Fan 6. GIGABYTE Z690 UD Motherboard supports 12th generation Intel Core processors, PCI-Express 5.0 16x graphics cards, SATA 6 Gbps and M.2 PCIe 4.0 drives, DDR5 RAM as well as USB 3.1 and 3.2 devices.The 12th generation Intel Core processors are a small revolution in the world of x86 architectures, as they are the first to integrate a hybrid architecture. This process consists of combining two different types of cores on the same chip. The first 1, called Percormance-Cores, are dedicated to performance in games and mono-threaded applications requiring resources. The second type, called Efficient-Cores, are particularly efficient for multitasking and side task processing. Together, the two provide spectacular performance and incredible responsiveness for your system.the GIGABYTE Z690 UD Motherboard. The new king of gaming platform continues the legendary AORUS bloodline with the most robust power delivery and dominant thermal design, glorified with the complete memory overclocking technology to crown your PC with the best Alder Lake’s performance in all its gaming glory.
