Product Information

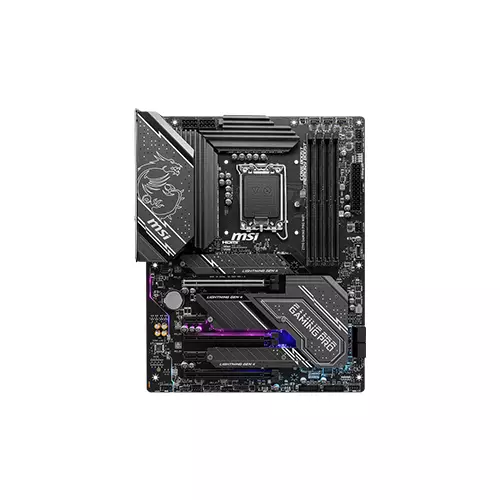

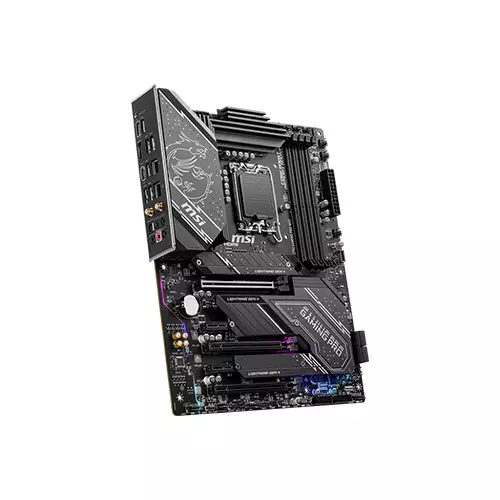

MSI INTEL Z790 GAMING PRO WIFI ATX MOTHERBOARD
- Form Factor ATX
- CPU Socket 1700
- Chipset Intel Z790
- Memory Type DDR5
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Pentium® Gold and Celeron® Processors
LGA 1700
Mainboard
Memory
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/
6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/
5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/
5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6000+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP 3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Storage
M.2_1 Source (From CPU) supports up to PCIe 4.0
x4 , supports 22110/2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe
4.0 x4 , supports 2280/2260/2242 devices
M.2_3 Source (From Chipset) supports up to PCIe
4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
Graphics
Support HDMITM 1.4 with HDR, maximum resolution
of 4K 30Hz
Networking & Connectivity
Realtek® RTL8111H 1Gbps LAN
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz*
(160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio & Microphone
7.1-Channel High Definition Audio
Supports S/PDIF output
Ports
2x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E5 Gen PCIe 4.0 supports up to x4 (From Chipset)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
5x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x TBT connector (JTBT, supports RTD3)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
USB 3.2 Gen 2 10Gbps Type-A
1G LAN
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
HD Audio Connectors
Flash BIOS Button
HDMI™ 1.4 Port
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 1 5Gbps Type-A
Optical S/PDIF OUT
4x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Physical Specification
Warranty Information
PRODUCT DESCRIPTION
MSI INTEL Z790 GAMING PRO Motherboard in Bangladesh
Meet the Z790 GAMING PRO WIFI, here to support the very latest 13th Generation Intel processors. Boasting the new Intel 1700 LGA, the Z790 GAMING PRO WIFI is perfect for both daily users and performance enthusiasts and is filled with the latest technologies including PCIe 4.0, DDR5 support, huge storage options with 3x M.2 slots (PCIe 4.0 x4), USB 3.2 Gen2x2 Type-C connectivity, Core & Memory boosts, extended heatsink design, M.2 thermal solution, Ez debug, Frozr AI cooling and a fully comprehensive rear I/O. These features combined deliver an efficient and productive experience, optimised for professional workflows. If your looking to take your productivity to the next level, do it with MSI PRO series motherboards.Unleash and sustain the maximum performance with a VRM design built with a total of 14+1+1 power design. Combining dual power connectors and exclusive Core Boost technology, Z790 GAMING PRO WIFI is ready for the challenge of high-end processors.MSI brand new MSI Center unifies a suite of MSI software utilities into a single centralised application. Take control of advanced motherboards features and unleash endless possibilities with Fan Center, System Diagnosis, Profile Settings and much more.A huge step of DDR performance enhancement with the latest DDR5 memory. Combines with dedicated SMT welding process and MSI Memory Boost technology, Z790 GAMING PRO WIFI is ready to deliver the world class memory performance.Doubling over the previous generation, the bandwidth of a x16 interface can reach 64GB/s. Featuring reinforced, heavy soldered connections, this motherboard can support the weight of heavy graphics cards.
