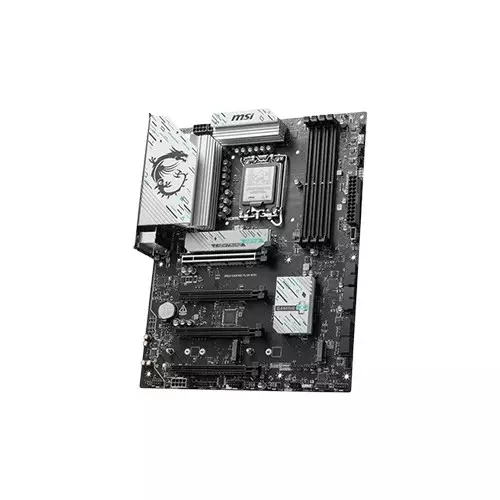

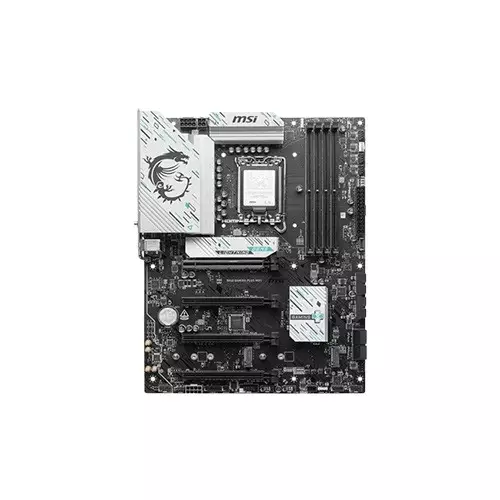

MSI B860 GAMING PLUS Wi-Fi 7 DDR5 LGA1851 ATX Motherboard
MSI B860 GAMING PLUS Wi-Fi 7 DDR5 LGA1851 ATX Motherboard MSI B860 GAMING PLUS Wi-Fi 7 DDR5 LGA1851 ATX Motherboard - 1 MSI B860 GAMING PLUS Wi-Fi 7 DDR5 LGA1851 ATX Motherboard - 2 MSI B860 GAMING PLUS Wi-Fi 7 DDR5 LGA1851 ATX Motherboard - 3

MSI B860 GAMING PLUS Wi-Fi 7 DDR5 LGA1851 ATX Motherboard

0 Reviews
Stock : In Stock
PID : P0402506486
Brand : MSI
Model : B860 GAMING PLUS Wi-Fi 7
Warranty : 3 years
  • Chipset - Intel B860
  • Sockets Supported - LGA1851
  • Memory Slot - 4
  • Memory Max. - 256GB

    • 🎮 FREE LOGITECH F310 WITH PC BUILD

    Product Pricing

    Discount Price

    ৳26,700 ৳27,500
    + Available Payment Method

    EMI Start From*

    ৳940

    PRODUCT SPECIFICATIONS

    Processor

    Supported CPU Supports Intel Core Ultra Processors (Series 2)

    Mainboard

    Chipset INTEL B860

    Memory

    Memory 4x DDR5 UDIMM,
    Maximum Memory Capacity 256GB

    Memory Support 8600 - 6400 (OC)
    MT/s / 6400 - 4800 (JEDEC) MT/s

    Max. overclocking frequency:

    • 1DPC 1R Max speed up to 8600+ MT/s

    • 1DPC 2R Max speed up to 7200+ MT/s

    • 2DPC 1R Max speed up to 4800+ MT/s

    • 2DPC 2R Max speed up to 4800+ MT/s

    Supports Intel® POR Speed and JEDEC Speed

    Supports Memory Overclocking and Intel® XMP 3.0

    Supports Dual-Controller Dual-Channel mode

    Supports Non-ECC, Un-buffered memory

    Supports CUDIMM

    Storage

    Storage 3x M.2

    M.2_1 Source (From CPU) supports up to
    PCIe 5.0 x4, supports 2280/2260 devices

    M.2_2 Source (From Chipset) supports up to
    PCIe 4.0 x4, supports 2280/2260/2242 devices

    M.2_3 Source (From Chipset) supports up to
    PCIe 4.0 x2, supports 2280/2260 devices

    4x SATA 6G

    Display

    Display 1x DisplayPort

    Support DisplayPort 1.4,

    maximum resolution of 4K 60Hz

    1x Type-C DisplayPort

    Thunderbolt 4 port, supporting DisplayPort 2.1

    with UHBR20 over USB Type-C,

    with a maximum resolution of 4K120Hz / 8K60Hz

    Networking & Connectivity

    LAN Realtek 8126 5Gbps LAN
    WiFi Intel Wi-Fi 7

    The Wireless module is

    pre-installed in the M.2 (Key-E) slot

    Supports MU-MIMO TX/RX,

    2.4GHz / 5GHz / 6GHz* (320MHz) up to 5.8Gbps

    Supports 802.11 a/ b/ g/ n/ ac/ ax/ be

    Audio & Microphone

    Audio Realtek ALC897 Codec

    7.1-Channel High Definition Audio

    Ports

    I/O Port 1x Thunderbolt5 card connector(JTBT5, support RTD3)

    1x Power Connector(ATX_PWR)

    2x Power Connector(CPU_PWR)

    1x Power Connector(PCIE_PWR 8pin)

    1x CPU Fan

    1x Combo Fan (Pump_Sys Fan)

    3x System Fan

    2x Front Panel (JFP)

    1x Chassis Intrusion (JCI)

    1x Front Audio (JAUD)

    1x Com Port (JCOM)

    1x Tuning Controller connector(JDASH)

    2x Addressable V2 RGB LED connector (JARGB_V2)

    1x RGB LED connector(JRGB)

    1x TPM pin header(Support TPM 2.0)

    4x USB 2.0 ports

    4x USB 5Gbps Type A ports

    1x USB 10Gbps Type C ports
    PCI Card Slot 4x PCI-E x16 slot

    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

    PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

    PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

    PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
    Slots 4x PCI-E x16 slot

    PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)

    PCI_E2 Gen PCIe 4.0 supports up to x1 (From Chipset)

    PCI_E3 Gen PCIe 4.0 supports up to x1 (From Chipset)

    PCI_E4 Gen PCIe 4.0 supports up to x4 (From Chipset)
    USB 2x USB 2.0 (Rear)

    4x USB 2.0 (Front)

    2x USB 5Gbps Type A (Rear)

    1x USB 5Gbps Type C (Rear)

    4x USB 5Gbps Type A (Front)

    1x USB 10Gbps Type A (Rear)

    1x USB 10Gbps Type C (Front)
    HDMI 1x HDMI

    Support HDMI 2.1,

    maximum resolution of 4K 60Hz

    Physical Specification

    Color Black
    Form Factor ATX

    Technical Info

    Model B860 GAMING PLUS Wi-Fi 7
    Supported Sockets LGA 1851

    Warranty Information

    Warranty 3 years

    PRODUCT DESCRIPTION

    MSI B860 GAMING PLUS Wi-Fi 7 DDR5 LGA1851 ATX Motherboard in Bangladesh

    MSI B860 GAMING PLUS Wi-Fi 7 DDR5 LGA1851 ATX Motherboard is a high-performance motherboard designed for gamers and power users, now available at Tech Land BD in Bangladesh. Built to support the latest Intel Core Ultra Processors (Series 2) on the LGA 1851 socket, this motherboard is equipped with the Intel B860 chipset, ensuring top-tier performance and stability. It features four DDR5 UDIMM slots supporting up to 256GB of memory with speeds ranging from 4800 MT/s (JEDEC) to 8600 MT/s (overclocked), along with Intel® XMP 3.0 support for enhanced memory performance. Storage options are abundant, with three M.2 slots (one PCIe 5.0 x4 and two PCIe 4.0 x4/x2) and four SATA 6G ports. The motherboard also boasts cutting-edge connectivity, including Intel Wi-Fi 7 with speeds up to 5.8Gbps, a Realtek 8126 5Gbps LAN port, and Thunderbolt 4 support via a USB Type-C port for ultra-fast data transfer and display output up to 8K 60Hz. Audio is handled by the Realtek ALC897 codec, delivering 7.1-channel high-definition sound. With multiple PCIe slots, USB ports (including USB 10Gbps), and RGB lighting support, this motherboard is perfect for building a high-end gaming or productivity PC. Backed by a 3-year warranty, the MSI B860 GAMING PLUS Wi-Fi 7 ensures reliability and future-proofing for your system. Visit Tech Land BD to purchase this powerhouse motherboard and elevate your computing experience.

    What processors are compatible with the MSI B860 GAMING PLUS Wi-Fi 7 motherboard?

    The motherboard supports Intel Core Ultra Processors (Series 2) and is designed for the LGA 1851 socket.


    What type of memory does this motherboard support, and what is its maximum capacity?

    It supports DDR5 UDIMM memory with a maximum capacity of 256GB and speeds ranging from 4800 MT/s (JEDEC) to 8600 MT/s (overclocked).


    Does the motherboard support Wi-Fi 7, and what are its networking capabilities?

    Yes, it features Intel Wi-Fi 7 with support for 2.4GHz, 5GHz, and 6GHz bands, offering speeds up to 5.8Gbps, along with a Realtek 8126 5Gbps LAN port
