MSI PRO H610M-E DDR4 12TH/13TH GEN MOTHERBOARD

MSI PRO H610M-E DDR4 12TH/13TH GEN MOTHERBOARD

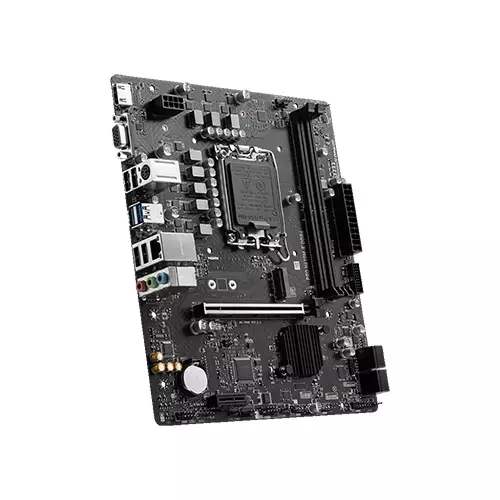

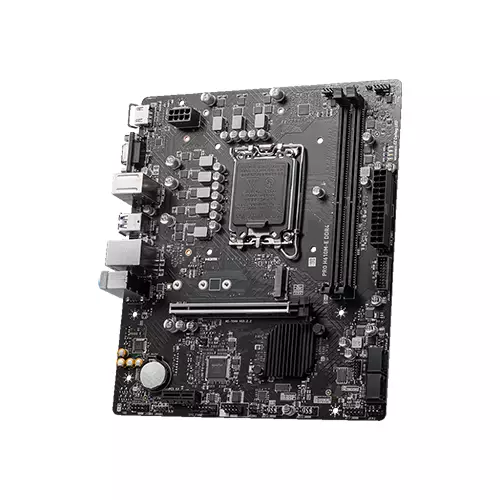

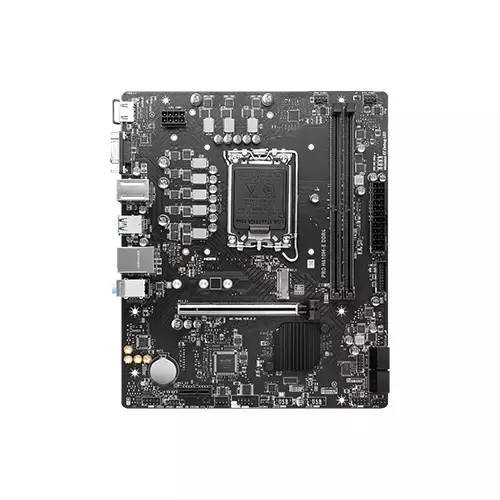

MSI PRO H610M-E DDR4 12th/13th Gen Motherboard. The MSI motherboard features support for 12th/ 13th Gen Intel® Core™ Processors, Pentium® Gold, and Celeron® Processors, with a processor socket LGA1700. It includes the Intel® H610 Chipset and 2x DDR4 memory slots, supporting up to 64GB of memory. The motherboard features a PCIe x16 slot (From CPU), supporting up to PCIe 4.0 x16, and a PCIe x1 slot (From H610 chipset), supporting PCIe 3.0 x1. Onboard graphics include 1x HDMI™ 1.4 with HDR port, supporting a maximum resolution of 4K 30Hz and 1x VGA port, supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz. It has 4x SATA 6Gb/s ports (From H610 chipset) and 1x M.2 slot (Key M) (from CPU), supporting up to PCIe 3.0 x4 and 2242/ 2260/ 2280 storage devices. The motherboard features Realtek® ALC897 Codec and 7.1-Channel High Definition Audio, and a Realtek® RTL8111H 1Gbps LAN controller.

It has 1x 24-pin ATX main power connector and 1x 8-pin +12V power connector, and internal USB connectors such as 1x USB 3.2 Gen 1 5Gbps connector (From H610 chipset), supporting additional 2 USB 3.2 Gen 1 5Gbps ports, and 2x USB 2.0 Type-A connectors (From Hub-GL850G), supporting additional 4 USB 2.0 ports. It also features fan connectors, system connectors, and jumpers. The motherboard has a 4-pin RGB LED connector and 4x EZ Debug LED. The back panel ports include HDMI™, VGA, Keyboard/Mouse, USB 3.2 Gen 1 5Gbps Type-A, LAN port, Audio connector, and USB 2.0. It has an M-ATX form factor and measures 9.3 in. x 7.9 in. (23.6 cm x 20 cm).  Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of MSI Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
