Product Information

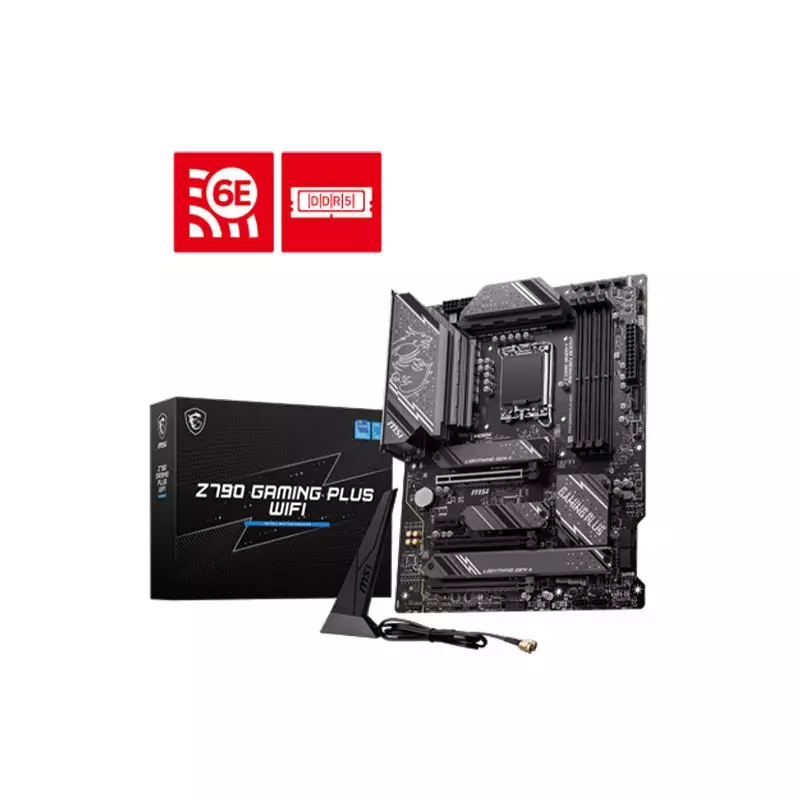

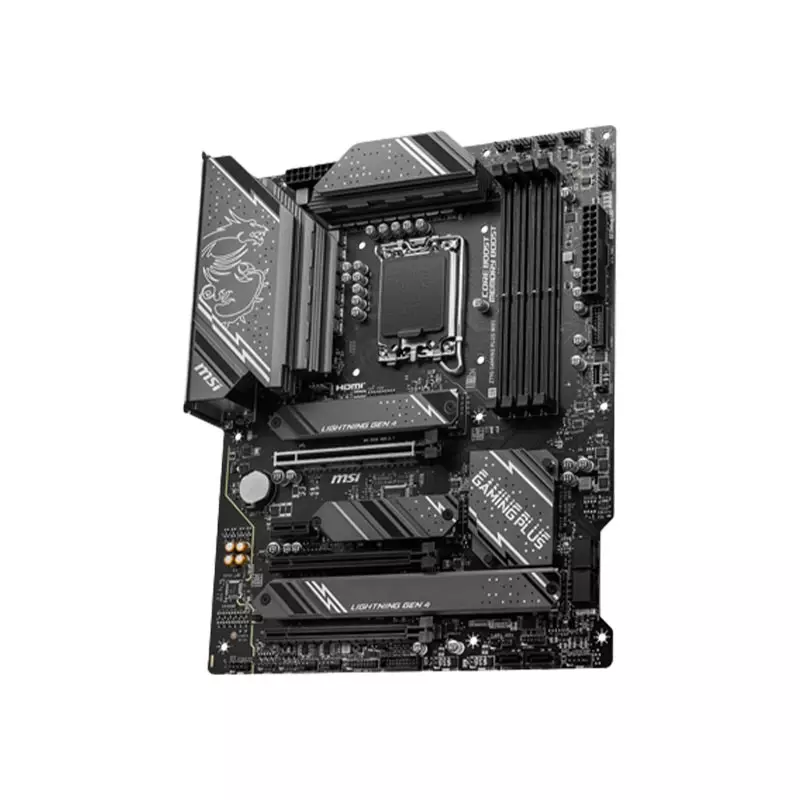

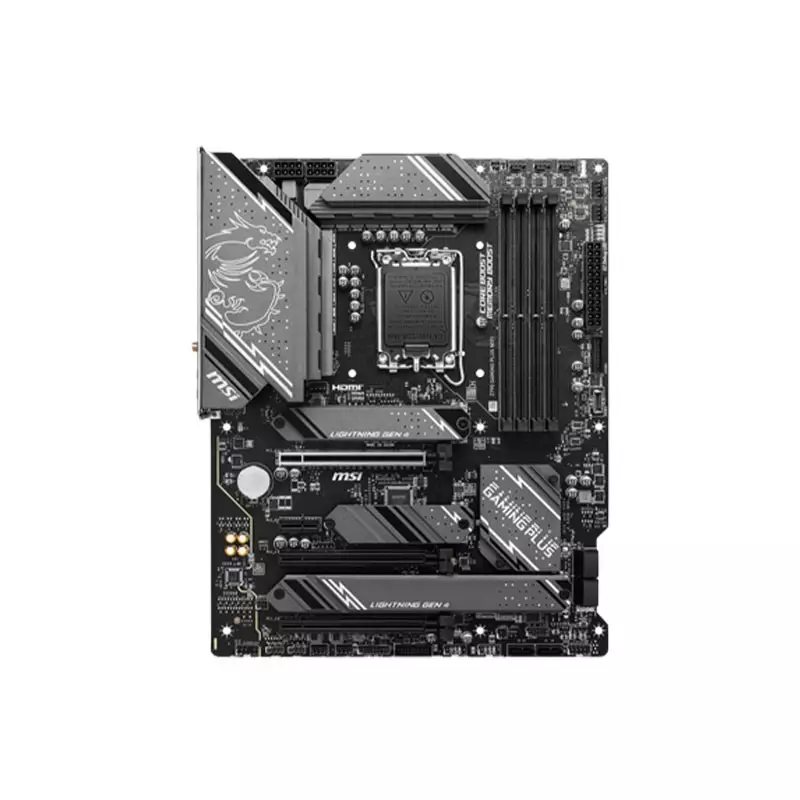

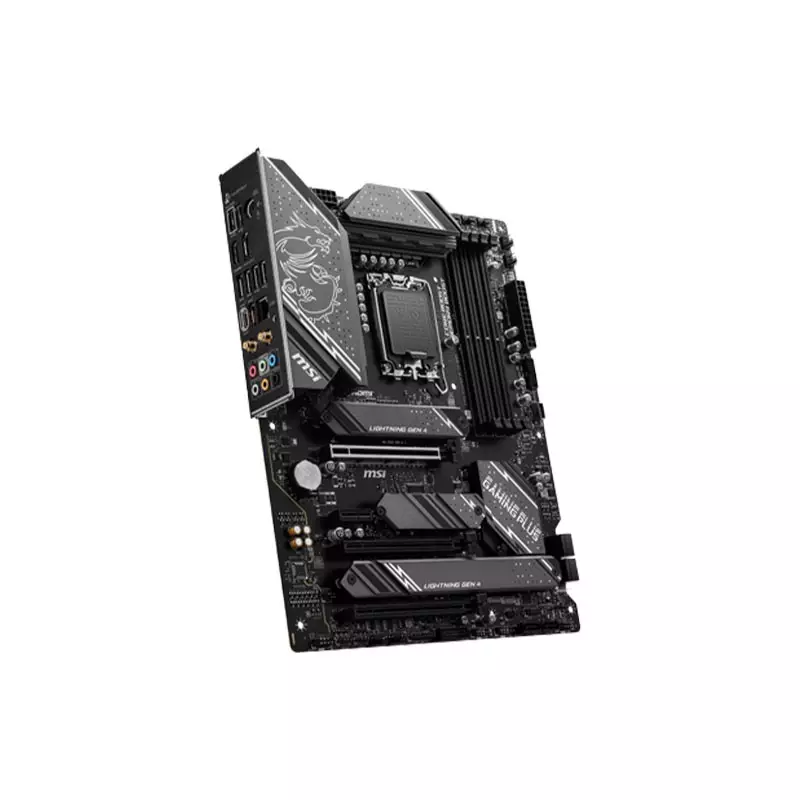

MSI Z790 GAMING PLUS WIFI DDR5 MOTHERBOARD
⌨️ PC BUILD + FREE KL-139 KEYBOARD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
LGA 1700
Mainboard
Memory
Memory Support 7200+(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7200+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Intel® XMP3.0 OC
Supports Dual-Controller Dual-Channel mode
Supports non-ECC, un-buffered memory
Storage
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G
Graphics
Support HDMI 2.1 HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio & Microphone
7.1-Channel High Definition Audio
Supports S/PDIF output
Ports
1x PCI-E x1 slot
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
PCI_E4 Gen PCIe 3.0 supports up to x1 (From Chipset)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
DisplayPort
USB 2.0
2.5G LAN Port
Wi-Fi / Bluetooth Antenna
Audio Connectors
Flash BIOS Button
USB 2.0
HDMI 2.1 Port
USB 3.2 Gen 1 5Gbps Type-A
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Special Features
Others
Physical Specification
243.84mmx304.8mm
Warranty Information
PRODUCT DESCRIPTION
MSI Z790 GAMING PLUS WIFI MOTHERBOARD PRICE IN BD
MSI Z790 Gaming Plus WiFi motherboard is a powerful and feature-rich motherboard designed for gaming and high-performance computing. With its Intel Z790 chipset, it's fully equipped to support the latest 14th, 13th, and 12th generation Intel Core processors, as well as Intel Pentium Gold and Celeron processors, making it a versatile choice for both gaming enthusiasts and professionals. One standout feature of this motherboard is its memory support. It boasts four DDR5 memory slots with a maximum capacity of 192GB. The memory support extends to impressive speeds, with overclocking options reaching up to 7200+ MHz, thanks to Intel XMP3.0 OC support. It also supports dual-controller dual-channel mode, making it ideal for tasks that require high memory bandwidth. In terms of storage and expansion, the MSI Z790 Gaming Plus WiFi doesn't disappoint. It includes four M.2 slots, two of which support PCIe 4.0 x4, and six SATA 6G ports. This allows for extensive storage options and the flexibility to configure RAID setups for both SATA and M.2 NVMe storage devices. Connectivity options are abundant with USB ports, including USB 2.0, USB 3.2 Gen1, and USB 3.2 Gen2, both Type-A and Type-C, ensuring seamless connectivity for your peripherals and external storage devices. The inclusion of Intel 2.5Gbps LAN and Intel Wi-Fi 6E provides fast and reliable networking options for online gaming and data transfer. The motherboard also comes with onboard graphics support through HDMI 2.1 and DisplayPort 1.4, offering 4K 60Hz resolution when using processors with integrated graphics Audio is delivered through the Realtek ALC897 codec, providing 7.1-channel high-definition audio with S/PDIF output for an immersive gaming and multimedia experience. With its ATX form factor, the MSI Z790 Gaming Plus WiFi is designed for mainstream PC builds and offers easy compatibility with standard PC cases. In conclusion, the MSI Z790 Gaming Plus WiFi motherboard is a top-tier option for gamers and professionals alike. Its robust hardware support, extensive storage options, fast connectivity, and impressive memory capabilities make it a go-to choice for those seeking high-performance computing and an excellent gaming experience. Whether you're a gamer, content creator, or power user, this motherboard has you covered.
