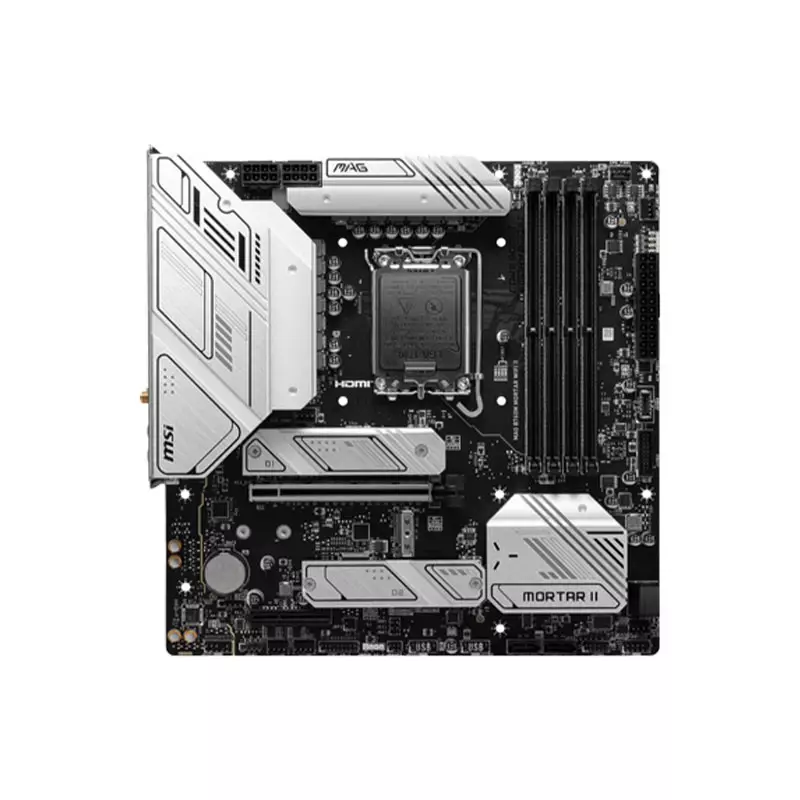

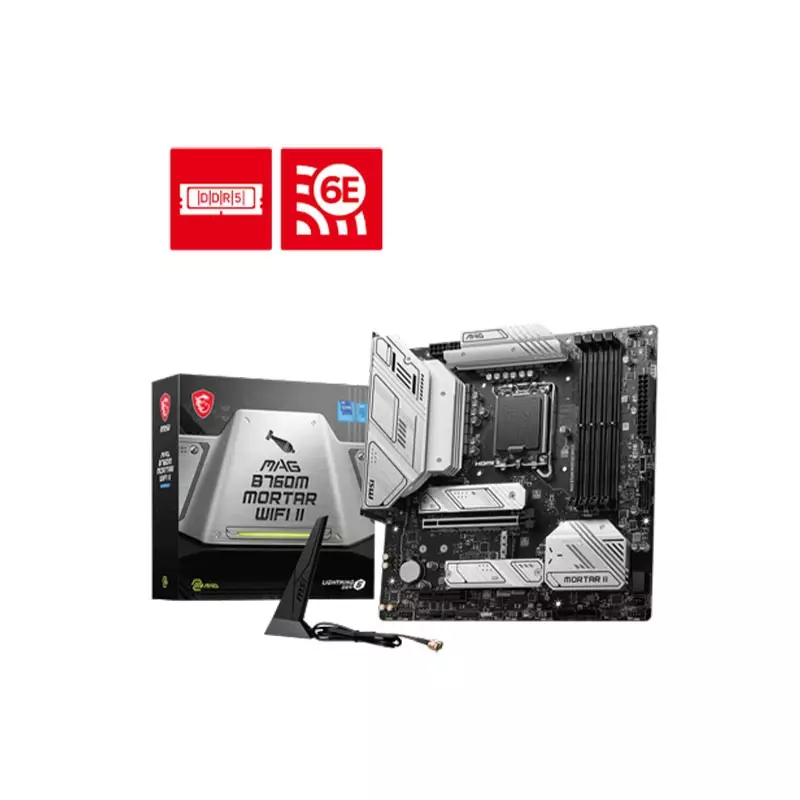

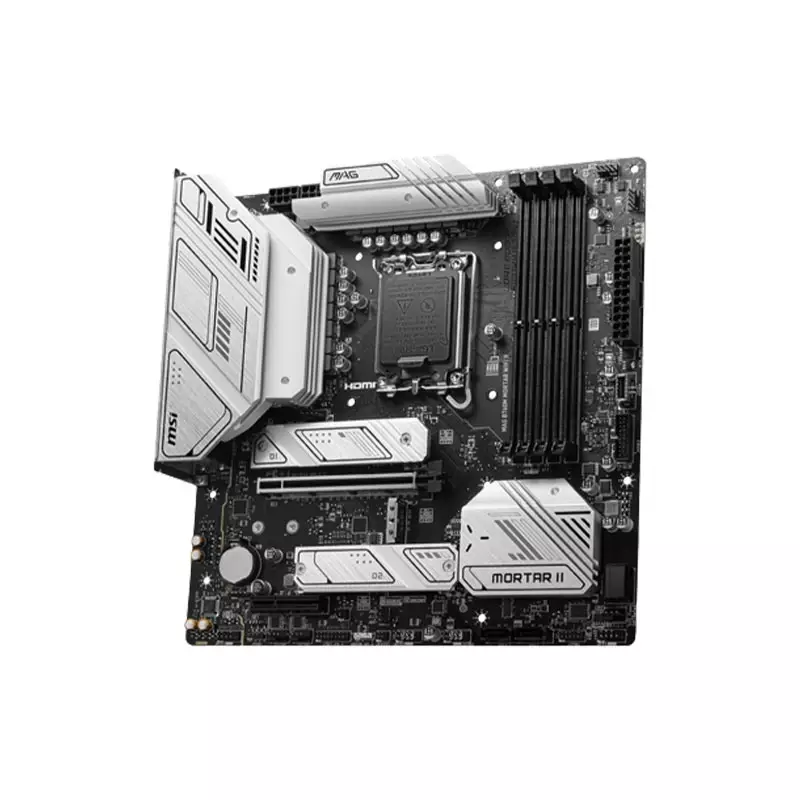

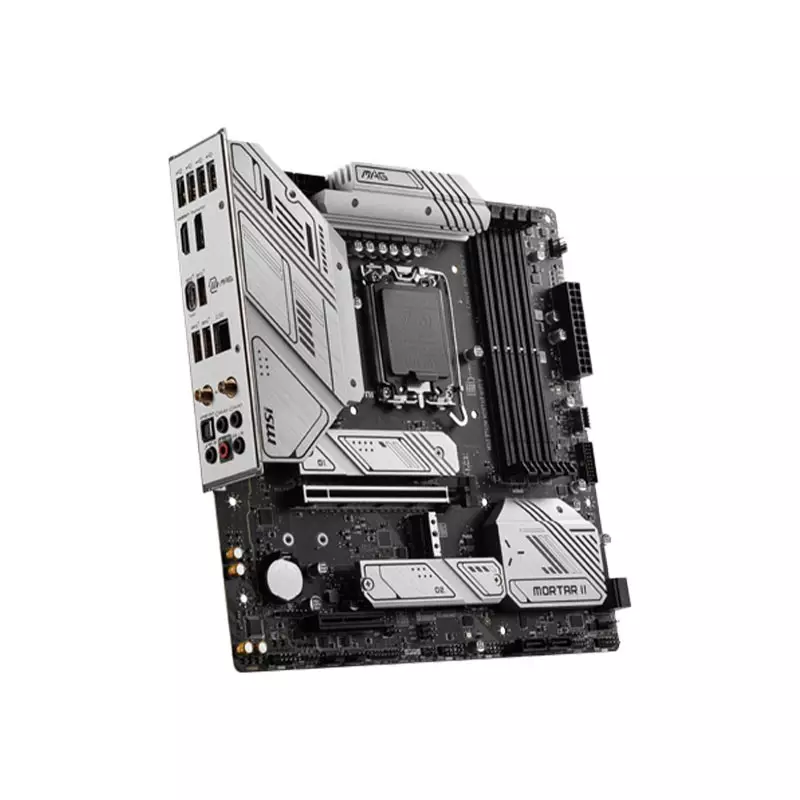

MSI MAG B760M MORTAR WIFI II DDR5 MOTHERBOARD
🎮 FREE LOGITECH F310 WITH PC BUILD
Product Pricing
EMI Start From*
PRODUCT SPECIFICATIONS
Processor
Processors, Pentium Gold and Celeron Processors
LGA1700
Mainboard
Memory
Memory Support 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(JEDEC)/ 5400(JEDEC)/ 5200(JEDEC)/ 5000(JEDEC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6600+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5600+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile
Storage
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 , supports 2280/2260 devices
M.2_3 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280 devices
4x SATA 6G
Graphics
Support HDMITM 2.1 with HDR, maximum resolution of 4K 60Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
Networking & Connectivity
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports MU-MIMO TX/RX, 2.4GHz / 5GHz / 6GHz* (160MHz) up to 2.4Gbps
Supports 802.11 a/ b/ g/ n/ ac/ ax
Audio & Microphone
7.1-Channel USB High Performance Audio
Supports S/PDIF output
Ports
Supports x16/x4
PCI_E1 Gen PCIe 5.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x4 (From Chipset)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
4x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Tuning Controller connector(JDASH)
2x Addressable V2 RGB LED connector (JARGB_V2)
1x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
2x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen2 Type C ports
1x USB4 card connector (JTBT_U4_1, supports RTD3)
USB 3.2 Gen 2 10Gbps Type-A
2.5G LAN Port
Wi-Fi / Bluetooth
HD Audio Connectors
USB 2.0
HDMI 2.1 Port
USB 3.2 Gen 2x2 20Gbps Type-C
USB 3.2 Gen 2 10Gbps Type-A
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Front)
3x USB 3.2 Gen2 Type A (Rear)
1x USB 3.2 Gen2 Type C (Front)
1x USB 3.2 Gen2x2 Type C (Rear)
Others
Physical Specification
243.84mmx243.84mm
Warranty Information
PRODUCT DESCRIPTION
MSI MAG B760M MORTAR WIFI II MOTHERBOARD PRICE IN BD
The MSI MAG B760M Mortar Max WiFi II DDR5 Motherboard: Unleash the Power of 12th and 13th Gen Intel CoreTM Processors! Discover a new realm of computing performance with the MSI MAG B760M Mortar Max WiFi II DDR5 Motherboard, powered by the advanced Intel B760 chipset. This motherboard is built to support the latest 12th and 13th Gen Intel CoreTM Processors, Pentium Gold, and Celeron Processors, utilizing the LGA1700 socket for optimal compatibility and power. With 4 DDR5 memory slots, the MSI MAG B760M Mortar Max WiFi II Motherboard offers an astonishing maximum memory capacity of 192GB. Push your system to its limits with memory support ranging from 4800 MHz to an overclocked 7000 MHz. Benefit from enhanced data transfer rates, smoother multitasking, and an overall seamless computing experience. Immerse yourself in stunning visuals with onboard graphics capabilities, including 1 HDMITM port supporting 4K 60Hz and 1 DisplayPort with a maximum resolution of 8K 60Hz*. Note that graphics specifications may vary based on your installed CPU, especially processors featuring integrated graphics. The motherboard boasts 2 PCI-E x16 slots supporting x16/x4 configurations, along with 1 PCI-E x1 slot. Enjoy cutting-edge PCIe technologies, including Gen PCIe 5.0 and Gen PCIe 4.0, to ensure lightning-fast data transfer rates and future-proof expansion capabilities. Experience high-speed storage options with 2 M.2 slots and 6 SATA 6G ports. M.2_1 supports PCIe 4.0 x4 devices, while M.2_2 supports both PCIe 4.0 x4 and SATA mode devices, accommodating various storage needs. Stay connected at blazing speeds with the Realtek 2.5Gbps LAN and Intel Wi-Fi 6E module pre-installed in the M.2 (Key-E) slot. Embrace ultra-fast wireless connections with support for MU-MIMO TX/RX and 2.4GHz, 5GHz, and 6GHz* (160MHz) up to 2.4 GHz. Seamlessly connect peripherals using a variety of USB ports, including USB 2.0, USB 3.2 Gen1, and USB 3.2 Gen2 Type A and Type C ports. Enjoy an immersive audio experience with the Realtek ALC897 Codec, offering 7.1-channel USB High-Performance Audio and S/PDIF output. Immerse yourself in your favorite games, movies, and music like never before. The motherboard features an array of internal I/O connectors, including power connectors, fan headers, front panel connectors, and more, enabling you to fine-tune and optimize your system effortlessly. Benefit from 4 EZ Debug LED indicators for quick and easy troubleshooting, ensuring a smooth and hassle-free experience. Upgrade your system with the MSI MAG B760M Mortar Max WiFi II DDR5 Motherboard and elevate your computing journey to new heights. Enjoy lightning-fast performance, exceptional graphics, and a host of features designed to meet your every need. Get ready to conquer the digital world with MSI's cutting-edge technology!Visit TechLand BD today to get your hands on the MSI MAG B760M Mortar Max WiFi II DDR5 Motherboard and unlock unparalleled performance for your PC!
