MSI PRO B760M-E DDR4 13TH GEN MOTHERBOARD

MSI PRO B760M-E DDR4 MOTHERBOARD

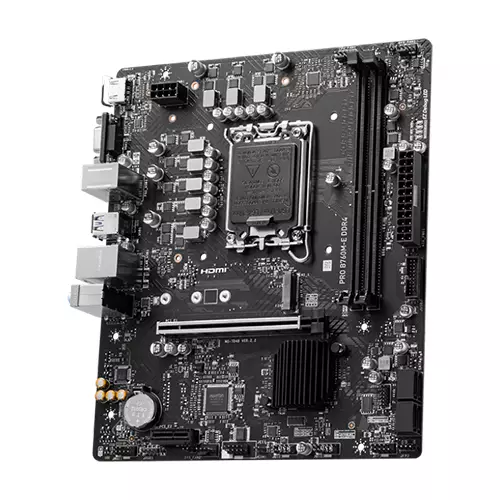

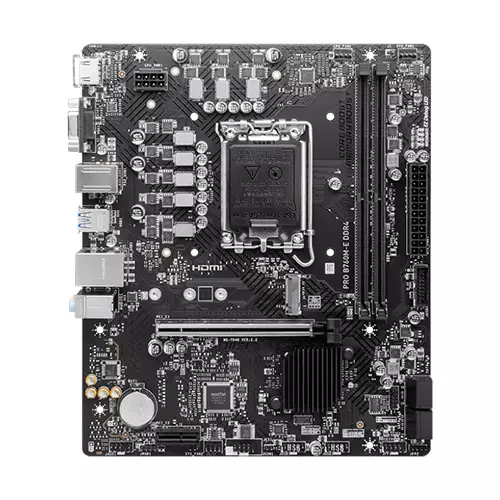

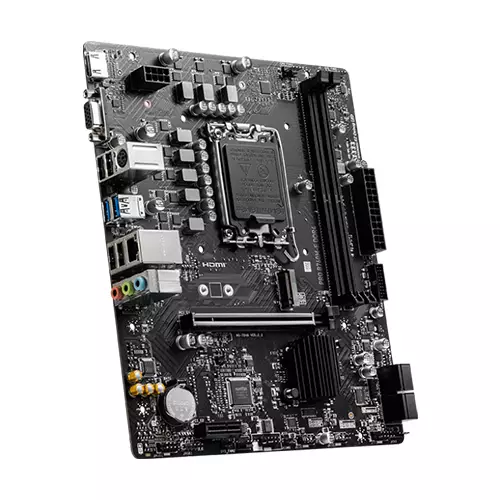

MSI PRO B760M-E DDR4 is a motherboard that supports 12th/13th Gen Intel Core Processors, Pentium Gold and Celeron Processors with LGA 1700 socket. The motherboard has a memory capacity of up to 64GB with 2 DDR4 memory slots and supports a variety of memory frequencies ranging from 2133MHz to 4800MHz (OC) including dual-channel mode and IntelExtreme Memory Profile (XMP). In terms of onboard graphics, the motherboard has 1 HDMI port and 1 VGA port, with HDMI 1.4 supporting a maximum resolution of 4K 30Hz and VGA supporting a maximum resolution of 2048x1536 50Hz, 2048x1280 60Hz, 1920x1200 60Hz. However, graphics specifications may vary depending on the CPU installed. Expansion slots include 1 PCI-E x16 slot and 1 PCI-E x1 slot. PCI_E1 Gen PCIe 4.0 supports up to (From CPU) while PCI_E2 Gen PCIe 3.0 supports up to (From Chipset). The motherboard has 1 M.2 slot that supports PCIe 4.0 x4 / SATA mode and 4 SATA 6G slots, with SATA5 being unavailable when installing M.2 SATA SSD in the M2_2 slot.

The motherboard also supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices. In terms of connectivity, the motherboard has 4 USB 2.0 (Rear) and 4 USB 2.0 (Front), 2 USB 3.2 Gen1 Type A (Rear) and 2 USB 3.2 Gen1 Type A (Front). The motherboard also features Realtek RTL8111H Gigabit LAN and Realtek® ALC897 Codec 7.1-Channel High Definition Audio. Internal I/O includes 1 Power Connector(ATX_PWR), 1 Power Connector(CPU_PWR), 1 CPU Fan, 2 System Fan, 2 Front Panel (JFP), 1 Chassis Intrusion (JCI), 1 Front Audio (JAUD), 1 Com Port (JCOM), 1 RGB LED connector(JRGB), 1 TPM pin header(Support TPM 2.0), 2 USB 2.0 ports, and 1 USB 3.2 Gen1 Type A port. The motherboard also features 4x EZ Debug LED and supports Windows 11 64-bit, Windows® 10 64-bit. The PRO B760M-E DDR4 is an mATX form factor measuring 200mmx236.16mm. Bangladesh's top retailer of computer hardware and applications is Techland BD. A hallmark of Techland BD is its top-notch client support. They have a helpful and knowledgeable crew that is always willing to help customers. The large selection of MSI Motherboard available at Techland BD is well recognized. The large selection of MSI Motherboard available at Techland BD is well recognized.
